Product Details:
Payment & Shipping Terms:
|
| Motor Power(Kw): | 3.5-15 | Running Speed(m/min): | 20 |
|---|---|---|---|
| Product Name: | 10 T Material Handling Electric Battery Powered Transfer Cart | Material: | Carbon Steel |
| Turnning Radius(mm): | 2501-5201 | Axles Distance(mm): | 2500-5200 |
| Running Speed(m/min): | 0-15 | ||
| High Light: | Electric Material Handling Cart 20T,PLC Electric Material Handling Cart,15kw Material Transfer Cart |
||
20 t Material handling Factory Electric Material Handling Cart
Introductions
PERFECT Electric Transportation Trolley are used to transport steel coils and pipes for metal industry. This Electric Railroad Vehicle are designed to be an extremely cost effective, safe and flexible load moving alternative.
The Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The Electric Railroad Vehicle is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.
Advantages
1. Running freely on the cemment floor.
2. Not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning.etc.
3. Power supply ways can be customized.
4. No damage to the cemment floor.
5. Can be customizable,such as:capacity,table size,running speed,supply power...
6. PLC system.

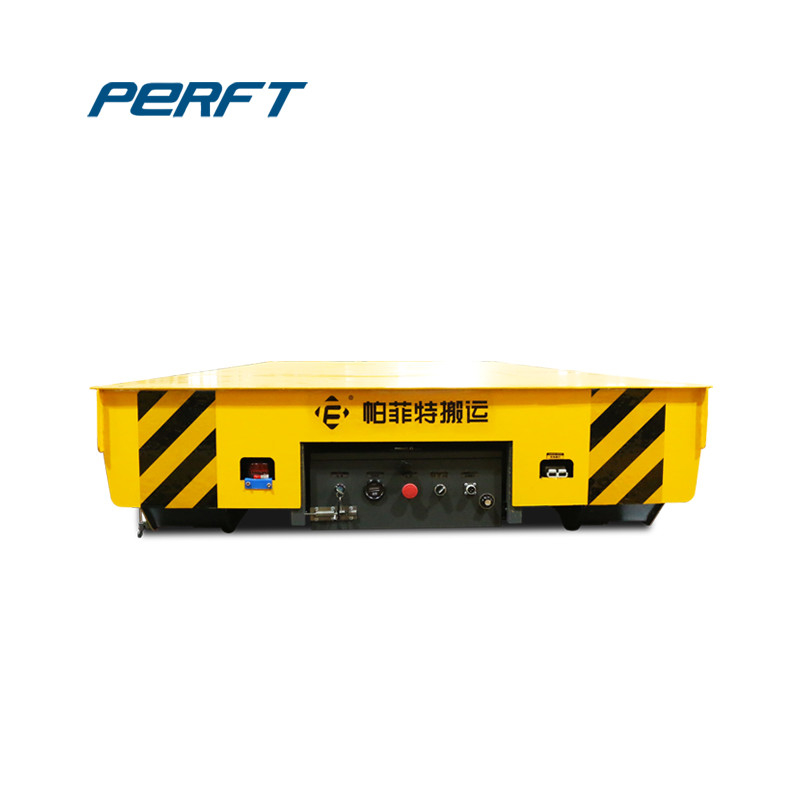

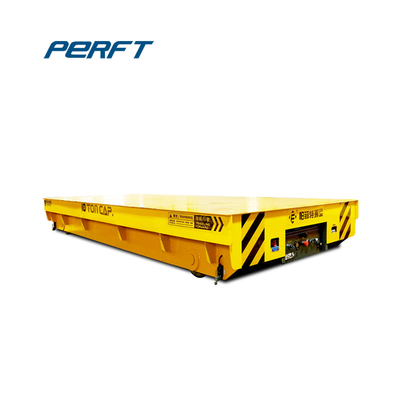

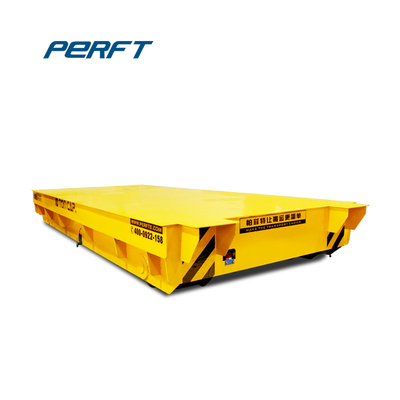

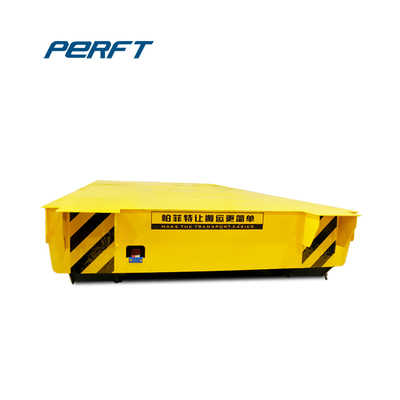

Detailed Image
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Application
PERFECT Electric Railroad Vehicle are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving heavy duty materials and equipments inside and outside the plant by electric traction and driving long distances. And also Electric Railroad Vehicle are mainly used to solve manoeuvrability problems in tight spaces.
Shipping
*For length is less than 6m, the width is less than 2.2m. Electric Railroad Equipment will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Railroad Equipment needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
