Product Details:
Payment & Shipping Terms:
|
| Motor Power(Kw): | 3.5-15 | Running Speed(m/min): | 20 |
|---|---|---|---|
| Product Name: | 10 T Material Handling Electric Battery Powered Transfer Cart | Material: | Carbon Steel |
| Turnning Radius(mm): | 2501-5201 | Axles Distance(mm): | 2500-5200 |
| Running Speed(m/min): | 0-15 | ||
| High Light: | Dumpling Pallet Transfer Trolley,Steel Industry Pallet Transfer Trolley,10T Material Handling Trolley |
||

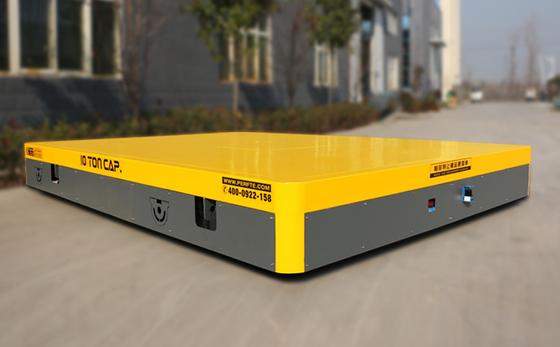

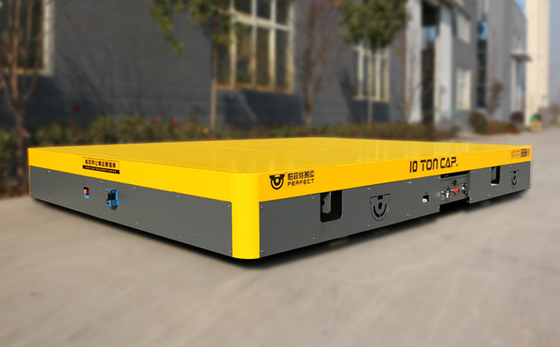

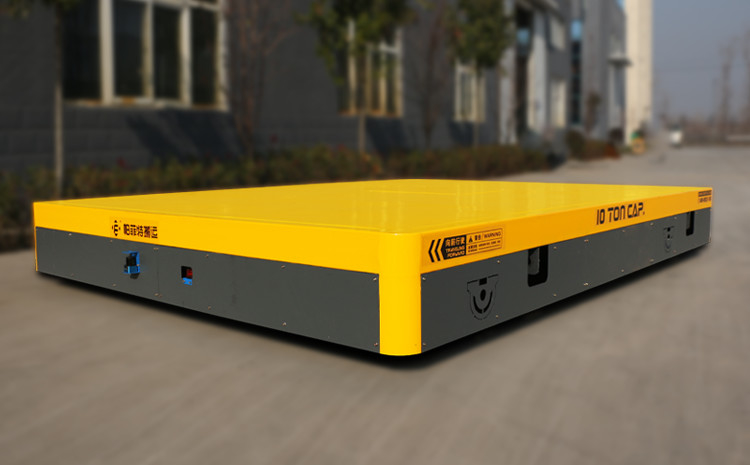

10 t Material handling Steel Industry Pallet Transport Trolley
Introduction
Our pallet transport trolley are powered by battery. It's trackless and consists of steel structure bearing frame. When the current get in the electric control system, the machine is powered to make the trolley stop, start, move forward and move backward. It can also turn around for 360 degrees without moving forward or backward. As per clients' request, we can provide all kinds of trackless transfer trolley for you according to the working environment and floor condition.
Customizations
Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.
Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design
Round corner, Hold pendant box, Lifting hole, etc.
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Application
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make the 10 t Material handling electric battery powered Transfer Cart available for linkage of several trolleys.
