| Product Name: | High Quality Electric Rail Transfer Cart Factory | Capacity: | 1-300T |
|---|---|---|---|
| Dimension: | Customized As Practical Needs | Color: | Customized |
| Application: | Industrial Filed | Feature: | Easy Operation |
| High Light: | 300Ton Steel Wheel Transfer Wagon,SGS Transfer Wagon,20m/min Electric Rail Transfer Cart |
||

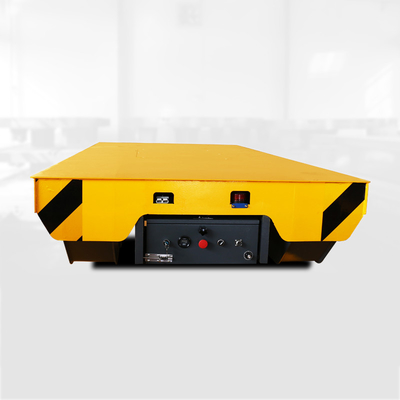

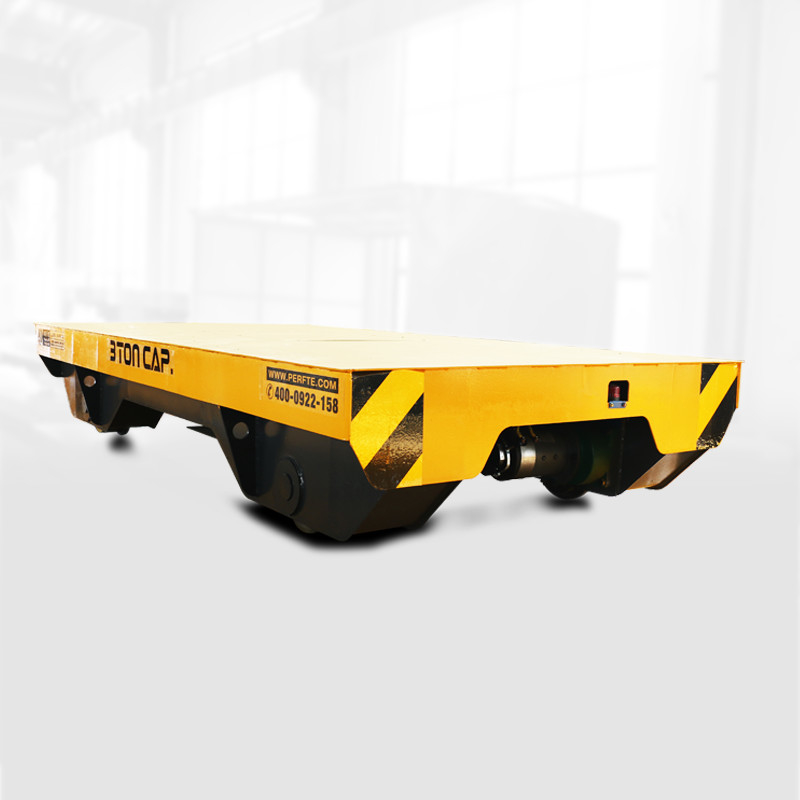

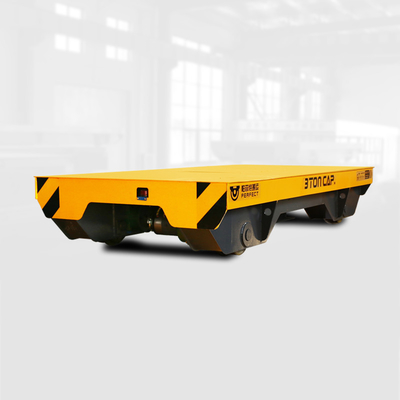

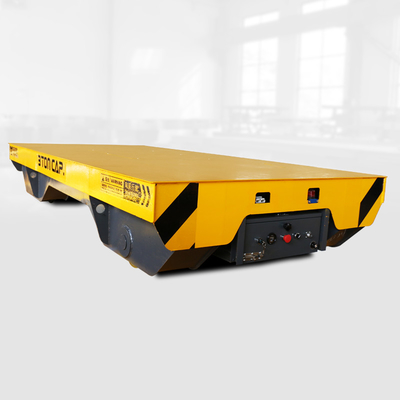

This kind of rail transport trolley can be used both on the 'S' and arc-shaped railways
It also can be used in the ferry condition and flammable, explosive environment
The rail transport trolley has the advantages of stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime
Compared with the BJT and BDG types, the BXC series are more safe and flexible.
Safe and convenient operation for there is no wire outside the car
|
Model
|
BXC-2T
|
BXC-5T
|
BXC-20T
|
BXC-50T
|
BXC-100T
|
|
Rated Load(T)
|
2
|
5
|
20
|
50
|
100
|
|
Length(mm)
|
2000
|
3500
|
4000
|
5500
|
6500
|
|
Width(mm)
|
1500
|
2000
|
2200
|
2500
|
2800
|
|
Height(mm)
|
450
|
500
|
550
|
650
|
900
|
|
Wheel Base(mm)
|
1200
|
2500
|
2800
|
4200
|
4900
|
|
Rail Inner Gauge(mm)
|
1200
|
1435
|
2000
|
||
|
Wheel Diameter(mm)
|
270
|
300
|
350
|
500
|
600(heavy)
|
|
Ground Clearance(mm)
|
50
|
75
|
|||
|
Running Speed(m/min)
|
0-25
|
0-20
|
|||
|
Motor Power(Kw)
|
1
|
1.2
|
2.2
|
5
|
10
|
|
Max Wheel Load(KN)
|
14.4
|
25.8
|
77.7
|
174
|
343.8
|
|
Reference Weight(t)
|
2.8
|
3.6
|
5.9
|
8
|
14.6
|
|
Recommedded Rail Model
|
P15
|
P18
|
P24
|
P43
|
QU100
|
