Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cable Reel Powered Rail Transfer Car With Remote And Hand Control | Power Supply Mode: | Cable Reels / Cable Drum |
|---|---|---|---|
| Operation Mode: | Pendant And Remote Controller | Cart Frame: | Q235B |
| Certificates: | CE ISO SGS | Rated Load: | 2-150t |
| Running Speed: | 0-30m/min | Brand Name: | Perfte |
| High Light: | battery transfer carriage,battery powered cart |
||

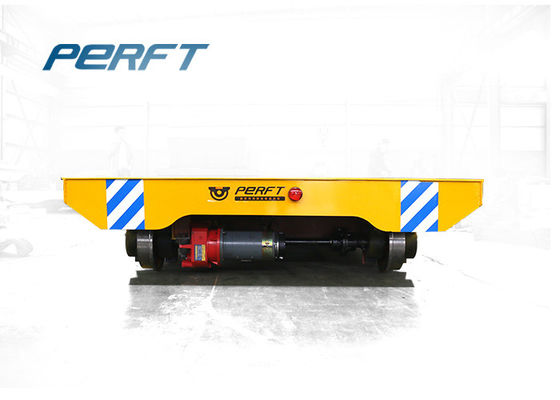

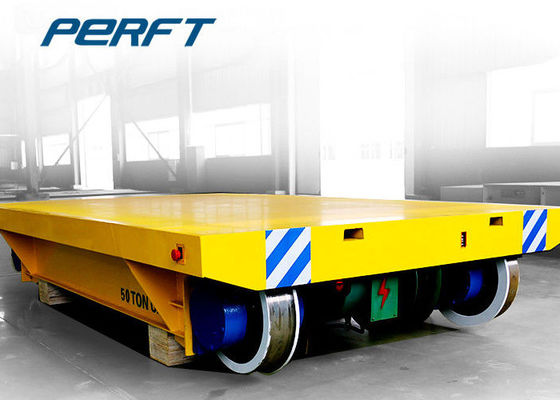

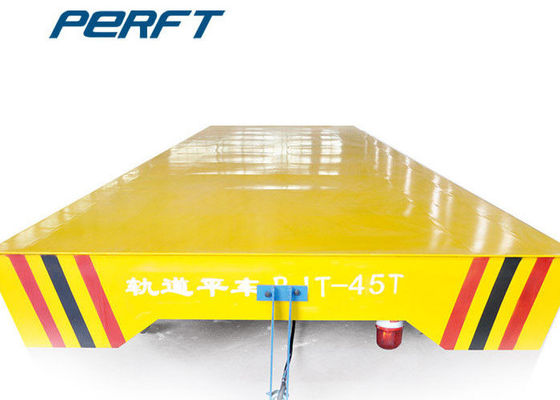

Cable Reel Powered Rail Transfer Car with Remote and Hand Control
BJT series Rail Transfer Car is powered by the cable reels. The Rail Car get power AC 380V through the device of cable reel which is installed at the bottom of the Transfer Trolley. The motor is controlled by the power through the AC control system. We use this principle to operate the Transfer Cars, such as ,start, stop, go forward, backward and so on. The operation system is low voltage 36V.
Main Components in Cable Reel Powered Rail Transfer Car with Remote and Hand Control
Advantages of Cable Reel Powered Rail Transfer Car with Remote and Hand Control
1. Low cost and energy-saving
2. Easy for operation
3. No limit of running time
4. The load capacity is up to 300 tons
5. High-frequency use
6. No strict requirement for the railways
7.Simple structure and low price
8.Used in high-temperature and anti-explosion condition
Technical Parameters of Cable Reel Powered Rail Transfer Car with Remote and Hand Control
| Model | BJT-2t | BJT-5t | BJT-10t | BJT-16t | BJT-20t | BJT-25t | BJT-30t | BJT-40t | BJT-50t | BJT-63t | BJT-80t | BJT-100t | BJT-150t |
| Rate Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2500 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 44 | 4 | 4 | 4 | 4 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-25 | 20 | 20 | 20 | 18 |
| Motor Power(Kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
Application and Usage of Cable Reel Powered Rail Transfer Car with Remote and Hand Control
This series Cable Reel Powered Rail Transfer Car can be used in the bad environment, for example, high-temperature and anti-explosion condition. With its simple structure and low price, this series are more often used transfer materials from one workshop to another.
