Electric Heavy Duty Battery Power Trackless Transfer Cart

Electric Heavy Duty Battery Power Trackless Transfer Cart
Electric Heavy Duty Battery Power Trackless Transfer Cart
video play

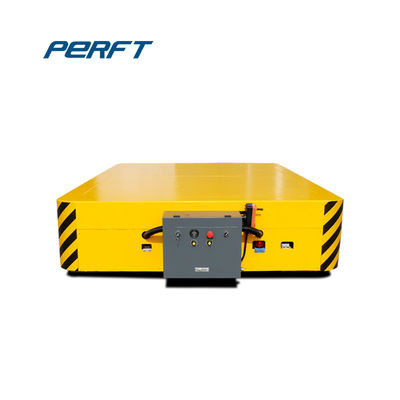

Large Image :  Electric Heavy Duty Battery Power Trackless Transfer Cart

Product Details:
Place of Origin: China(mainland)
Brand Name: trackless tunnel transport vehicle
Certification: CE ISO SGS
Model Number: BWP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3200~7200 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 sets month
Detailed Product Description
Product Name: Electric Trackless Tunnel Transport Vehicle For Material Handling Warranty: 12 Months
Color: Customized Application: Industrial Filed
Feature: Easy Operation
High Light:

electric trackless transfer cart

,

heavy duty trackless transfer cart

,

battery power trackless transfer cart



Electric Trackless heavy duty Battery power Factory Material handing cart






Description

It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. Thiselectric trackless tunnel transport vehicle has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay.

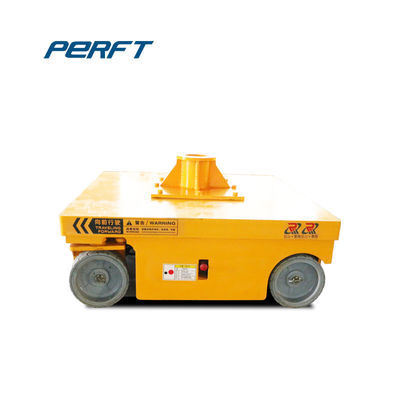

Electric Heavy Duty Battery Power Trackless Transfer Cart 0



Technical Parameter

Model BWP-5t BWP-20t BWP-30t BWP-40t BWP-50t
Rated Load(t) 5 20 30 40 50
Max. Wheel Load (t) 2.8 5.6 7.7 10 12
Ground Requirement Cement floor or Steel plate ground
Ground Clearance(mm) 50 50 50 50 50
Table Size (mm) 3000 X 2000 4500 X 2200 5000 X 2200 5500 X 2300 6000 X 2300
Height (mm) 450 600 650 700 700
Wheel Base (mm) 1500 1700 1700 1800 1800
Axles Distance (mm) 2500 3900 4300 4800 5200
Turning Radius (mm) 2501 3901 4301 4801 5201
Turning Structure Mechanical
Motor Power (KW) 3.5 7 10 12 15
Wheel Diameter (mm) 300 (4) 400 (4) 400 (6) 500 (6) 500 (6)
Wheel Material ZG55+hydropurture
Running Speed (m/min) 0-15 0-12
Brake Principle Electric magnetic brake
Operation Method Raido Remote Control
Battery Maintainance Free of maintainance
Charger's Installation Installed on cart Split-type
Cart Color Customized
Charger's Function Automatically cut off the power when the battery is fully charged
Radar Control 3-0.3 m, Automatic stop for obstacles
Warning Equipment Horn and Flash Light
Other Functions Turning light, night light and power display



Promise For Customer
  • Our commitment: The load bearing safety factor of the Motorized trackless cart is no less than 120%.
  • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
  • 16 hours engineering service and 24 hours internet service for our customers.
  • During the warranty period, if our motorized trackless transfer cart for cargoes transport trolley can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
  • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our customer

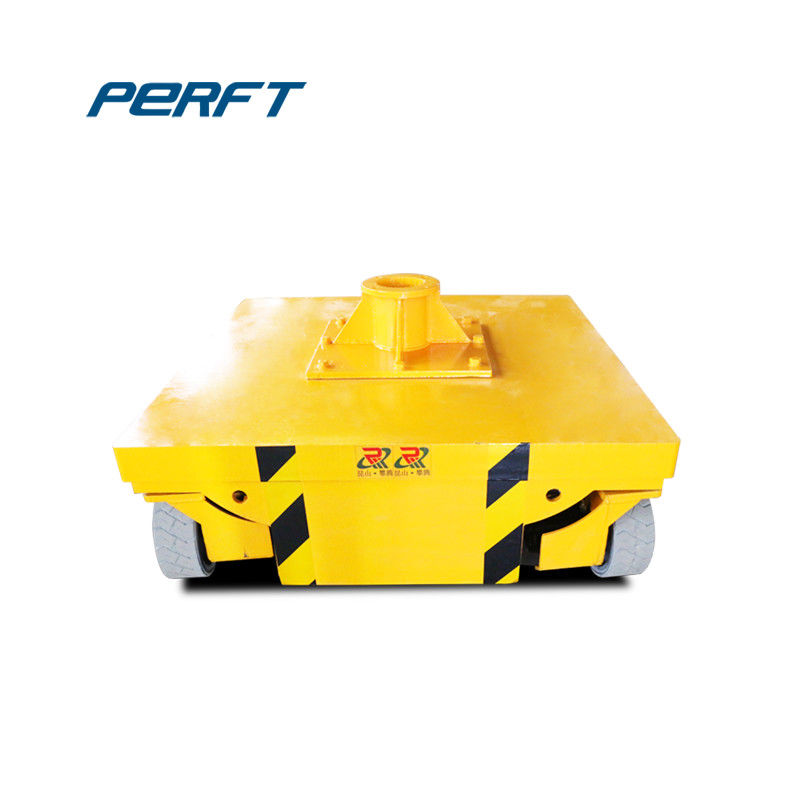

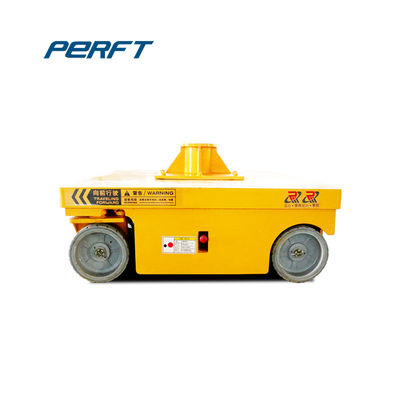

  • Electric Heavy Duty Battery Power Trackless Transfer Cart 1Electric Heavy Duty Battery Power Trackless Transfer Cart 2
