Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cable Reel Powered Rail Transfer Car With Remote And Hand Control | Power Supply Mode: | Cable Reels / Cable Drum |
|---|---|---|---|
| Operation Mode: | Pendant And Remote Controller | Cart Frame: | Q235B |
| Certificates: | CE ISO SGS | Rated Load: | 2-150t |
| Running Speed: | 0-30m/min | Brand Name: | Perfte |
| High Light: | 30m/min Rail Transfer Car,Flatbed Rail Transfer Car,Flatbed Rail Transfer Cart |
||

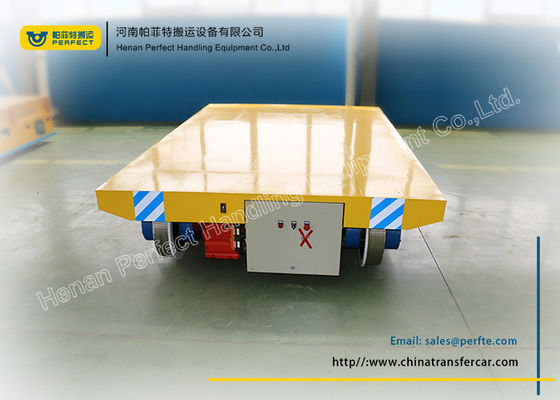

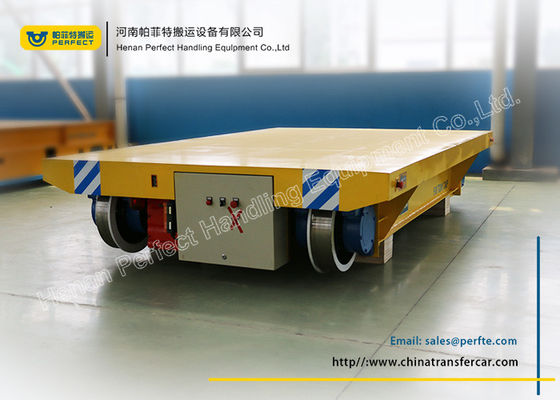

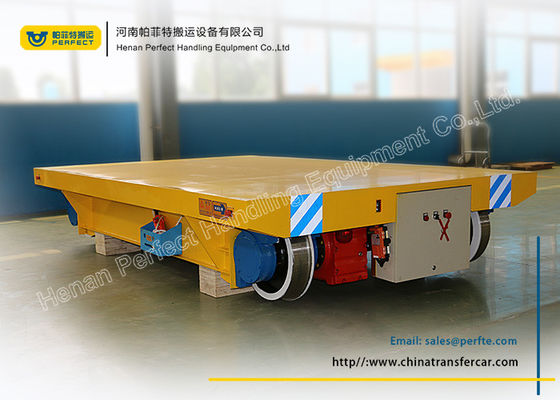

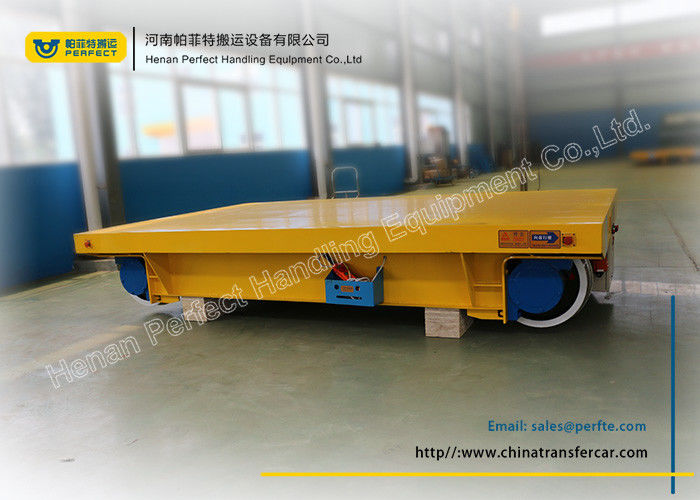

Customization Electric Cable Reel Powered Rail Transfer Car with Remote Control
Product Descraptions
This series Rail Transfer Car is powered by the cable reels. The Rail Car get power AC 380V through the device of cable reel which is installed at the bottom of the Transfer Trolley. The motor is controlled by the power through the AC control system. We use this principle to operate the Transfer Cars, such as ,start, stop, go forward, backward and so on. The operation system is low voltage 36V.
Main Components
Why choose this serise cart
1. Low cost and energy-saving
2. Easy for operation
3. No limit of running time
4. The load capacity is up to 300 tons
5. High-frequency use
6. No strict requirement for the railways
7.Simple structure and low price
8.Used in high-temperature and anti-explosion condition
Technical Parameters
| Model | BJT-2t | BJT-5t | BJT-10t | BJT-16t | BJT-20t | BJT-25t | BJT-30t | BJT-40t | BJT-50t | BJT-63t | BJT-80t | BJT-100t | BJT-150t |
| Rate Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2500 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 44 | 4 | 4 | 4 | 4 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-25 | 20 | 20 | 20 | 18 |
| Motor Power(Kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running Distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
Our team
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
