Product Details:
Payment & Shipping Terms:
|
| Product Name: | Die Transfer Cart | Capacity: | 1-50T |
|---|---|---|---|
| Color: | Customized | Running Speed: | 0-20m/min |
| Certificates: | CE ISO SGS | ||
| High Light: | 50t battery transfer cart,pallet battery transfer cart,50t motorized transfer cart |
||

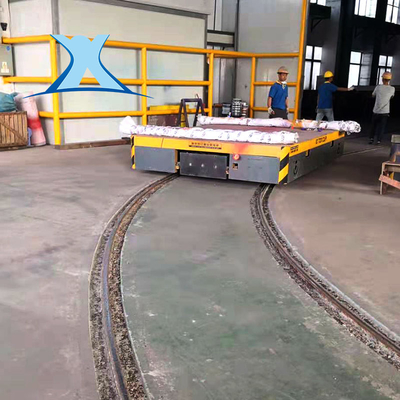

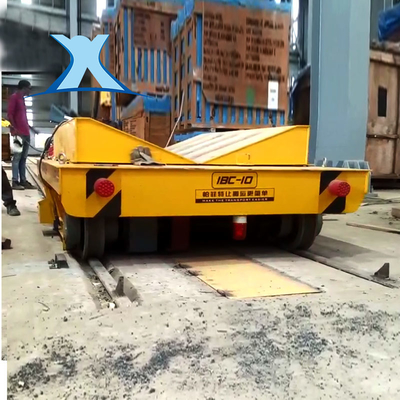

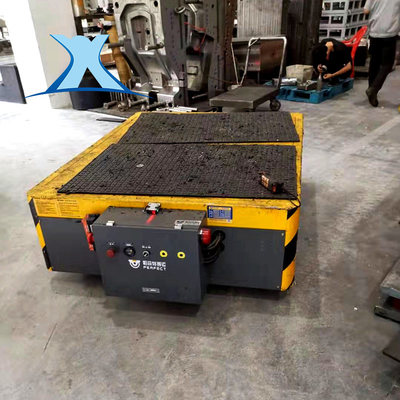

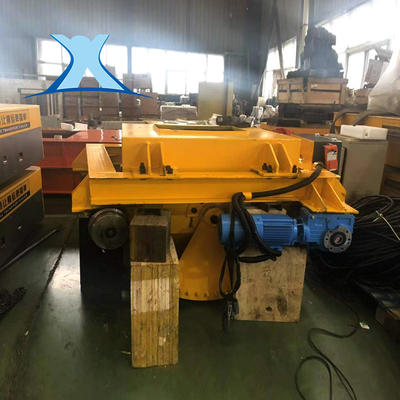

Introductions for cart
Our battery powered coil trolley are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.
Parameter Table
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Advantages
Low noise
