Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Henan, China (Mainland) | Product Name: | Special Discount Customization Powerless Transport Cart Use For Warehouse 1-100T Material Tranfer |
|---|---|---|---|
| Color: | Customized | Application: | Industrial Filed |
| Feature: | Easy Operation | ||
| High Light: | 1t material transfer cart,customization powerless material transfer cart,100t material transfer trolley |
||

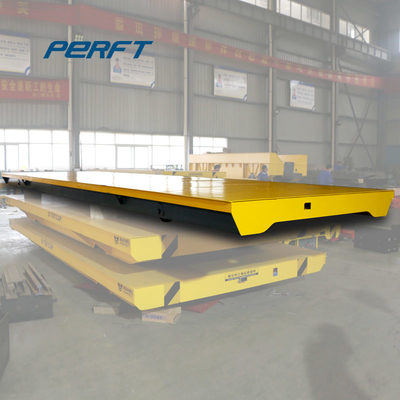

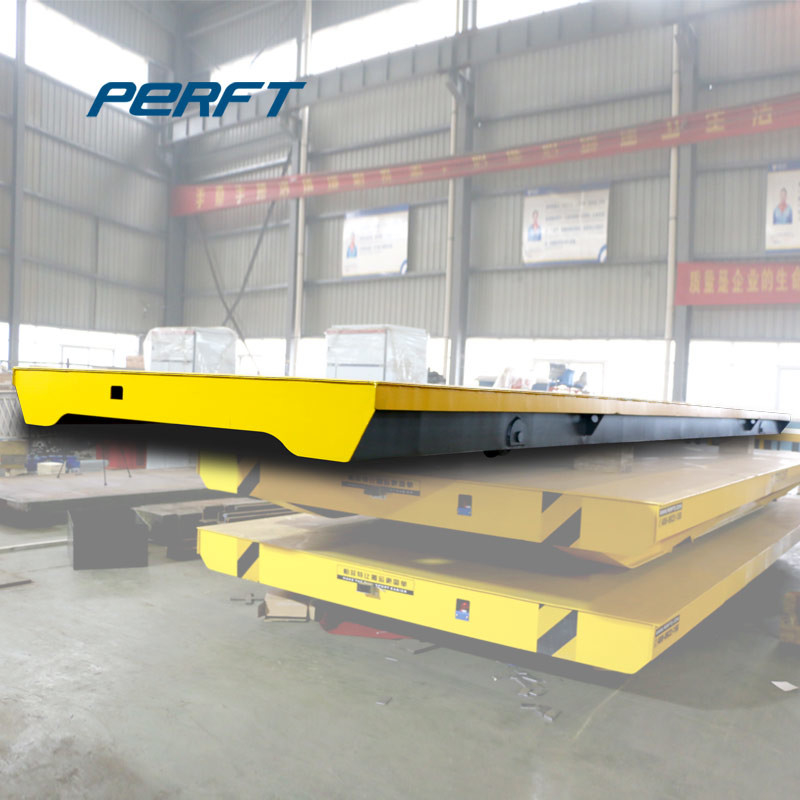

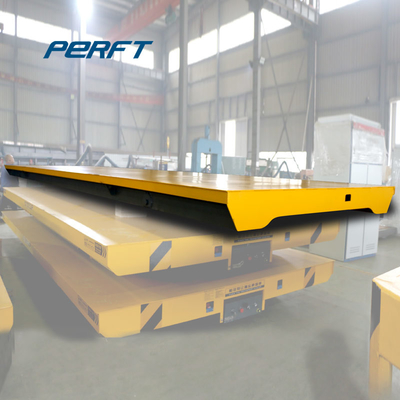

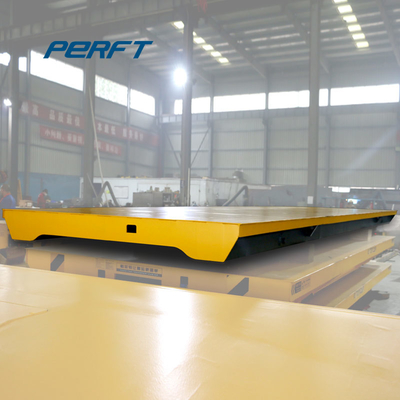

Special discount Customization Powerless transport cart use for Warehouse 1-100T Material Tranfer
Introductions
The workshop trailers are not powered and are meant to be pulled or towed by another powered transfer cart or a fork lift (of adequate capacity). They are a cost effective alternative to purchasing another powered transfer cart. For on-rail applications, a winch can be used to move carts. Pull type transfer carts are versatile and can be easily customized to suit applications.
Henan Perfect Material Handling line of Industrial Trailers include vary models and features to meet the needs of all major industries including Automotive, Basic Metals, Heavy Manufacturing, Rigging, Stamping, and more.
| Model | 5t | 20t | 30t | 40t | 50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
