Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel | Motor Power: | 1-15 |
|---|---|---|---|
| Product Name: | Electric Cable Drum Coil Transporters For Industrail Material Handling Equipment | Type: | Rail Battery Transfer Cart |
| Ground Clearance(mm): | 50-75 | ||
| High Light: | Battery Operated Steel Coil Transfer Cart,Rail Battery Coil Transfer Cart,20m/min Battery Transfer Cart |
||

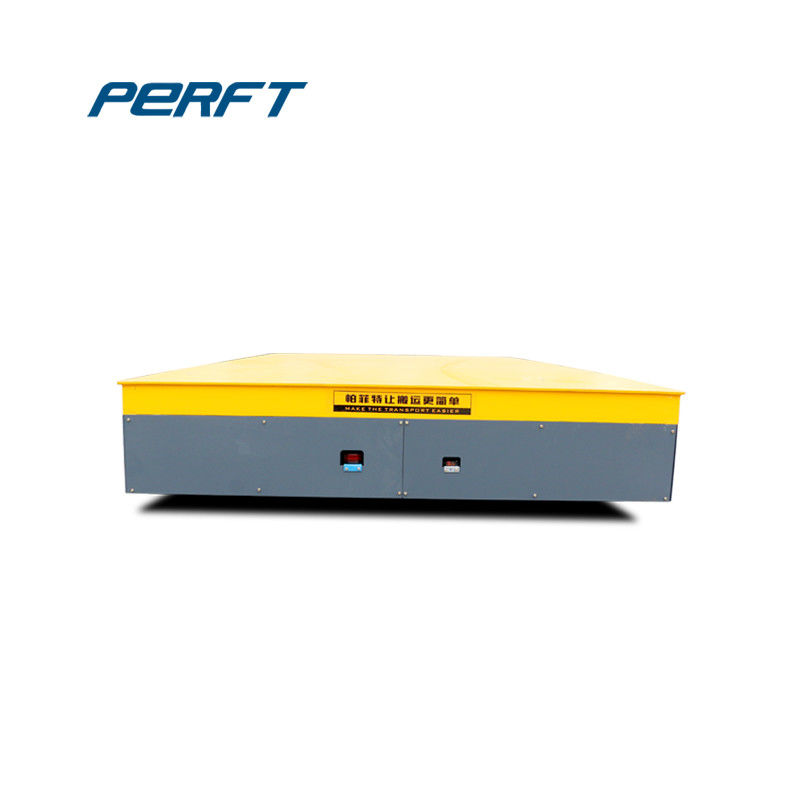

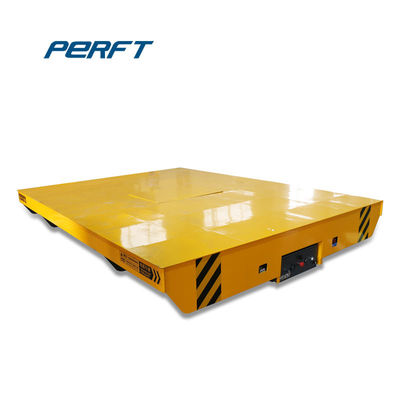

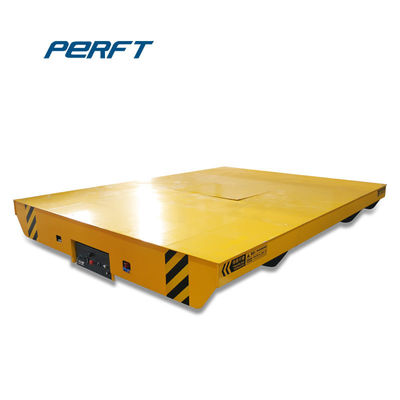

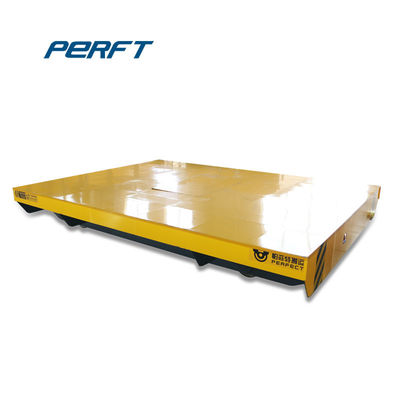

Electric Cable Battery Operated Steel Coil Transfer Cart For Material Handing
Product Description
PERFECT's battery operated transfer car can handle upwards of 300ton and work well in poor environment. These battery transfer cars are more accommodating for moving long loads through restrictive passage ways or doorways. Usually the heavy loads transfer cars are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others.These battery cars are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Applicable
We conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, steel coils and pipes transport vehicle, platform wagon, electric transfer carriage, and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
Main Componences of the electric cable drum coil transporters for industrail material handling equipment
Technical Table
| Rated Load(t) | 2 | 10 | 20 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Ground Clearence(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed(m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power(KN) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
