Cable Motorized Battery Powered Cart For Workshop Transfer Carriers

Name: Cable Motorized Battery Powered Cart For Workshop Transfer Carriers
Brand: cable motorized flat cart for workshop transfer carriers
SKU: cable motorized flat cart for workshop transfer carriers
Price: 3000 USD
Availability: InStock
Rating: 4.8 (142 reviews)

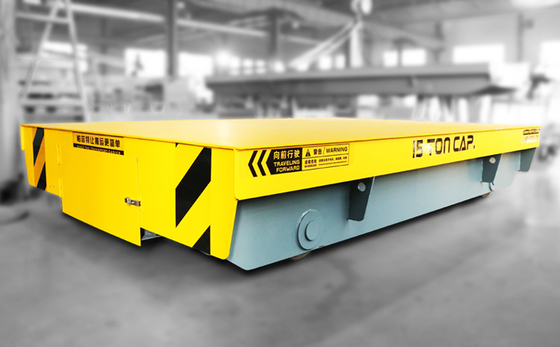

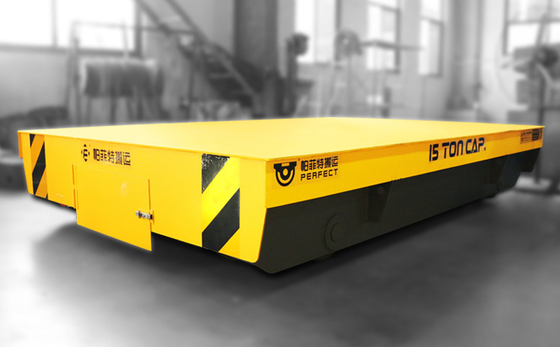

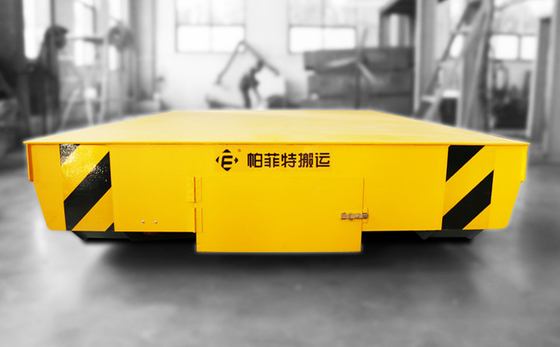

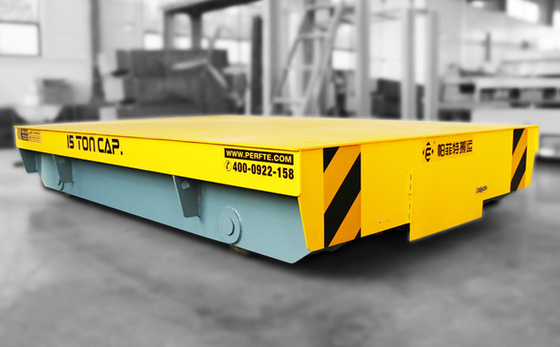

Large Image : Cable Motorized Battery Powered Cart For Workshop Transfer Carriers

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	cable motorized flat cart for workshop transfer carriers
Certification:	CE ISO SGS
Model Number:	cable motorized flat cart for workshop transfer carriers

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 3000~7000 set
Packaging Details:	trap and wooden case
Delivery Time:	20 work days after received balance payment
Supply Ability:	100 set month

Contact Now

Detailed Product Description

Place Of Origin:	Henan, China (Mainland)	Product Name:	Cable Motorized Flat Cart For Workshop Transfer Carriers
Application:	Industrial Filed	Color:	Customized
Capacity:	Customized	Running Speed:	0-20m/min
After-sales Service Provided:	Engineers Available To Service Machinery
High Light:	20m/min Cable Motorized Battery Powered Cart , Workshop Transfer Carriers Battery Powered Cart , ISO Material Transfer Cart

cable motorized Battery Powered cart for workshop transfer carriers

The product Details

Our battery powered coil trolley are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.

Technical Parameter

Model		BTL-2t	BTL-20t	BTL-50t	BTL-100t	BTL-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		0-20
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Advantages for product

Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Certificates

cable motorized flat cart for workshop transfer carriers/transportation carriage
