Product Details:
Payment & Shipping Terms:
|
| Capacity: | 1-300T | Table Size: | Customized |
|---|---|---|---|
| Running Speed: | 0-50/min(Adjustable) | Control Method: | Remote Control/Pendant |
| After-sales Service Provide: | Engineers Available To Service Machinery | ||
| High Light: | 50/min Rail Material Transfer Cart,Cable Drum Powered Material Transfer Cart,50t Heavy Load Rail Transfer Cart |
||
Introductions
The ladle transfer trolley is extensively used for moving and transporting hot metal ladles to the ingot casting machines or within the plant itself. It is well known for the capacity to bear enormous weight easily and equipped with two driving mechanism to keeping working when one is damaged by ladle high temperature.Our ladle transfer trolley is easily maneuverable and heavily demanded by organizations engaged in conducting metallurgical operations.

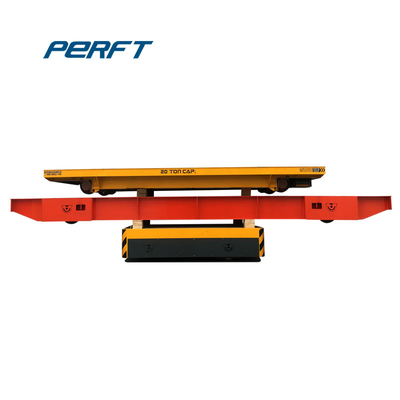

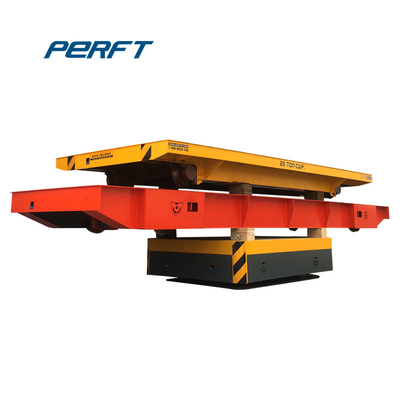

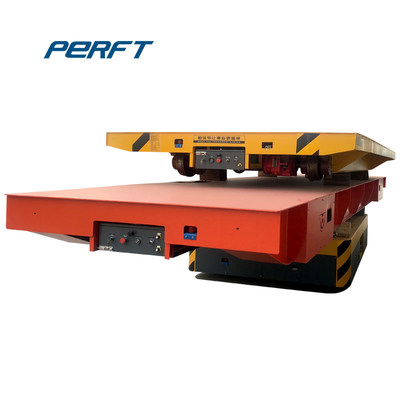

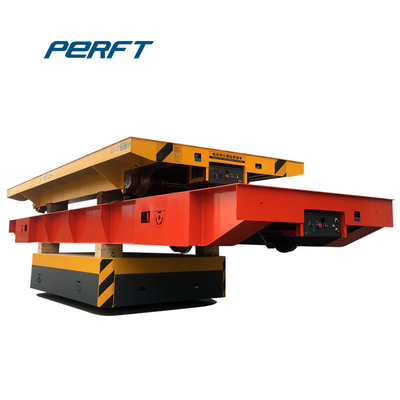

The cable drum powered industrial transfer trolley for port yard handlings .The power source 380Valternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the Motorised Trolleys .The cable drum powered industrial transfer trolley for port yard handling can realize full automatic operation by PLC system.Motorised
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
