Product Details:
Payment & Shipping Terms:
|
| Product Name: | Battery Transfer Cart | Powered Source: | Storaged Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | 1435mm (Customized) | Working Time: | 4-5 Hours |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Parameter: | 3600*2000*530 |
| High Light: | 10T Motorized Transport Vehicle,Electric Magnetic Brake Motorized Transport Vehicle,Warehouse Q235B Battery Transfer Cart |
||

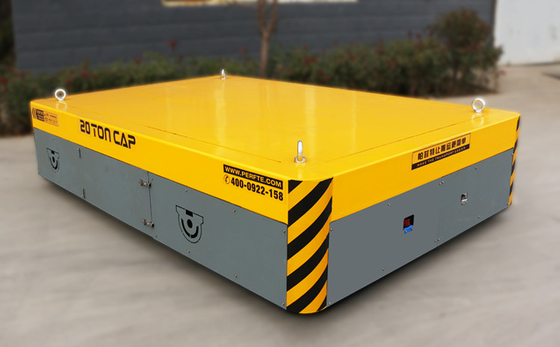

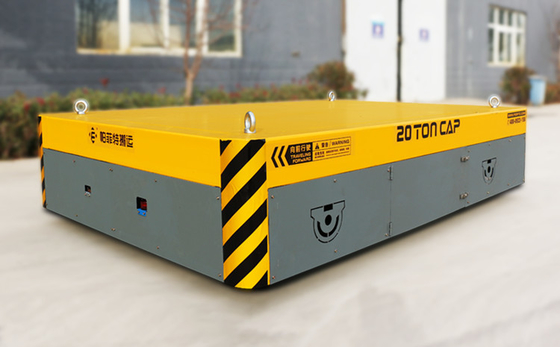

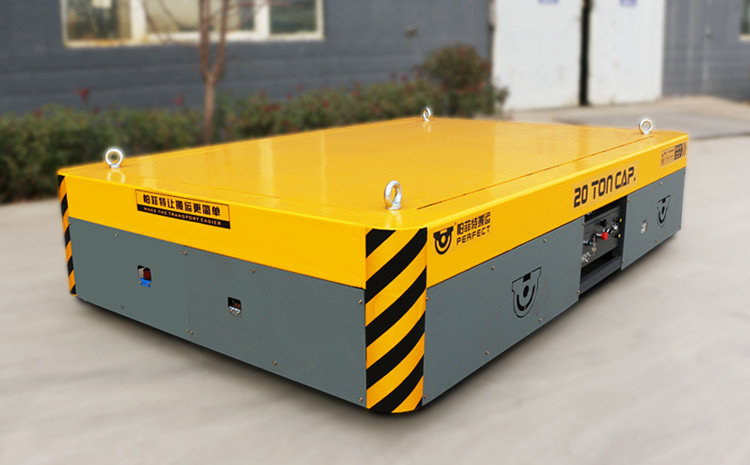

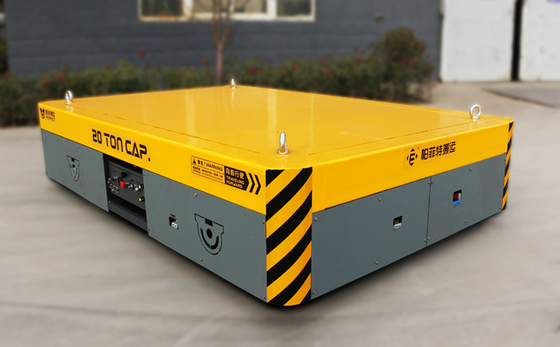

10T Customization size Motorized Transport Vehicle Electric Magnetic Brake for Warehouse
Introduction of Heavy Duty Die Transfer Car
This kind of transfer vehicles are not bound by moving distance and running time for the cables power are not required. Generally, the storage battery regard as the preferred power source for this kind of material transfer carts. The transfer vehicle is convenient and flexible, and it can be operated freely in restricted space due to the very small turning radius. In particular, the transfer machine can run on cement floor surface directly and no need to install steel tracks in your workplaces. The easy-to-control mold of transfer carts have been widely used in factory, port, construction site, power station and many other occasions!
Application Fields of Heavy Duty Die Transfer Car
We are professional in producing die transfer car. We can manufacture different kinds of transfer carts, transfer trolleys, coil carts and many other carts. Our products can be used in mine, construction, shipbuilding, wharf and many other positions. We can provide the most suitable products for you according to the using environments.
Parameters
| Model | BWP-10Ton | |
| Rated Load(t) | 10 | |
| Impacted rated load(t) | 15 | |
| Structure of Frame | Steel plates welded, beam | |
| thickness of the steel plate | 10 | |
| Cart weight(t) | 5.3 | |
| Max. wheel load (t) | 4.6 | |
| Ground requirement | Cement floor or Steel plate ground | |
| Ground Clearance(mm) | 50 | |
| Table size (mm) | 3600*2000 | |
| Height of the whole cart (mm) | 530 | |
| Wheel base (mm) | 1500 | |
| Axles distance (mm) | 3100 | |
| Turning radius (mm) |
3101 |
|
| Running Speed(m/min) | 0-15 | |
| Brake Principle | Electric Magnetic | |
Advantage
--- Low noise It causes low noise level.
--- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
--- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
--- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
--- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
Sales Service
We make sure that the load bearing safety factor of the trolley is no less than 120%.We also provide freely design of the auxiliary device or foundation drawing, and offer the technical service and drawing material.
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
