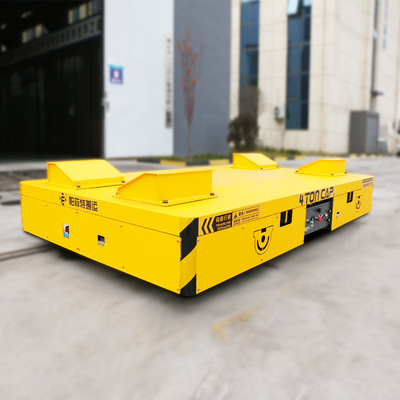

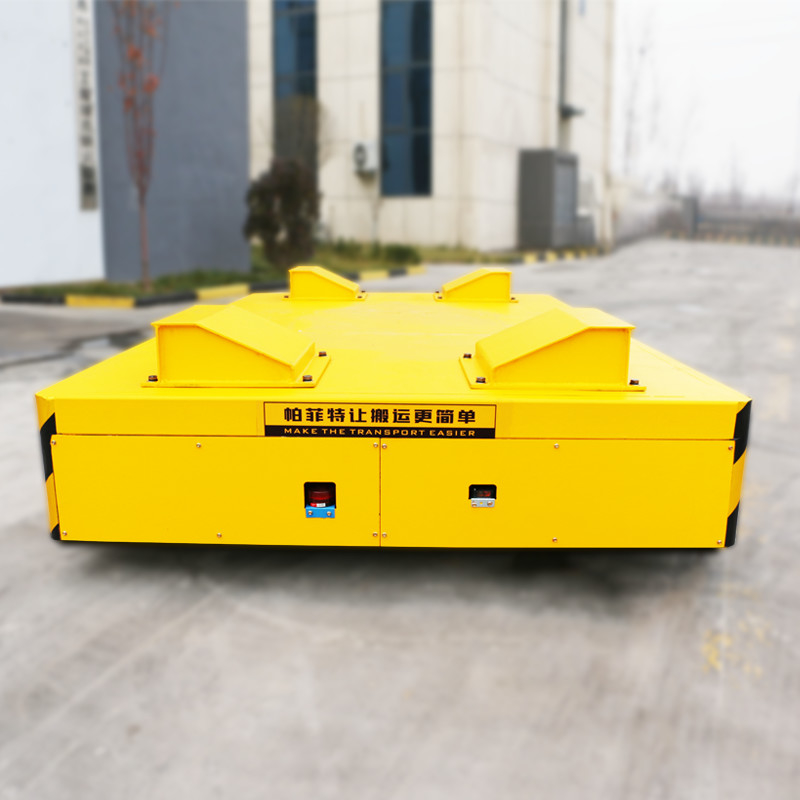

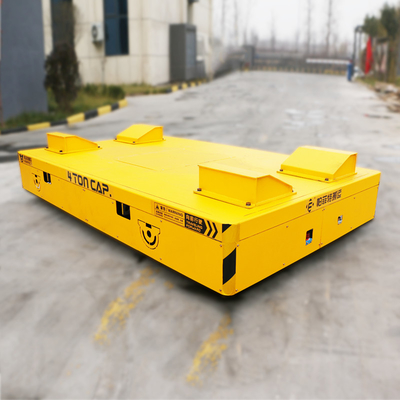

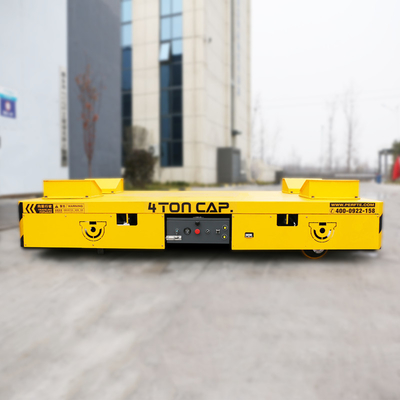

Product Name: | Battery Powered Industrial Trackless Transfer Cart | Usage: | Handling Material |
---|---|---|---|
Type: | 30 Ton Battery Cart | Color: | Customized |
Running Speed: | 0-20m/min | Capacity: | 1-300ton |
High Light: | Heavy Machine Die Transportation Wagon,SGS Battery Powered Transportation Wagon,6000X2300 Battery Transfer Cart |
PERFECT Ladle Transfer Wagon are extensively used for moving and transporting hot metal ladles to the ingot casting machines or within the plant itself. These are well known for their capacity to bear enormous weight easily and equipped with two driving mechanism to keeping working when one is damaged by ladle high temperature.Our transfer cars are easily maneuverable and heavily demanded by organizations engaged in conducting metallurgical operations.
Applications
With the functions of steady traveling, stepless speed regulation, the Ladle Transfer Wagon is commonly applied to transfer steel ladle, molten and liquid steel, aluminum ladle,furnace clinker, steel slag etc. These ladle carts usually are used to carry molten steel before the furnace, electric stove or converter in steel mill,foundry work,metallurgy industry, and casting factory.
Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the Ladle Transfer Wagon should be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance. If need, we would prepare two motors, so when one is damaged by the ladle 's high temperature the other one could work continually.
Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
Ground Requirement | Cement floor or Steel plate ground | ||||
Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
Height (mm) | 450 | 600 | 650 | 700 | 700 |
Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
Turning Structure | Mechanical | ||||
Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
Wheel Material | ZG55+hydropurture | ||||
Running Speed (m/min) | 0-15 | 0-12 | |||
Brake Principle | Electric magnetic brake | ||||
Operation Method | Raido Remote Control | ||||
Battery Maintainance | Free of maintainance | ||||
Charger's Installation | Installed on cart | Split-type | |||
Cart Color | Customized | ||||
Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
Warning Equipment | Horn and Flash Light | ||||
Other Functions | Turning light, night light and power display |
Advantage
