Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Transport Wagon On Rails | Capacity: | 1-300ton |
|---|---|---|---|
| Application: | Industrial Filed | Running Speed: | 0-20m/min |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | ||
| High Light: | Industrial Battery Powered Wagon 30t,Battery Powered Wagon On Rail,Battery Transfer Cart 20m/min |
||

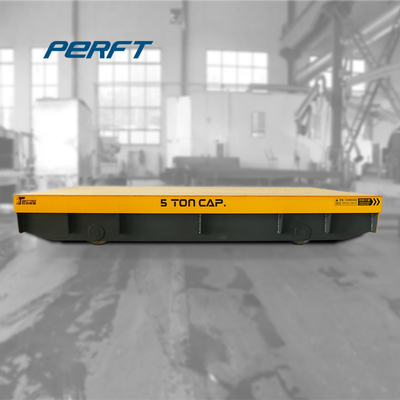

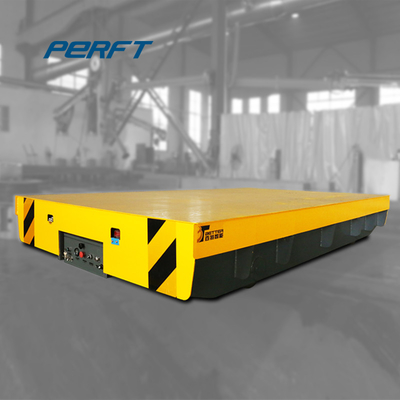

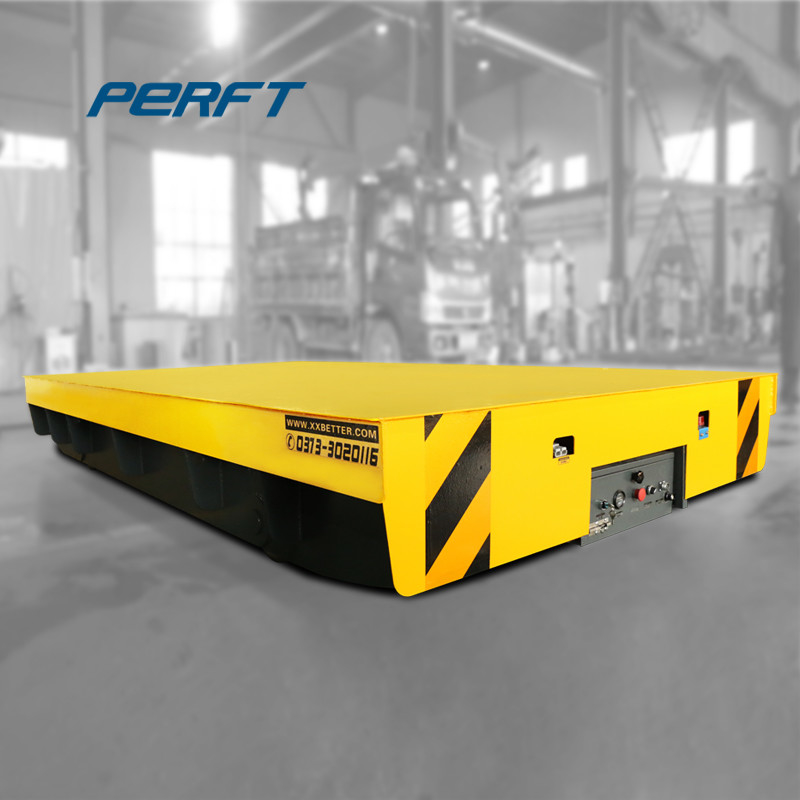

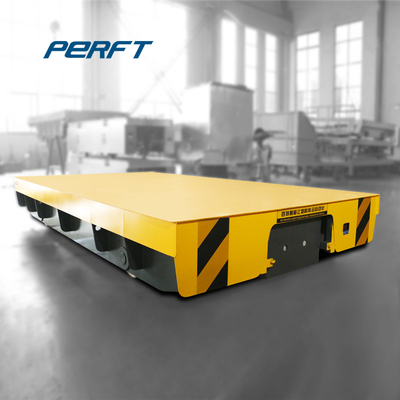

30t heavy load customized industrial transport wagon on rails powered by battery cart
Preview transfer cart
Our heavy load handing cart for ladle transportation is made up of high temperature bearing materials and special structure. It's powered by battery. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
