Battery Powered Large Table Factory Cargo Railway Turnplate Cart 30T

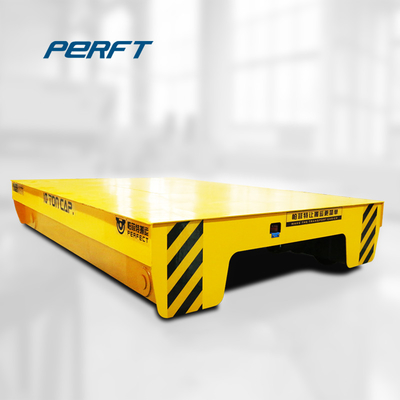

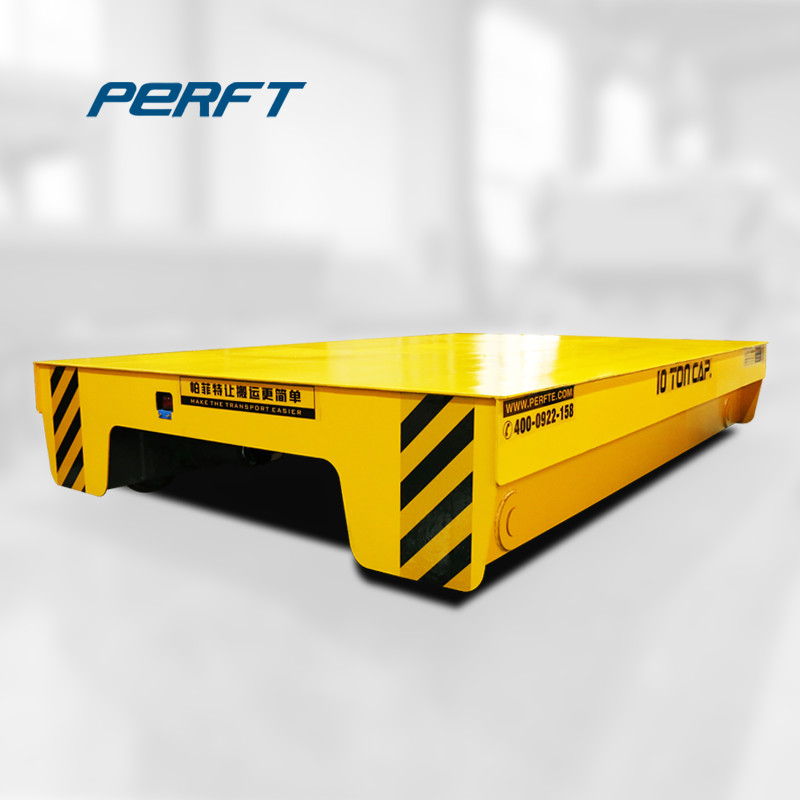

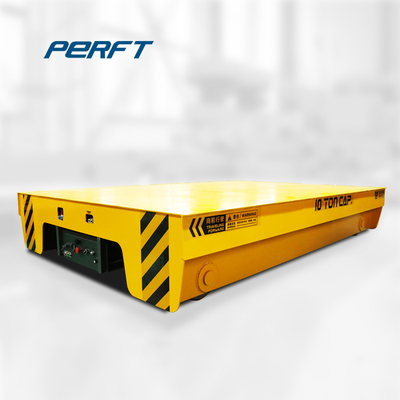

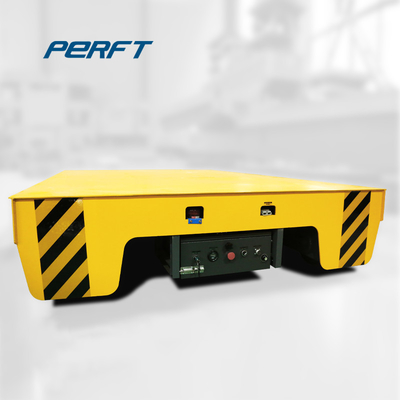

Large Image : Battery Powered Large Table Factory Cargo Railway Turnplate Cart 30T

Product Details:

Place of Origin:	China(Mainland)
Brand Name:	25 ton transfer cart battery powered large table trackless transfer car
Certification:	CE ISO SGS
Model Number:	25 ton transfer cart battery powered large table trackless transfer car

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 4000~7800set
Packaging Details:	trap and wooden case
Delivery Time:	20 work days after received balance payment
Supply Ability:	100setmonth

Contact Now

Detailed Product Description

Product Name:	25 Ton Transfer Cart Battery Powered Large Table Trackless Transfer Car	Application:	Transfer Materials
Capacity:	1-300T	After-sales Service Provided:	Engineers Available To Service Machinery
Running Speed:	0-20m/min	Certificates:	CE ISO SGS
Dimension:	Customized
High Light:	Cargo Railway Turnplate Cart , Battery Powered Material Transfer Cart , Cargo Railway Turnplate Cart 30T

30T battery powered large table Factory Cargo Railway Turnplate cart

Description of cart

Our steering transport trailers don't have power and are pulled or towed by another powered transfer cart or a forklift which with adequate power. It's no doubt that it's a cost-saving choice for you compared with some other powered transfer carts. Our products can be customized, which provide many different kinds of models to choose, so you can cooperate with us freely and get the product you want.

Applications

Our "light-duty" steel frame trailers are ideal for warehousing, light manufacturing and automotive assembly plants. It's load capacity ranges from 1 to 4 ton.
Our "medium-duty" steel frame trailers are a proven Flat Transfer Trailer used for a wide range of applications and all industries. The majority of the units manufactured range in capacity from 5 Ton to 50 Ton.
Our "heavy-duty" steel frame trailers are designed for handling the large and heavy loads found in the steel, automotive and heavy manufacturing industries. It's load capacity ranges from 50 ton to 300 ton.

Technical Parameter

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for Once Charge(KM)		6.5	4.8	4	3.8	3.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Functions & Advantages

Flat deck or fixtures for transporting special payload;
Custom deck configurations may include lift, tilt, or rotate function;
Payload from 1 ton to 300 tons;
Fixed speed or variable speed capabilities;
The 25 ton transfer cart can run on the C-form track or S-form track and L-form track;
Running distance of 25 ton transfer cart is unlimited;
With forward or backing driving;
Options for automatic control;
Available safety equipment includes horn, lights, emergency stop, bumpers and detector.

Our team

We have been specializing in transfer cart manufacture for over 15 years.With advanced equipment,excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO. Our products can be used in industrial,steel,pharmacy,mining and many other lines. So we can assure that we will provide high quality and cost-effective products for you.
