Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Storage Battery | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Load Capacity: | 100 Ton/ Customized |
| Color: | Yellow/Customized | Working Time: | 6~7 Hours |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Parameter: | 6000*2300*700 | Warranty: | 12 Months |
| High Light: | Q235B Battery Powered Transport Truck,100T Battery Powered Transport Truck,SGS Electric Transfer Cart |
||
Battery Powered Transport Truck for Steel IndustryMaintenance Electric Transfer

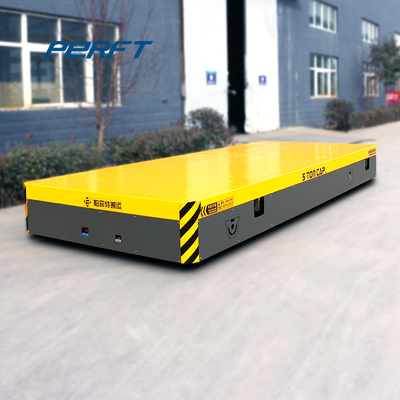

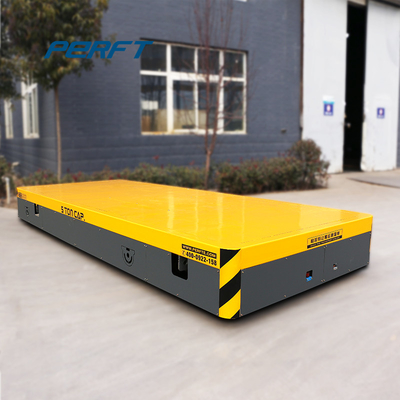

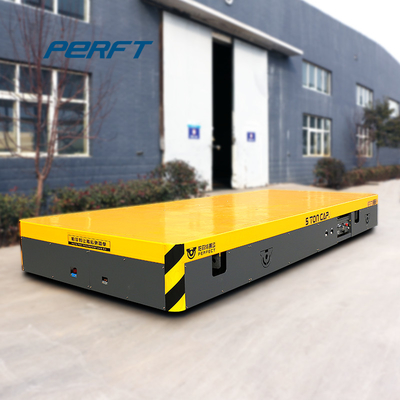

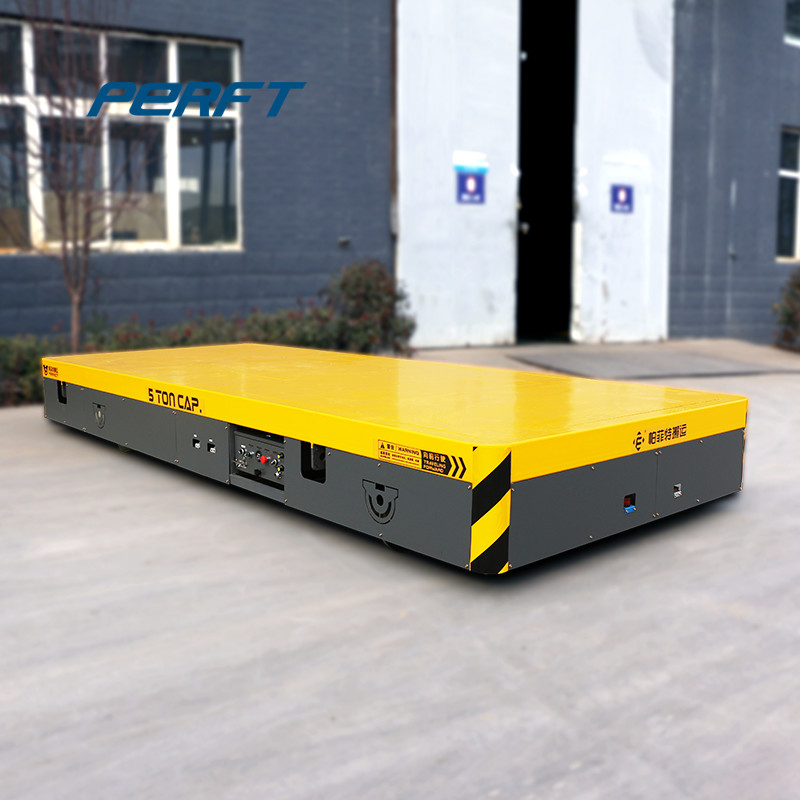

Introduction of Electric cart
Our trolley are powered by battery. It's trackless and consists of steel structure bearing frame. When the current get in the electric control system, the machine is powered to make the trolley stop, start, move forward and move backward. It can also turn around for 360 degrees without moving forward or backward. As per clients' request, we can provide all kinds of trackless transfer trolley for you according to the working environment and floor condition.
Customization
Appearance
Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure, etc.
Special Function
Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system, etc.
Safety Device
Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails, etc.
Special Design
Round corner, Hold pendant box, Lifting hole, etc.
Advantages
Low noise
It causes low noise level.
Maximum safety
We make sure a maximum safety for operators and the material handled. What we really care is the safety of everyone involved in the process of machine operation.
Easy for operation
These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation.
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its highest payloads is up to 300 ton.
Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
Packing & Shipping
The shipbuilding using electric transfer traverser for sale body is packed with tarp, the motorized heavy transporter for sale wheel and parts will be packed with wooden case.
For length is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container (20 or 40 ft). If the electric transfer car for sale is beyond above dimension, It needs to be transported by BB container. Determine the size & material of the box according to the shape & number of products.
