| Product Name: | Heavy Duty Trackless Battery Transfer Cart Material Handling Equipment For Industry Used In Warehouses | Type: | Battery Transfer Cart |
|---|---|---|---|
| Ground Requirement: | Cement Floor | Ground Clearance(mm): | 50 |
| Wheels Base(mm): | 1500-1800 | Motor Power(Kw): | 3.5-15 |
| Running Speed(m/min): | 0-15 | Table Size: | Customized |
| Battery Capacity(Ah): | 180-600 | Battery Voltage(v): | 24-72 |
| High Light: | Trackless Electric Transfer Cart,Adobe Electric Transfer Cart 15kw,50t Cement Floor Battery Transfer Cart |
||
Heavy duty trackless BatteryElectric Heavy Duty Adobe Concrete cart
Introduction
BWP series heavy load Transport Carriage is a kind of trackless material handling trolley, which means it can run on cement floor and no need to install rails. The steerable Transport Carriage have at lest two casters, which could realize 360 degree motorized rotation without causing any damage to the floor. It is powered by storage battery, so it can turn freely without any cable strings. This electric trackless transfer trolley is controlled to go forward and backward, turn left and right by pressing the buttons and speed controller. It also can be added with PLC control system for full automation.
Advantages
1. No need to install rails
2. No damage to the floor
3. It can move forward and back, and 360 degree turning.
4. DC drive and heavy loading capacity.
5. Small turning radius, flexible and easy operation.
6. Braking distance is short,and have alarming system.
7. Multiple protection devices for safety
8. Details show the perfect art.
9. Large capacity, strong durability, useful after-sale supports.
Trackless Transfer Flat Car.
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Cement Floor
|

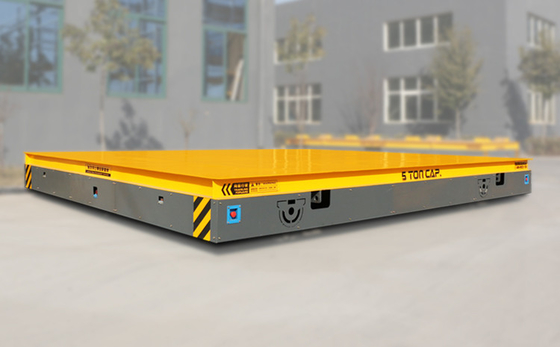

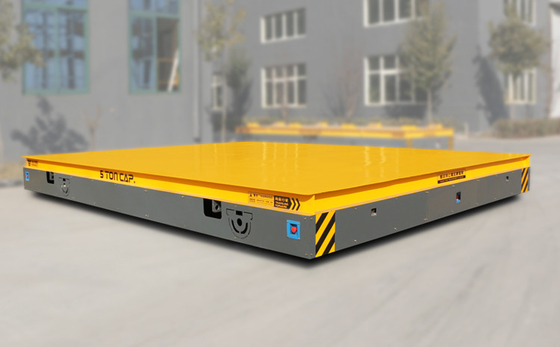

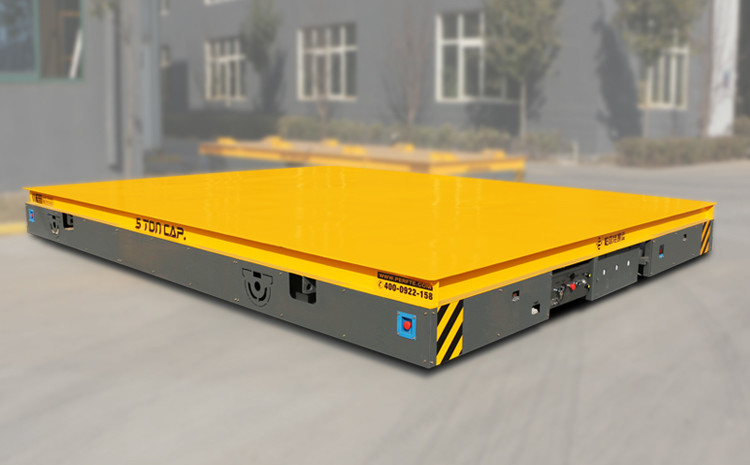

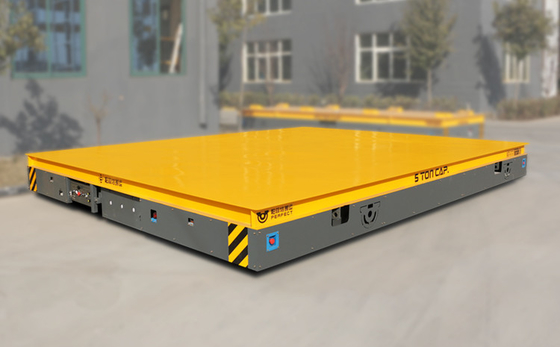

Product shows
We conceives and manufactures a wide range of railway guided transfer carts, electric flat trolley, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
