Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | Customized | Operation Mode: | Pandent And Remote Controller Or PLC |
|---|---|---|---|
| Application: | Factory, Warehouse, Port, Construction, Steel Structure | Rail Gauge: | Customized |
| Color: | Customized | Working Time: | No Limited |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| High Light: | 150t Electric Handling Vehicle,PLC Warehouse Electric Handling Vehicle,Anti Explosion Material Transfer Cart |
||

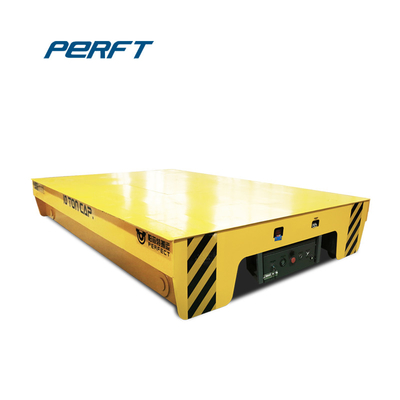

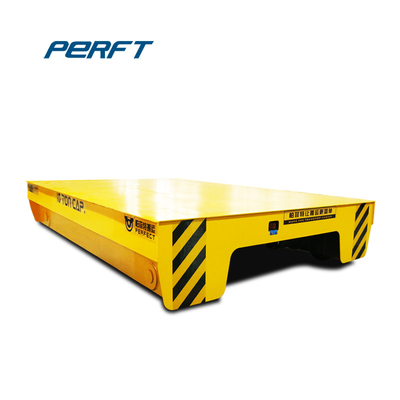

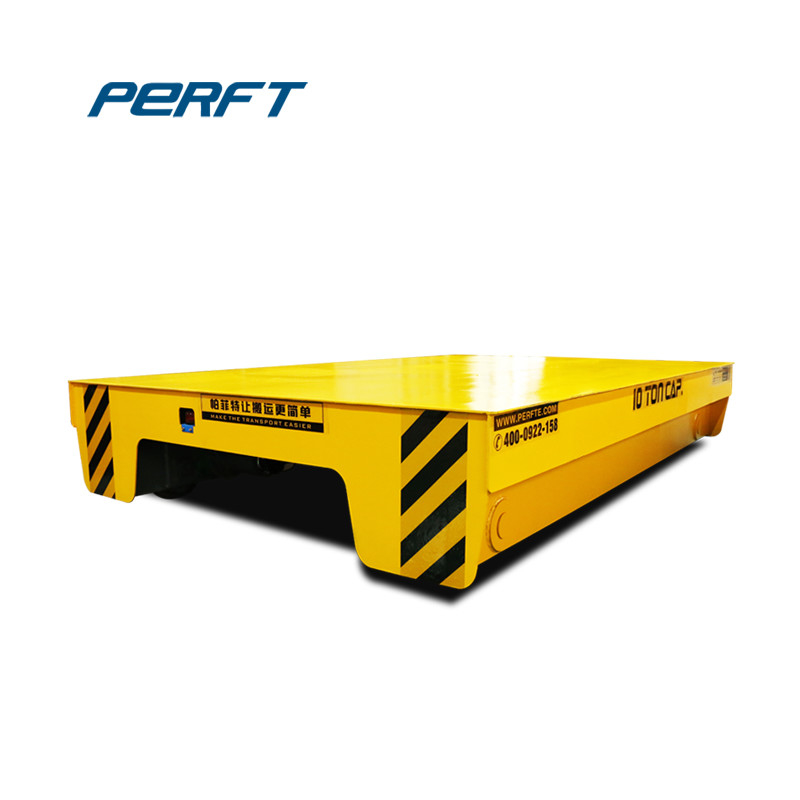

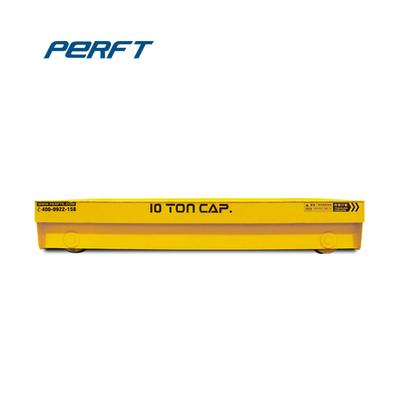

Introduction of Transfer Cart
Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Parameter Table
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Applications
Uses of heavy industrial transfer carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
Advantage
1. It is a kind of detachable cart which can save money for our clients.
2. It causes low noise level and give workers a good working environment.
3. All of our products are easy for operation.
4. It could be operated in the harsh environment.
5. It can realize full automation operation.
6. High temperature and explosion proof;
7. With simple structure and cost effective;
