Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T

Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T
Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T

Large Image :  Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T

Product Details:
Place of Origin: China(mainland)
Brand Name: Electric Transfer Trolley
Certification: CE ISO SGS
Model Number: Electric Transfer Trolley
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 2000~7500 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100 sets month
Detailed Product Description
Product Name: Electric Transfer Trolley Capacity: 1-300T
Dimension: Customized As Practical Needs Color: Customized
Application: Industrial Filed Feature: Easy Operation
Certificates: CE ISO SGS
High Light:

Steel Coils Railway Transport Cart

,

Railway Transport Cart 20T

,

Heavy Material Transfer Cart


20T heavy Anti High Temperature Steel Coils Railway Transport Cart


Description of Transfer Cart


Our coil transfer cart are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.





Application about cart



For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

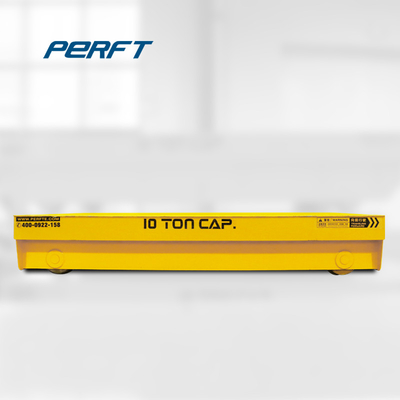

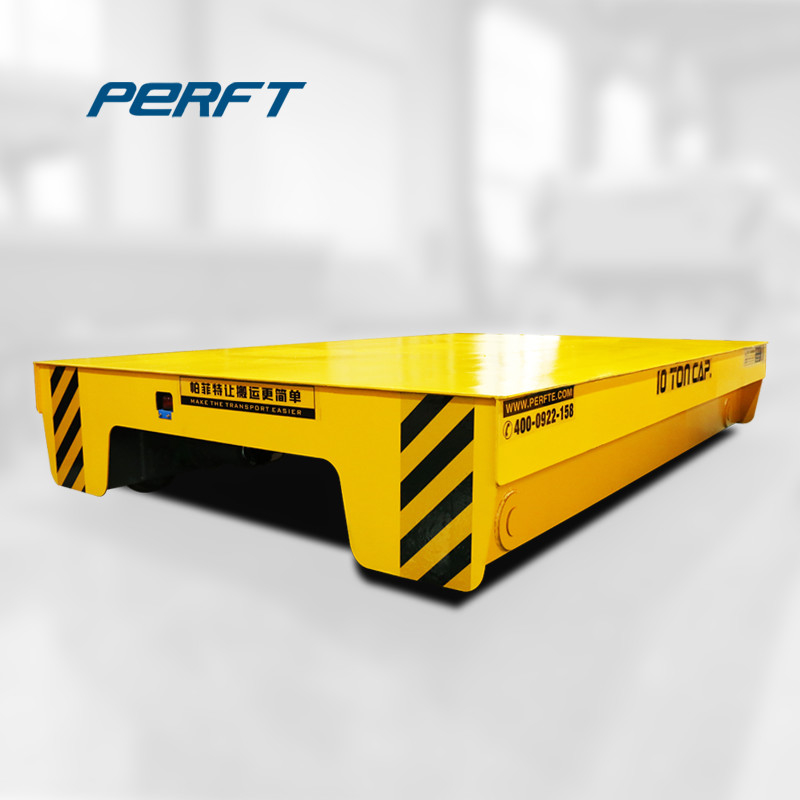

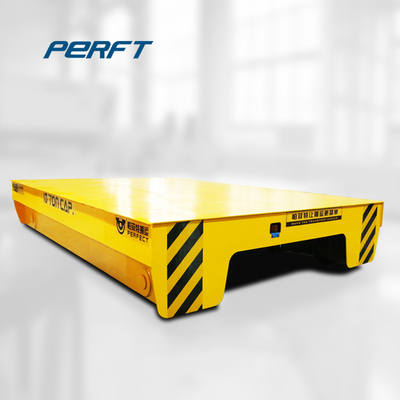

Detailed Image Of Transfer Trolley


Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T 0

Why choose us?

Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T 1


Components Of Transfer Cart


Heavy Steel Coils Railway Transport Cart Anti High Temperature 20T 2




Technical Parameters

Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter (mm) 270 350 500 600 600
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(km) 6.5 4.8 4 3.8 3.2
Recommended Rail Model P15 P24 P43 QU100 QU100




Processing Line Of transfer carts

Hydraulic lifting transfer car with pendant or remote controller


Service

We make sure that the load bearing safety factor of the trolley is no less than 120%.We also provide freely design of the auxiliary device or foundation drawing, and offer the technical service and drawing material.
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
