Product Details:
Payment & Shipping Terms:
|
| Product Name: | Automated Trackless Car | Power Supply: | Battery Powered |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Running Distance: | Unlimited |
| Capacity: | 5 Ton(customized) | Application: | Steel Industry, Factory, Warehouse, Port Etc |
| Warranty: | 12 Months | Color: | Yellow / Customized |
| Wheel Type: | Cast Steel Wheel | Usage: | Heavy Duty Material Transportation |
| High Light: | Steerable Turning Automated Trackless Car,Metal Industry Automated Trackless Car,Material Transfer Cart 10Ton |
||

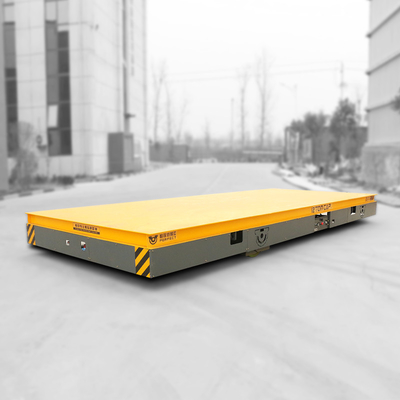

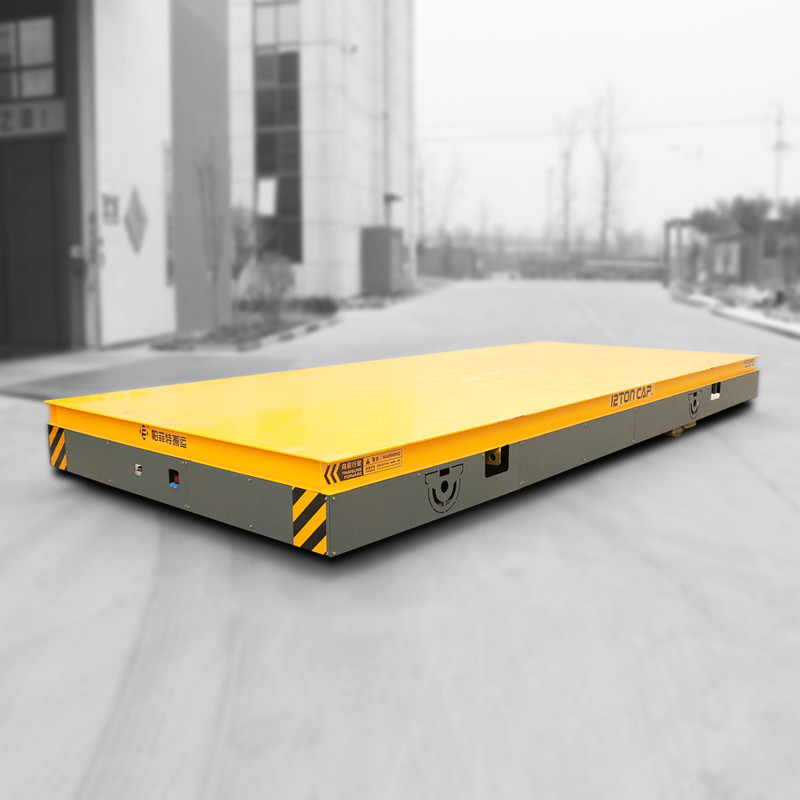

10 Ton Metal Industry Use Steerable Turning Automated Trackless Car
Introduction of Transfer Cart
Compact in design, Material Trackless Transfer Carts can handle upwards of 300ton and work well in areas with limited floor space. These Transfer Carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads, The transfer carts of material handling equipment running on cement can offer flexibility as they can be customized to suit specific needs. The material handling transfer carts can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result can be increased production and throughput.
| Model | 2t | 20t | 50t | 100t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | |
| Heigth(H) | 450 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
