Product Details:
Payment & Shipping Terms:
|
| Year: | 2017 | Type: | Hydraulic Lifting |
|---|---|---|---|
| Condition: | New | Color: | Yellow, Customized |
| Wheel Quantity: | 4 | Power: | Storage Battery |
| Safety Device: | Alarm Light, Buffer, Radar Detector | Material: | Steel |
| Brake: | Electromagnetic Brake | Wheel: | PU Wheel |
| High Light: | SASO Steel Transport Platform Buffer,50T Steel Transport Platform Buffer,Platform Buffer With Radar Detector |
||

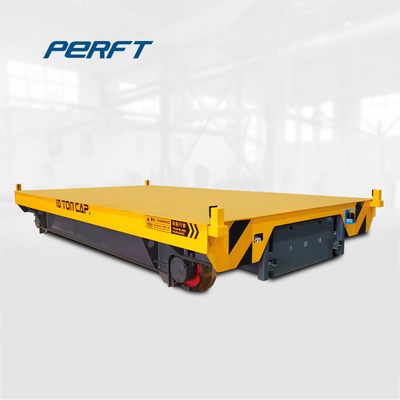

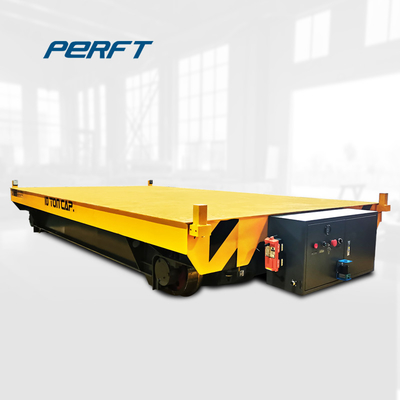

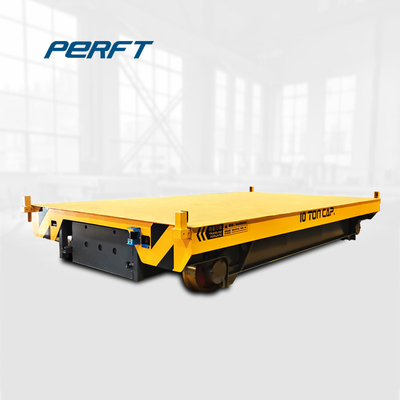

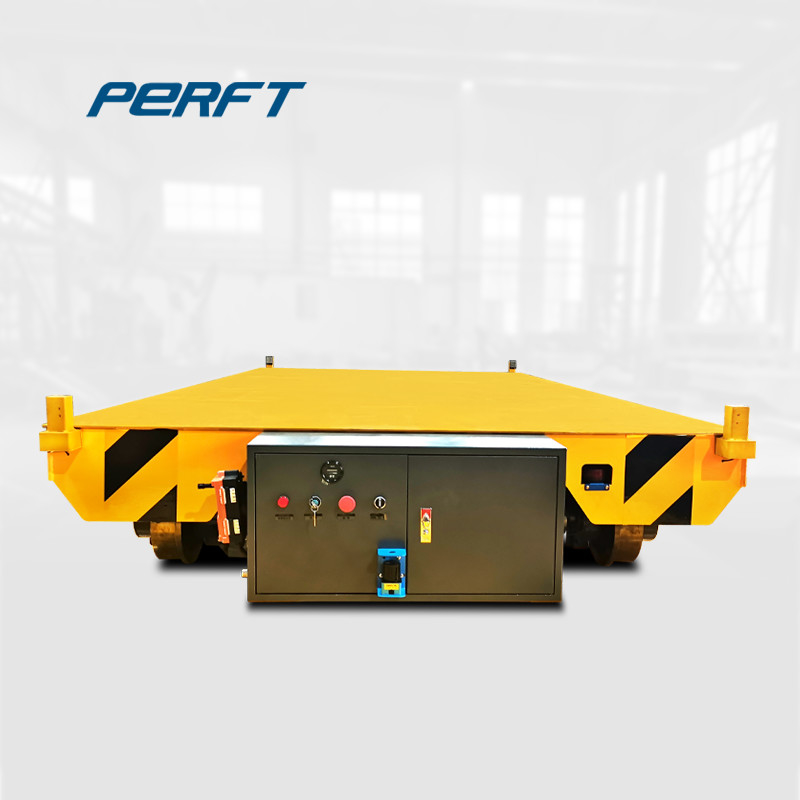

50T heavy duty Steel Transport Platform Buffer With Radar Detector
Product Preview
Our BXC series ladle transfer cart is powered by battery. The battery is fitted in the inner of the cart. The direct-current machine gets its power from the electric control system, which make the cart to start, stop, move forward and move backward. It could run on straight line, L-form track or curved track. We can also fit hydraulic lifting system if needed. The heat insulating material is used to prevent the high temperature. In case to handle emergency situations, two motors are assemlied in the car to make sure the machine works smoothly when one motor is broken.
Using Sites of Scissor Hydraulic Lifting Platform
Our lifting carts are wildly used in many different lines and sites. For example, you can use it to transfer coil materials in the factory, trasport cargo in the airport, load containers in the wharf and used in the construction. All in all, we can provide all kinds of transfer carts for you according to your using environments.
Parameters
Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Height(H) | 450 | 550 | 650 | 900 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Sales Service
Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
Packge
For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Company Information
We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators.
Contact Person: Jack
Tel: +8615736919601
