Product Details:
Payment & Shipping Terms:
|
| Product Name: | Rail Based Trolley Material Transfer Cart For Heavy Industrial Materials Handling | Original: | Henan China |
|---|---|---|---|
| Wheel Diameter(mm): | 350-550 | Ground Clearance(mm): | 50-80 |
| Wheel Quantity: | 4 | Running Speed(m/min): | 0-25 |
| Type: | Material Handling Equipment | ||
| High Light: | 25m/min Transfer Die Cart,SGS Transfer Die Cart,30T Based Trolley |
||

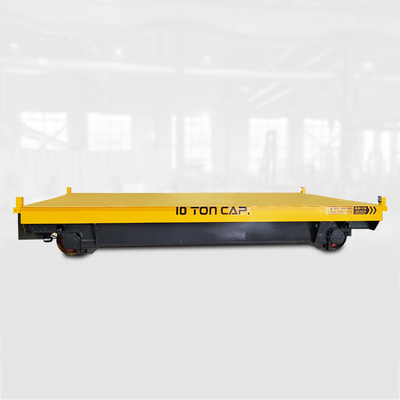

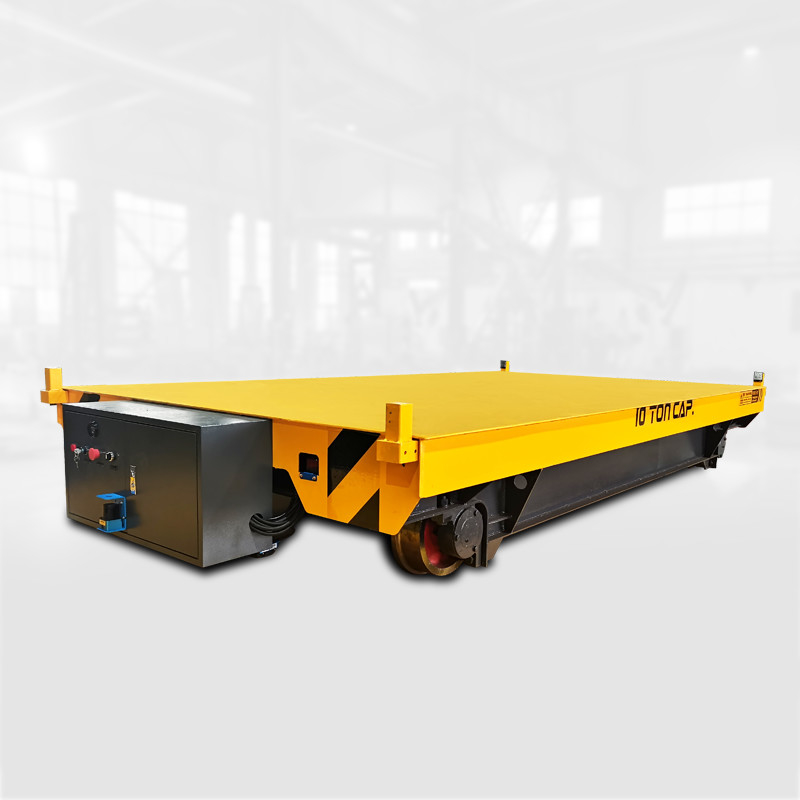

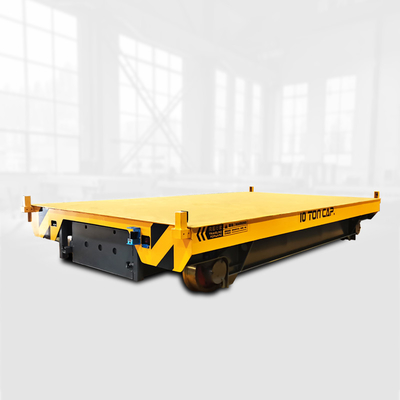

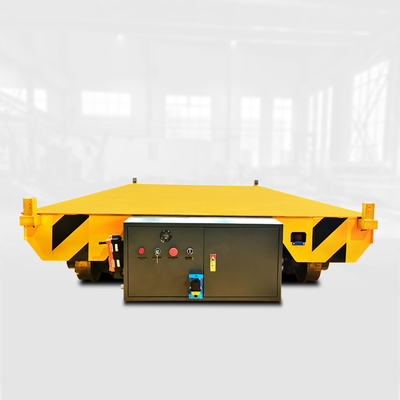

30T Based Trolley Material Concrete Floor Transportation Die Cart
Introductions
PERFECT's heavy duty material transport cart are movable platforms used for the horizontal movement of materials, assemblies and other items. It is powered by storage battery, which is installed on the transfer carts. The transfer trolleys are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. Usually the heavy duty material transport cart are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others.These heavy duty material transport cart are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Product Parameters
|
Model
|
BDG-2T | BDG-10T | BDG-20T | BDG-30T | BDG-50T | BDG-63T | BDG-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size(mm) | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 500 | 550 | 600 | 650 | 700 | 800 | 1200 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 15 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Advantages
opreating principle
This transfer cart get the power from the battery. The current is supplied to pulling motor through electric control system, which makes the car start, stop, move forward, turn around, change speed, etc. The transfer cart can run on curved rails and can use as ferry car. The battery powered transfer cart is suitable for all kinds of transport occasion since its travel distance is unlimited and low requirement to the track.
