Product Details:
Payment & Shipping Terms:
|

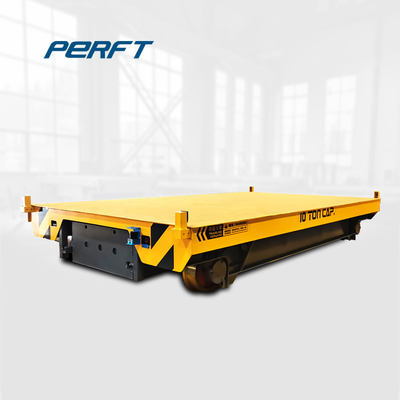

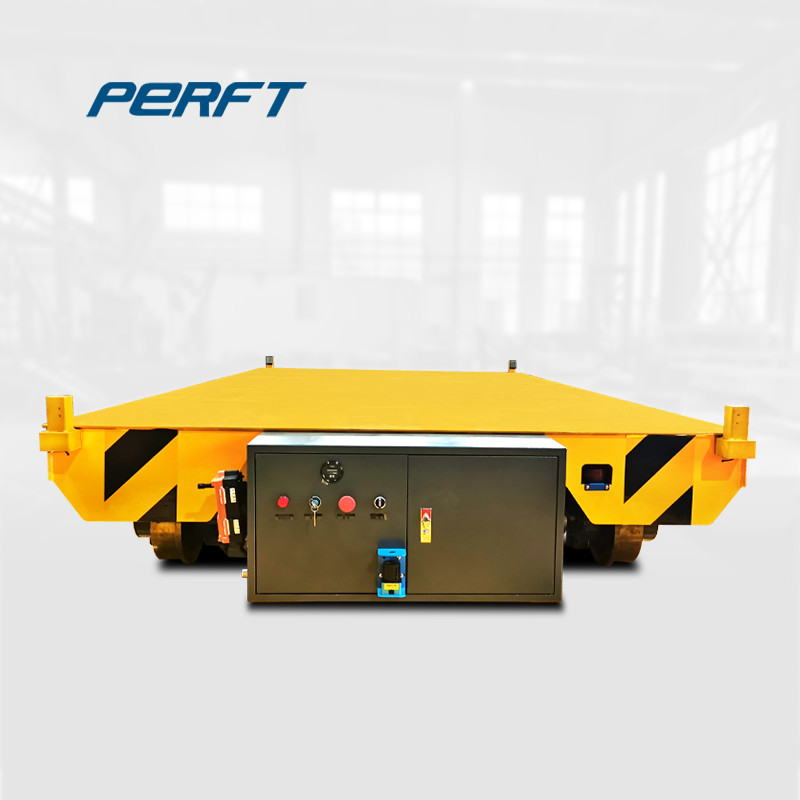

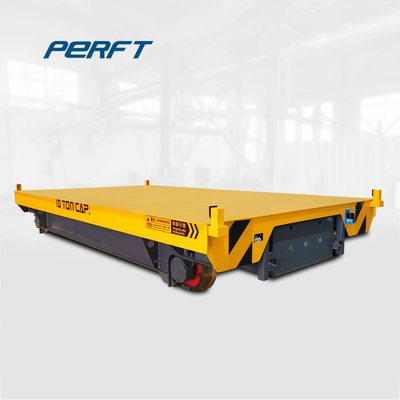

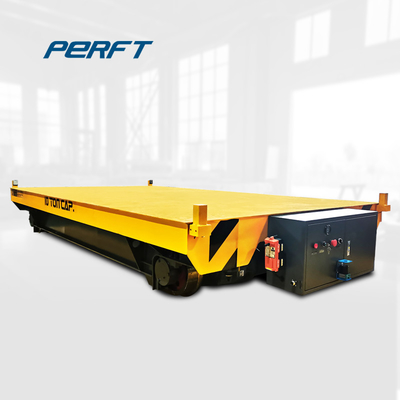

| Name: | Foundry Factory Use Battery Powered Transfer Cart | Application: | Industrial Filed |
|---|---|---|---|
| Capacity: | 1-300t | Color: | Customized |
| Warranty: | 12 Months | Running Speed: | 0-20m/min |
| High Light: | Foundry Factory Transfer Dolly,20m/min Transfer Dolly,Heavy Die Material Transfer Cart |
||
Perfect Material Handling offers a wide range of Die Handling Products specifically designed for the unique needs of both stamping and molding and transporting heavy die or mold from die storage to the press line. These die transfer cart is widely used in the processing line of
punching, pouring, cold heading, extrusion, powder metallurgy parts pressing, pressure casting, and engineering plastics, rubber, ceramics and other products of the compression molding or injection molding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table and so on.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
PERFECT heavy die transfer trailers are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
Customizations
The material handling vehicle can be designed to travel on steel rail bars or they can be operated directly on the floor of your facility
1Ton to 300 Ton capacity range
Push and Pull operation or completely motorized
Full steer-ability or controlled direction of motion
Custom shaped table size to suit your application
Lifting fixtures available for simple transportation
Fully automated controls, wireless control system, or a fixed pendant
