Product Details:
Payment & Shipping Terms:
|
| Product Name: | 10 Ton Electric Mold And Die Handling Material Trackless Flat Transfer Cart | Material: | Carbon Steel |
|---|---|---|---|
| Running Speed(m/min): | 20 | Motor Power(Kw): | 3.5-15 |
| Battery Capacity(Ah): | 180-330 | Battery Voltage(v): | 36-48 |
| Wheel Quantity: | 4 | Cart Weight(t): | 4.3-10.5 |
| High Light: | 10Ton Transfer Bogie Cart,Transfer Bogie Cart On Cement,Electric Trackless Transfer Flat Car |
||
Introductions
Compact in design, the Handling Vehicle can handle upwards of 300ton and work well in areas with limited floor space. For heavier loads, The vehicle of material handling equipment running on cement can offer flexibility as they can be customized to suit specific needs. The Handling Vehicle can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result can be increased production and throughput.
Advantages
1. Do not rely on the operation of the guide rail
2. Double direction run and 360 degree steering
3. C drive, large bearing capacity
4. Small turning radius, flexible operation
5. Safe and flexible.
6. No strict requirement for the construction of the railway
7. No limit of running distance
8. Safe and convenient operation for there is no wire outside the car
9. Adjustable speed

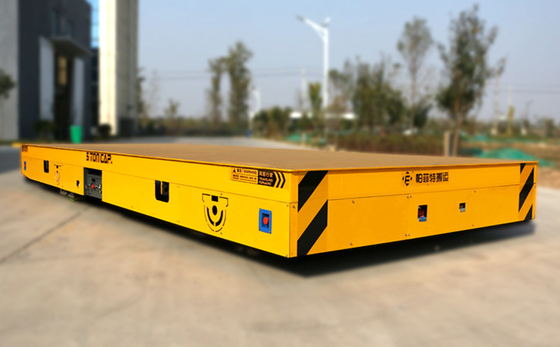

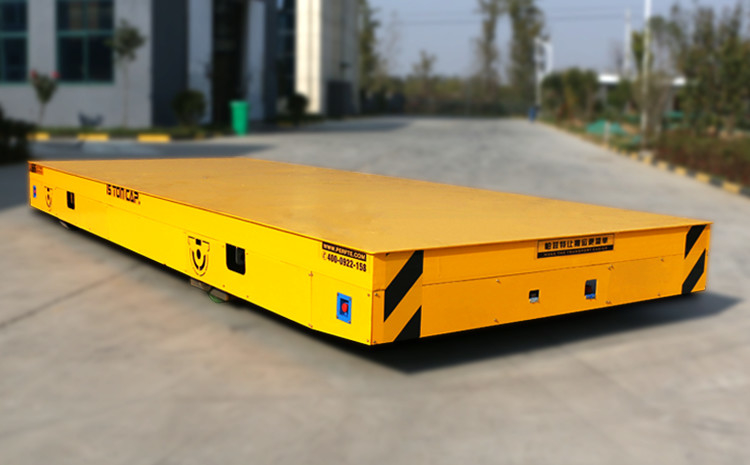

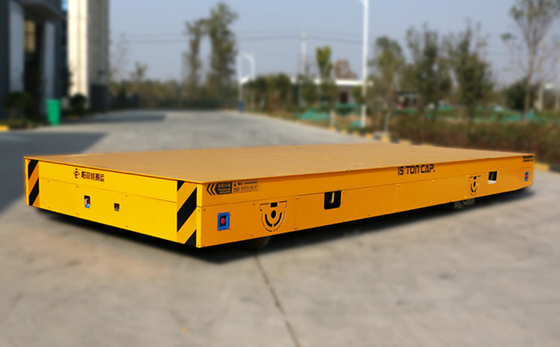

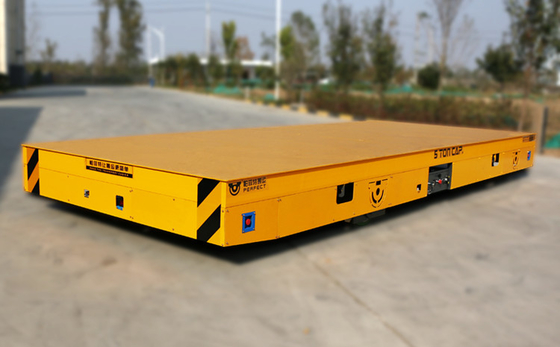

Detailed Image
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
Applications
PERFECT Handling Vehicle is operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Trolley in the world for moving molds inside and outside the plant by electric traction and driving long distances.And also the Handling Vehicle is mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
