Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Quality Electric Rail Transfer Cart Factory | Capacity: | 1-300T |
|---|---|---|---|
| Dimension: | Customized As Practical Needs | Color: | Customized |
| Application: | Industrial Filed | Feature: | Easy Operation |
| High Light: | SGS Factory Material Handling Cart,300T Workshop Railway Material Handling Cart,2000mm Material Transfer Cart |
||

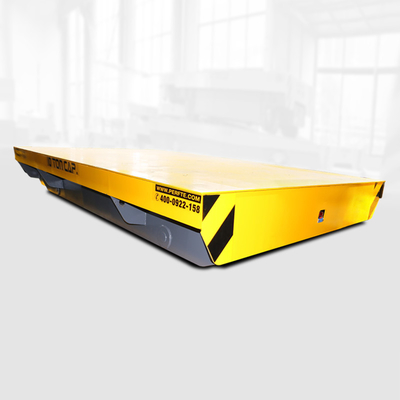

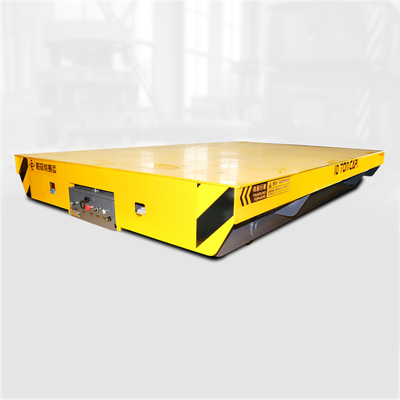

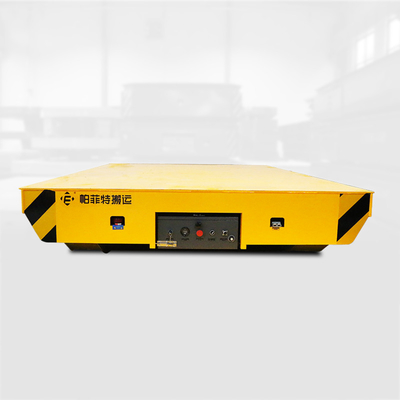

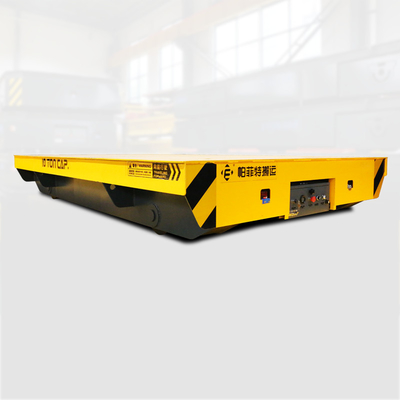

Our factory material handling equipment can be used both on the 'S' and arc-shaped railways to carry many different kinds of stuff. It also can be used in the ferry condition and flammable, explosive environment, the hydraulic lifting device can be used installed on such kind of material handling equipment. In addition, the material handling equipment is suitable to be used in the long running distance transportation and low using frequency.
Due to the battery powered factory material handling equipment has no strict requirement for the construction of the railway, it has become a competitive handling tool which has been widely used in factory,manufacturing shop, assembly line, shipyard,warehouse etc.
|
Model
|
BXC-2T
|
BXC-5T
|
BXC-20T
|
BXC-50T
|
BXC-100T
|
|
Rated Load(T)
|
2
|
5
|
20
|
50
|
100
|
|
Length(mm)
|
2000
|
3500
|
4000
|
5500
|
6500
|
|
Width(mm)
|
1500
|
2000
|
2200
|
2500
|
2800
|
|
Height(mm)
|
450
|
500
|
550
|
650
|
900
|
|
Wheel Base(mm)
|
1200
|
2500
|
2800
|
4200
|
4900
|
|
Rail Inner Gauge(mm)
|
1200
|
1435
|
2000
|
||
|
Wheel Diameter(mm)
|
270
|
300
|
350
|
500
|
600(heavy)
|
|
Ground Clearance(mm)
|
50
|
75
|
|||
|
Running Speed(m/min)
|
0-25
|
0-20
|
|||
|
Motor Power(Kw)
|
1
|
1.2
|
2.2
|
5
|
10
|
|
Max Wheel Load(KN)
|
14.4
|
25.8
|
77.7
|
174
|
343.8
|
|
Reference Weight(t)
|
2.8
|
3.6
|
5.9
|
8
|
14.6
|
|
Recommedded Rail Model
|
P15
|
P18
|
P24
|
P43
|
QU100
|
Workmanship
Henan Perfect Handling Equipment Co., Ltd. is specializing in the Design and Manufacture of transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Scissor Lift Tables, Turntables and many other specialty items. We design our special transfer cars for all kind of industries. We can manufacture them according to clients' specifications. For example, we can prepare them to be used in rails, with autonomous batteries or for special applications.
