Product Details:
Payment & Shipping Terms:
|
| Product Name: | Battery Transfer Cart | Powered Source: | Storaged Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Rail Gauge: | 1435mm (Customized) | Working Time: | 4-5 Hours |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Parameter: | 3600*2000*530 |
| High Light: | Electric Pallet Handling Die Transfer Car,Q235B Motorized Rail Cart,1435mm Rail Gauge Die Transfer Car |
||

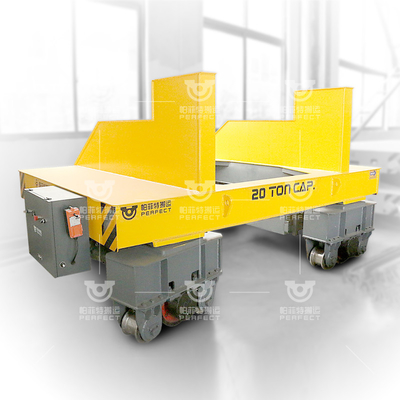

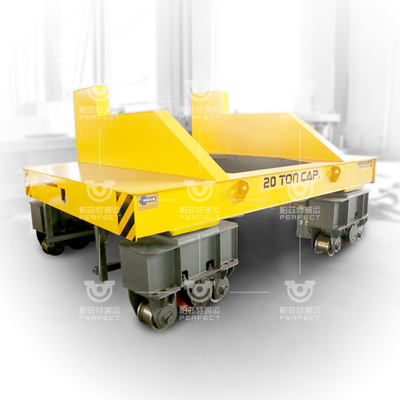

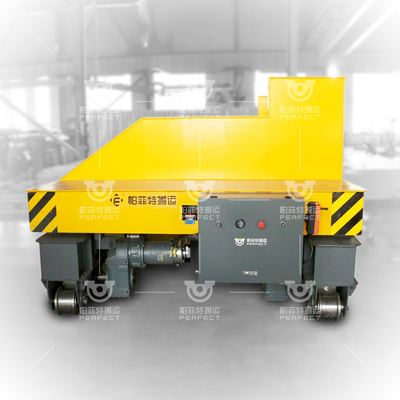

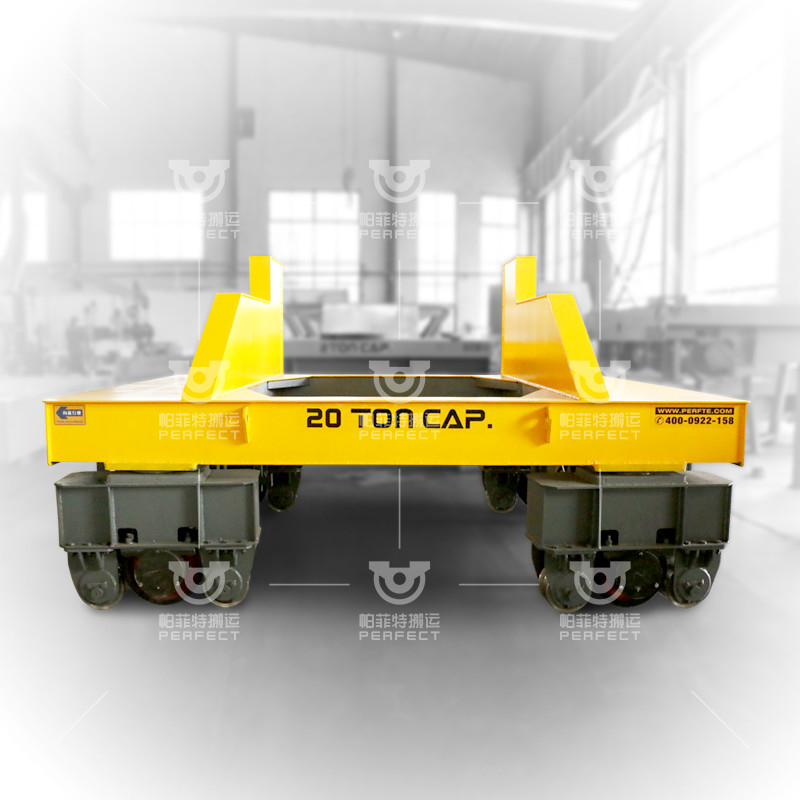

Motorized Rail Cart / Die Transfer Car Electric Pallet Handling Transfer Car
Introduction
PERFECT's Pallet Handling Transfer Car movable platforms used for the horizontal movement of materials, assemblies and other items. It is powered by storage battery, which is installed on the transfer carts. These Pallet Handling Transfer Car are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. Usually the Pallet Handling Transfer Car are used to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others.These heavy loads transport carriage are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.
Application
Uses of Pallet Handling Transfer Car :
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Pallet Handling Transfer Car solution you need. They are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. Also the pallet handling transfer car be used as a stable yet moveable machine base. With four different styles and standard capacities up to 200 tons, we have the solution you need and each style can be designed for your specific application.
Parameters
| Model | BXC-10Ton | |
| Rated Load(t) | 10 | |
| Impacted rated load(t) | 15 | |
| Structure of Frame | Steel plates welded, beam | |
| thickness of the steel plate | 10 | |
| Cart weight(t) | 5.3 | |
| Max. wheel load (t) | 4.6 | |
| Ground requirement | Cement floor or Steel plate ground | |
| Ground Clearance(mm) | 50 | |
| Table size (mm) | 3600*2000 | |
| Height of the whole cart (mm) | 530 | |
| Wheel base (mm) | 1500 | |
| Axles distance (mm) | 3100 | |
| Turning radius (mm) |
3101 |
|
| Running Speed(m/min) | 0-15 | |
| Brake Principle | Electric Magnetic | |
Sales Service
We make sure that the load bearing safety factor of the trolley is no less than 120%.We also provide freely design of the auxiliary device or foundation drawing, and offer the technical service and drawing material.
We have full confidence and high responsibilities in our products. With quick quality information feedback system and technology service team, we can provide with high quality service for you. Our guarantee period is 12 months, after making sure the product is working well. During this period, we can repair, change the machine for you freely. After this period, we only charge cost price for you. We can also help you to fit, adjust the equipment till they work normally. We are striving for high quality for you all the way!
