| Type: | Material Trackless Transfer Cart | Ground Clearance(mm): | 50 |
|---|---|---|---|
| Wheel Base(mm): | 1500-1800 | Turnning Radius(mm): | 2501-5201 |
| Axles Distance(mm): | 2500-5200 | Motor Power(Kw): | 3.5-15 |
| Product Name: | Carbon Steel Motorized Trackless Material Transfer Cart With DC Motorized Industrial Handling Equipment | Impacted Rated Load(t): | 7.5-75 |
| High Light: | 25ton Automated Transfer Trolley Wagon,Carbon Steel Motorized Transfer Trolley Wagon |
||

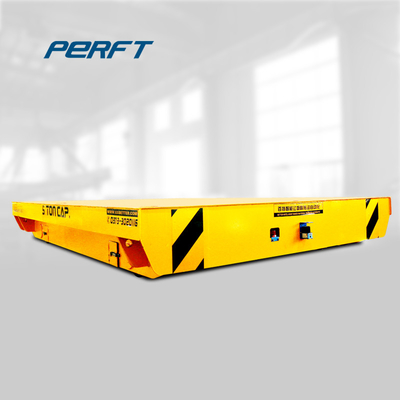

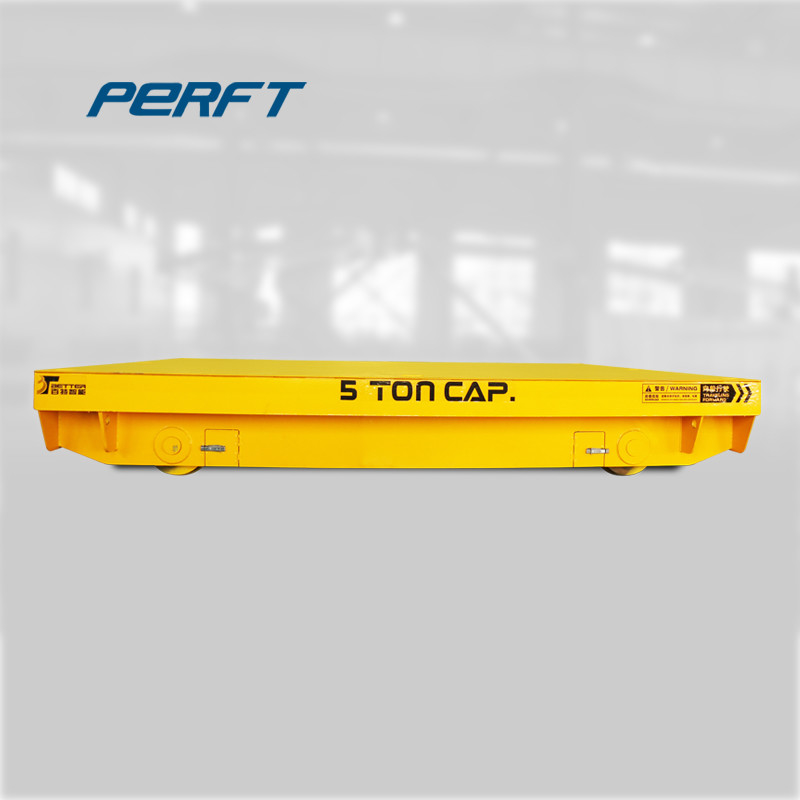

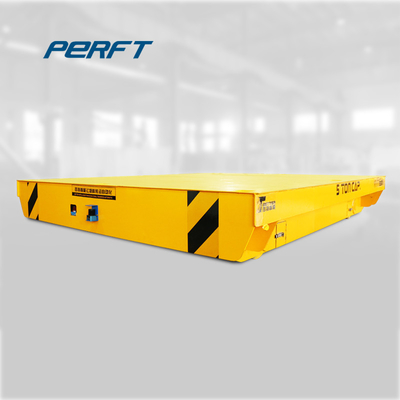

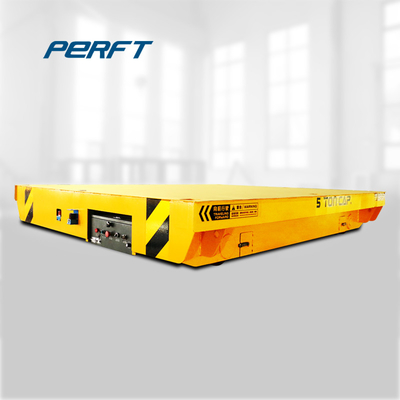

Carbon Steel Motorized 25t Steel Coil Automated Transfer Trolley Wagon
The BWP series Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment is battery powered.The Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment gets rid of the rails,which can be turn to 360 degrees on the cemment floor freely. The material equipped caarbon steel.The Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment can add hydraulic lifting device for factory warehouse coils transport if need.
Advantages
1.No orbital restrictions.
2.Run freely, go forward, back forward, turning.etc with the wireless remote control.
3.Battery powered, you can choose the cable reel,railguided...also.
4.Can turn to 360 degree.
5.No harm to the cemment floor.
6.The trackless material transfer cart are customized as per your true demand.
7.Can add V/U shape to the material transfer cart.
8.On the outdoor or indoor work condition,and required cemment floor.
Preview
Our steel coil automated transfer trolley are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Application
Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment, literally speak,is a electric flat transfer cart without rails, which is the special type compared with traditional rail flat transfer cart. More importantly,The Carbon Steel Motorized Trackless Material Transfer Cart with DC Motorized Industrial Handling Equipment has been new favorite in the industry transport field all over the world with hot market. Especially for the workshop that it exists unfixed running distance.
Packeging
For length is less than 6m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
