Product Details:
Payment & Shipping Terms:
|
| Motor Power(Kw): | 3.5-15 | Running Speed(m/min): | 20 |
|---|---|---|---|
| Product Name: | 10 T Material Handling Electric Battery Powered Transfer Cart | Material: | Carbon Steel |
| Turnning Radius(mm): | 2501-5201 | Axles Distance(mm): | 2500-5200 |
| Running Speed(m/min): | 0-15 | ||
| High Light: | Steerable Molten Metal Transfer Cart,10Ton Material Handling Metal Transfer Cart |
||

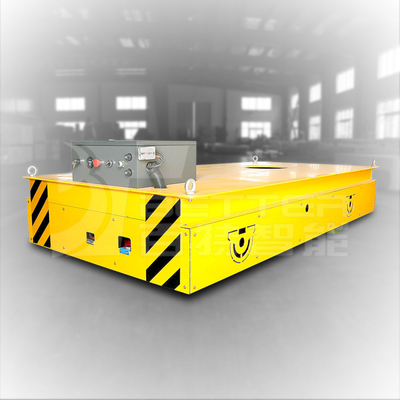

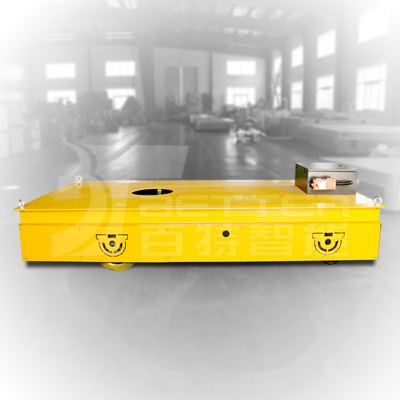

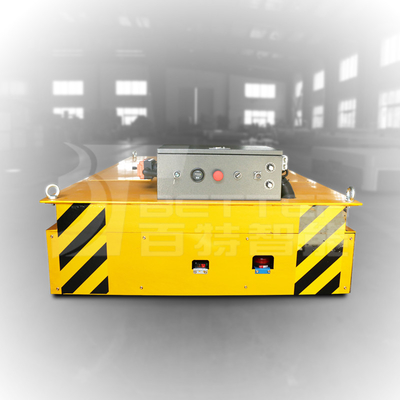

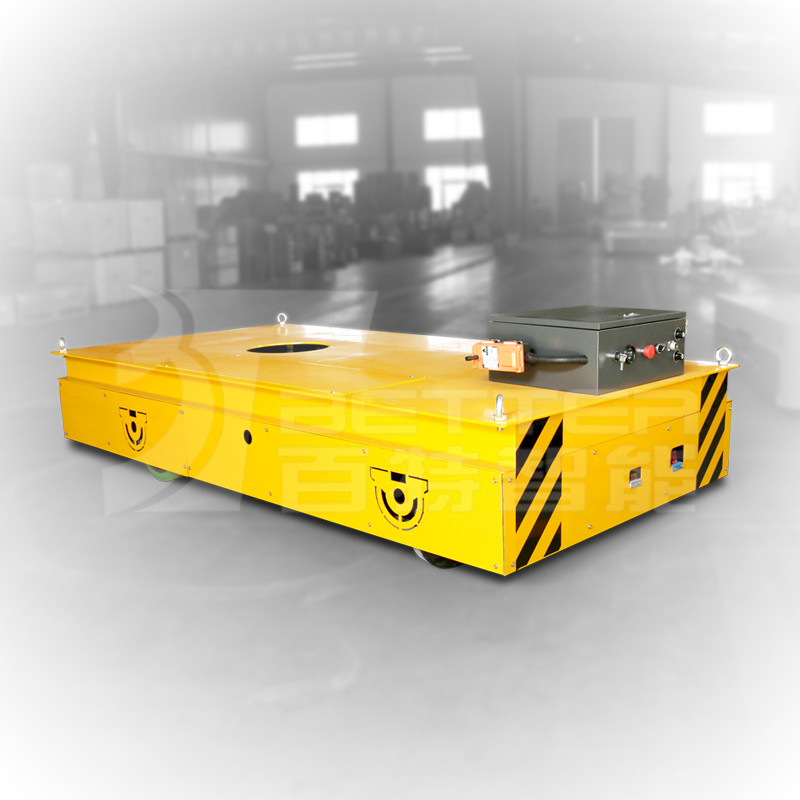

10 t Material handling Steerable Molten Metal Transfer Cart For ware house
Advantages
1.Running freely on the cemment floor.
2.Not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning.etc.
3.Power supply ways can be customized.
4.No damage to the cemment floor.
5.Can be customizable,such as:capacity,table size,running speed,supply power...
6.PLC system.
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Customization
─ Deck Railings
─ Wood Decking Material
─ Screw-Jack Lift Deck
─ Paint Color (customer specified)
─ Rail Guides
─ Running on Floor or Rail
─ End Stops
─ Urethane Wheels (not available on guided carts)
─ Live Axle
