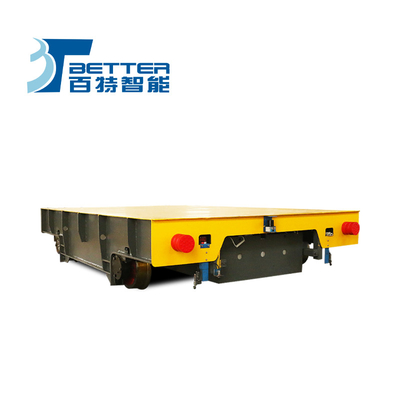

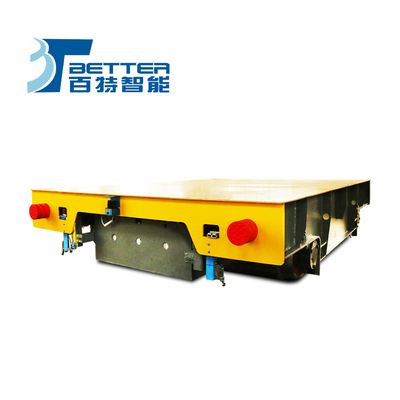

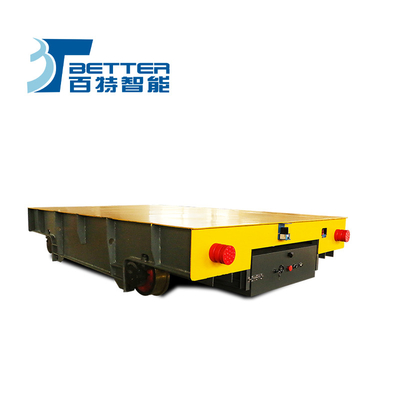

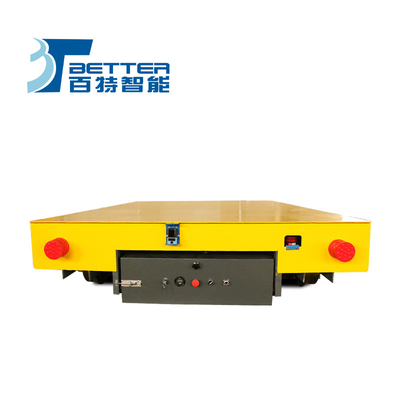

| Product Name: | Busbar Powered Transfer Car For Factory Material Handling Equipment Trailer | ||
|---|---|---|---|
| High Light: | 35t Rail Transfer Wagon,Busbar Powered 35t Rail Transfer Wagon |
||
Introduction
The rail transfer wagon along a fixed path loads up to 300 tons. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base. These rail transfer equipment are mounted on steel rail for shuttling along a fixed path. They can be DC battery powered or AC powered. Typically used for moving materials such as steel tubes, tanks of liquids, steel coils, steel beams, machine parts from one location to another. Standard sizes from 4 x 4 to 6 x 8. Larger cart capacities and sizes are available for specific applications.
Advantage:
1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 1,000t
3. Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
4. Robust sturdy cart frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
| Model | BHX-2t | BHX-20t | BHX-50t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Will A Railway Truck Be A Good Solution?
Since there are many material handling solutions on the market which one is the right choice? For starters, transfer trucks are movable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Truck?
Transfer railway truck is an excellent affordable choice for the ability to handle heavy loads. The railway trucks are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the truck deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
