Custom Battery Steel Coils Railway Transport Cart Railway Platform For Building Site

Name: Custom Battery Steel Coils Railway Transport Cart Railway Platform For Building Site
Brand: PERFECT
SKU: BXC
Price: 1 USD
Availability: InStock
Rating: 4.5 (151 reviews)

Large Image : Custom Battery Steel Coils Railway Transport Cart Railway Platform For Building Site

Product Details:

Place of Origin:	Xinxiang, China
Brand Name:	PERFECT
Certification:	CE, SGS, ISO
Model Number:	BXC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time:	45 Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	75 Sets per month

Contact Now

Detailed Product Description

Powered Source:	Storage Battery / Lead-acid Battery	Operation Mode:	Pandent And Remote Controller And PLC
Cart Frame:	Q235B	Rail Gauge:	1435mm (Customized)
Color:	Yellow/Customized	Running Distance:	No Limited
Wheel Type:	Cast Steel Wheel	Safrty Device:	Buffer, Alarm Light, Emergency Stop Buttons
Special Function:	Anti-Explosion, Heat-Resistant, Lifting, Dumpling	Dimension:	Customized
High Light:	Q235B Steel Coils Railway Transport Cart , SGS Railway Transport Cart

Custom Battery Steel Coils Railway Transport Cart Railway Platform for Building Site

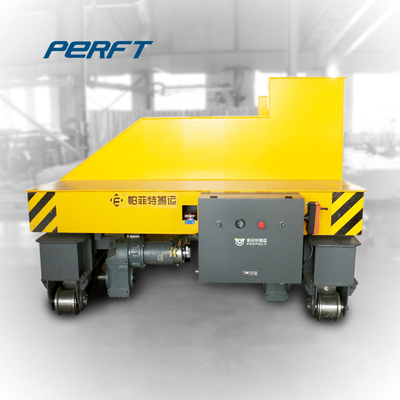

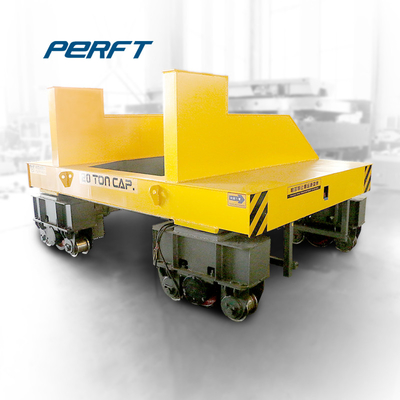

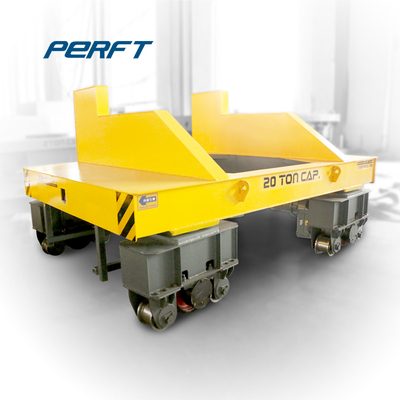

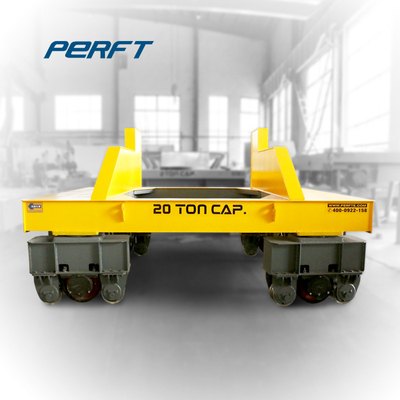

Preview steel coils cart

Our coil transfer cart are used to transport steel coils and pipes for metal industry. This coil transfer Cars are designed to be an extremely cost effective, safe and flexible load moving alternative.
The steel coil rail car is also called a heavy transporter, headless transporter or self-propelled modular transporter. Our coil transfer carts are specially designed for coil, pipe and other round material transportation. When the goods are loaded, we can make sure the car moves safely and the goods are in a very safe condition.

Application of Electric Railway Platform

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

Steel mill: transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc

Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc

Chemical plant: Transfer materials and large machine parts;

Building Sites: Load cement concrete and building machinery;

Port: used for the container and cargoes shuttle;

Characters of Electric Railway Platform

Anti-explosion
Anti-high temperature
Suitable for ferry condition
Apply to various occasions
Stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.
It has no strict requirement for the construction of the railway
No limit of moving distance
Safe and convenient operation for there is no wire outside the car
Adjustable speed

Technical Parameters of Electric Railway Platform

BXC SERIES TRANSFER CART TECHNICAL PARAMETER TABLE
Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(Km)		6.5	4.8	4	3.8	3.2
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.8	5.9	8	14.6	26.8
Recommended Rail Model		P15	P24	P43	QU100	QU100

Why choose us?

PERFECT's electric railway platforms are all by no less than 120% Load Bearing Safety test before shipping.
PERFECT's electric railway platforms are all trustworthy and legitimate names in the industry.
PERFECT's electric railway platforms are design and built meeting JB/T6127-10 and Crane Girder Standards ensure durability and long lifetime.
PERFECT's electric railway platforms' manufacturing capacity range from 1 ton to 300 tons.
All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large load capacity.
Working normally before shipping and easy operation,No need professional training operator.
Heady duty packaging to provide protection during shipping.
More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shop of factory material transfer carts.
We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail cart drawing and operation manual.

Advantages

Low noise
It's powered by electric devices, so when you are operating it, you can't feel much noise. It causes low noise level and give workers a good working environment.
Maximum safety
We always try our best to make sure the safety of the operators and the material handled. We do care the safety of everyone involved in the job.
Easy for operation
Our vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best by using our products.
Easy to implement into manufacturing process
Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight
The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

About Us

PERFECT design and manufacture virtually any type of material transfer car. Recent contracts have included bespoke ladle transfer car to cater for metallurgy use; high capacity rail cart for the transport of minerals and well wagons filled with remote controller for the safe movement of thermal product. And The material transfer cart has proven to be a huge time saver for manufacture.
