| Propulsion: | Storage Battery / Optional | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Cart Frame: | Q235B | Runing Speed: | 0-30m/min |
| Color: | Yellow/blue/gray/Customized | Running Distance: | No Limited |
| Wheel Type: | Polyurethane Coated Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| High Light: | 30m/min Cart Steel Warehouse Carts,20ton Cart Steel Warehouse Carts |
||

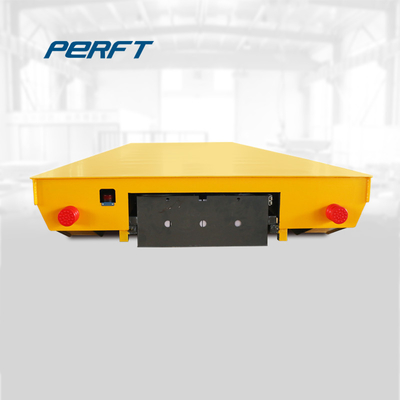

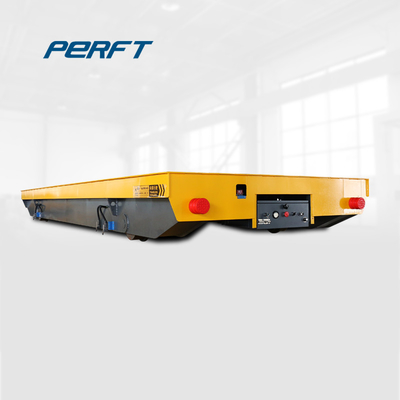

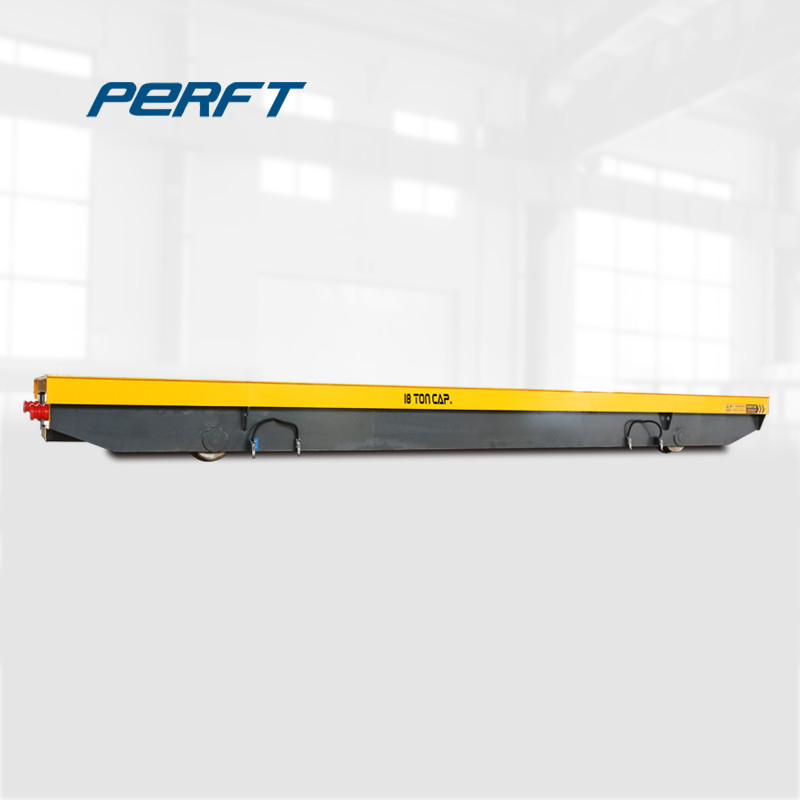

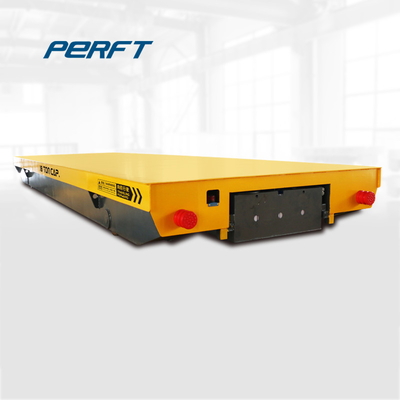

With the functions of steady traveling, poleless speed regulation, PERFECT transfer trolley is commonly applied to transfer steel ladle, scrap,aluminum ladle, lead ladle, steel slag etc. We use this kind of scrap transfer trolley to moving and transporting hot metal ladles or scrap bucket to the ingot casting machines or within the plant itself.
Generally the outer surface temperature of the scrap bucket is 200-300 degree, due to the high temperature the scrap transfer trolley should be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance. It can avoid the transfer trolley from damaging and shortening using time. In order to avoid the scrap bucket transfer trolley broken during working, there equipped two sets driving system, if the main driving system is broken, the spare driving system can be start at the same time.
The energy transfer facility in PERFECT company material transport solution is designed for transporting heavy cargoes or equipment from one bay to another in factory. It can be used indoor or outdoor. The fields include metallurgy, foundry, new factory construction and shipbuilding and so on.
With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application. Our material transport solution model main contains BXC, BWP, BDG, BHX, BQY and BGJ.
If you are unsure as to what type of the material transport solution will best serve your needs. Spending a few minutes now discussing the needs of your application could save you much time in the future. According to your business needs, we will provides you with the most professional products ,our products are found in all sectors, with excellent craftsmanship and technical team, and our transport solutions in various industries have been widely used.
Parameter table
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Henan Perfect Handling Equipment Co., Ltd who is one of the leading industry of material handling equipment.We are professional in designing and manufacturing rail guided transfer carts, steerable transfer car, battery powered transfer cart for more than 10 years. We have one big factory in Henan province with excellent engineers and designers for your orders.
