Product Details:
Payment & Shipping Terms:
|
| Application: | Die Plant/Heavy Industry/Steel Mill/Wharf/Air Port | Load Capacity: | Customized |
|---|---|---|---|
| Power Mode: | Storage Battery | Control Mode: | Pendant/Remote/PLC Control |
| Material: | Q235 | Dimension: | Customized |
| Runing Speed: | 0-25m/min | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Turning Structure: | Mechanical | Battery Type: | Free Of Maintenance |
| High Light: | 50ton Motorized Material Transfer Cart,Q235 No Rail Material Transfer Cart,25m/min Rail Transfer Cart |
||

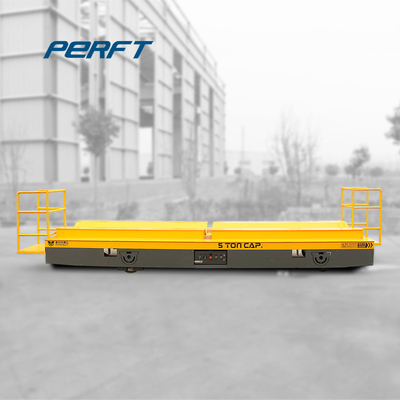

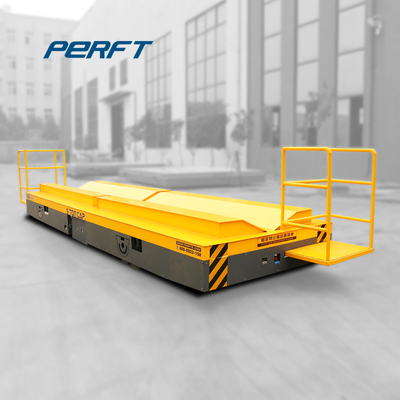

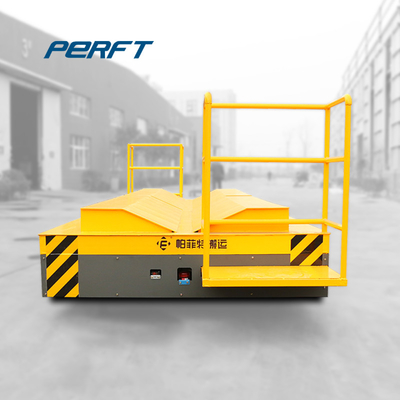

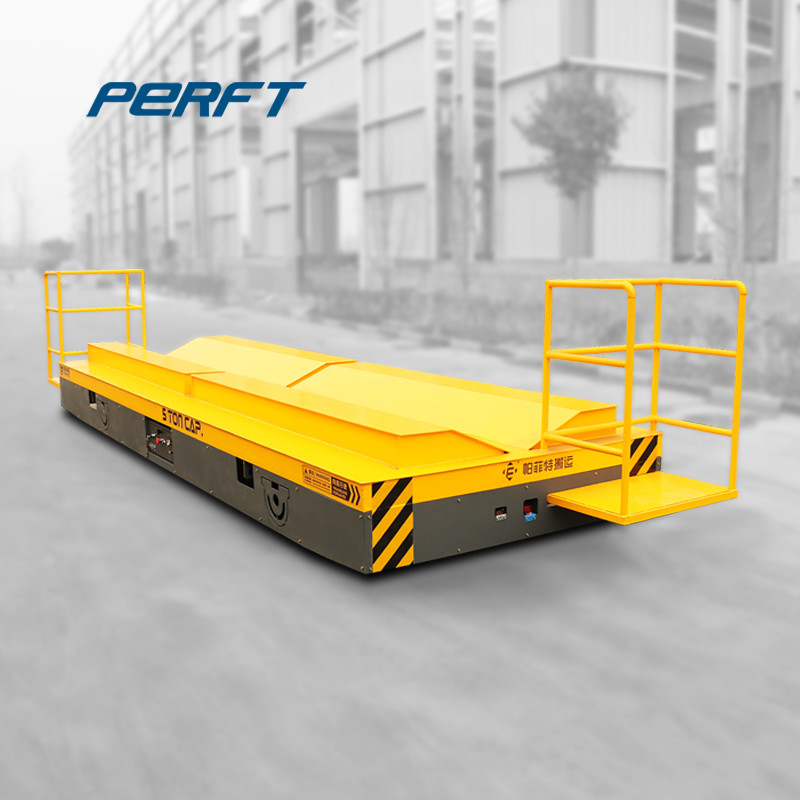

No Rail Industrial Heavy Duty Motorized Material Transfer Cart
Description
Motorized Material Transfer Trolley is powered by storage battery, runs on cement floor or steel plate ground.
The Motorized Material Transfer Trolley is mainly applied to convey heavy cargoes from one location to another in the workshop.
For the Motorized Material Transfer Trolley, It's easy to turn 360 degrees at a minimum turning radius.
The operation ways are hand held push button and remote control, the steering wheel sets coordinate with die wheel sets to carry the loads on the customized platform.
This series flat cart's power source is DC motor power, through reducer enlarge the torque and provide power to die wheel sets.
The safety device is LED audible and visual alarm as warning symbol, and the external automatic charger is equipped for battery recharge.
Battery is easy to replace within 5min , full load continuous running 6 hours , the Intelligent charging device can charge the battery full within 8 hours.
So Motorized Material Transfer Trolley was widely used in machinery factories, warehouses and metallurgical plants as a workshop transport or with the crane transport heavy loads over cross.
Application of Electric No Rail Material Transfer Carts
PERFECT motorized material trolleys are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances.
And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
Product Parameter
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
