Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | Customized | Operation Mode: | Pandent And Remote Controller Or PLC |
|---|---|---|---|
| Application: | Factory, Warehouse, Port, Construction, Steel Structure | Color: | Customized |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Dimension: | Customized | ||
| High Light: | Heavy Industry Motorized Trackless Flatbed,PLC Motorized Trackless Flatbed,1200mm Material Transfer Cart |
||
Introduction

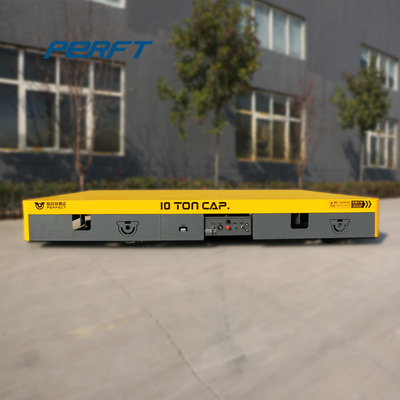

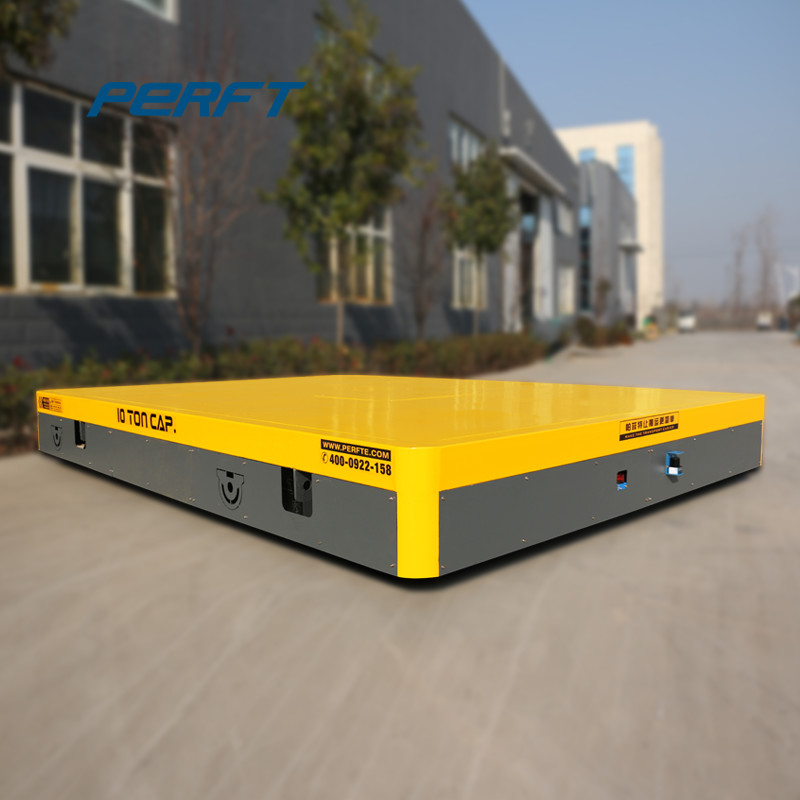

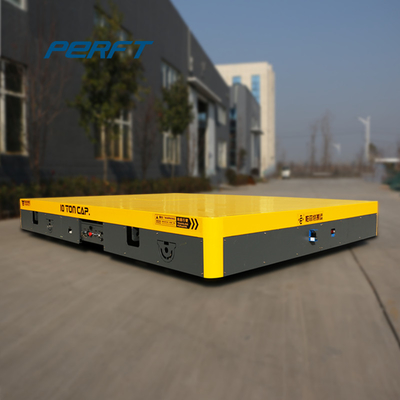

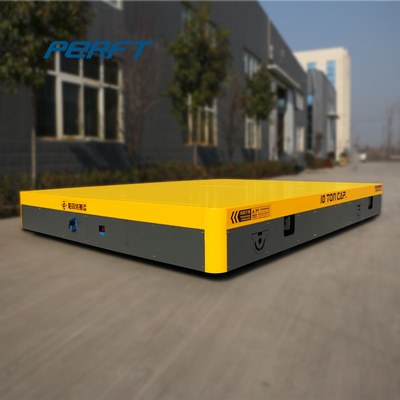

Compact in design, the motorized trackless wagon can handle upwards of 300ton and work well in areas with limited floor space. These motorized trackless wagon is more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads, The transfer carts of material handling equipment running on cement can offer flexibility as they can be customized to suit specific needs. The material handling transfer carts can reduce labor costs, optimize manufacturing processes and reduce capital costs associated with forklift systems. The end result can be increased production and throughput.
Application
PERFECT motorized material trackless wagon are operating in many shipping lines, stevedores, concrete manufacturers, foundries, steel mills, etc. We have supplied Hybrid Transfer Cart in the world for moving molds inside and outside the plant by electric traction and driving long distances.And also Heavy Load Transfer Carts are mainly used to solve manoeuvrability problems in tight spaces. Due to all possible steering programs, on either one or different axles, you can achieve tight turning radious. The propulsion can be either electric for in-plant load Carts or batteries for long distances.
Parameters
| Model | BXC-2t | BXC -20t | BXC -50t | BXC -100t | BXC -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Packing and Shipment
The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
Why Choose US
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
