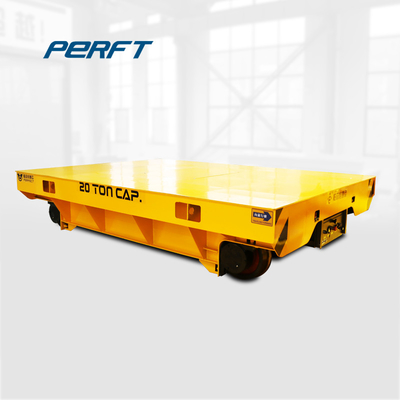

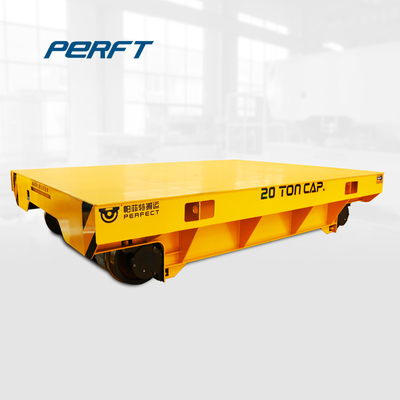

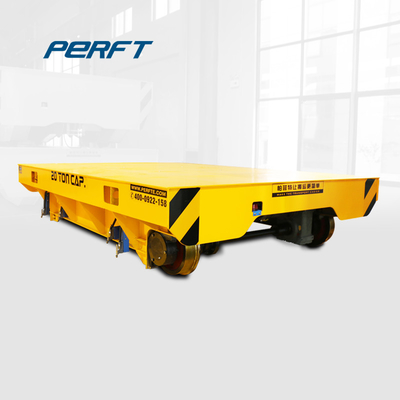

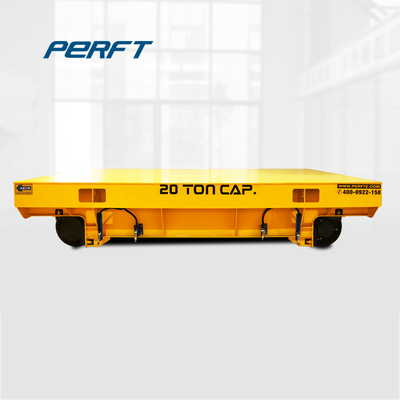

Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon

Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon
Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon

Large Image :  Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon

Product Details:
Place of Origin: Xinxiang, China
Brand Name: PERFECT
Certification: CE, SGS, ISO
Model Number: BTL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: The whole cart is package with tarp, and parts will be packed by wood case
Delivery Time: 45 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 75 Sets per month
Detailed Product Description
Powered Source: Storage Battery Operation Mode: Pandent And Remote Controller
Cart Frame: Q235B Rail Gauge: 1435mm (Customized)
Color: Yellow/Customized Wheel Type: Cast Steel Wheel
Safrty Device: Buffer, Alarm Light, Emergency Stop Buttons Special Function: Anti-Explosion, Heat-Resistant, Lifting, Dumpling
High Light:

Material Handling Electric Railway Trailer Platform

,

Steel Beam Electric Railway Trailer Platform

,

Q235B Motorized Wagon Rail Transfer Cart

Steel Beam Material Handling Electric Railway Trailer Platform Motorized Wagon



Introduction


The Electric Railway Trailer is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).



Working priciple



The Electric Railway Trailer get the power from the battery which is installed inside the car. The current is supplied to pulling motor through electric control system, which makes the car start, stop, move forward, move backward, turn around, change speed, etc. The start-up DC motors installed in the car is smooth with high torque and low voltage, so the impact force to reducer is much weaker.





Parameters



Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size (mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Height(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 200 2000
Wheel Diameter (mm) 270 350 500 600 600
Running Speed (m/min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(km) 6.5 4.8 4 3.8 3.2
Recommended Rail Model P15 P24 P43 QU100 QU100





PLC Controlled Transfer Cart Rail Drive Steel Platform Motorized Wagon

Company Strength



We design transfer cars for all kind of industries. Our versatility to manufacture this vehicle is proven by our experience and adaptations. These transfer cars can be made according to our clients’ needs and with clear commitment to meet them.

PLC Controlled Transfer Cart Rail Drive Steel Platform Motorized Wagon





Q & A

How to choose the suitable transfer cart?
All of our transfer carts can be customized as client's requirement, for choose the most suitable transfer cart, please kindly providing the following inforamtion:
  1. What material/cargo the transfer cart shuttle?
  2. What capacity do you need?
  3. What kind of ground the transfer cart operate on? (rails or cement floor)
  4. What the table size do you need? (length, width and height)
  5. How about the running distance?
  6. How many working hours in per day?
