Product Details:
Payment & Shipping Terms:
|
| Load Capacity: | Customized | Operation Mode: | Pandent And Remote Controller Or PLC |
|---|---|---|---|
| Application: | Factory, Warehouse, Port, Construction, Steel Structure | Rail Gauge: | Customized |
| Color: | Customized | Working Time: | No Limited |
| Wheel Type: | Cast Steel Wheel | Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons |
| Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling | Dimension: | Customized |
| High Light: | Motor Driven Vacuum Furnace Equipment,10t Vacuum Furnace Equipment |
||
Introduction

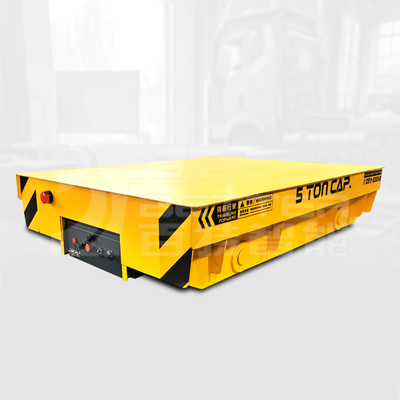

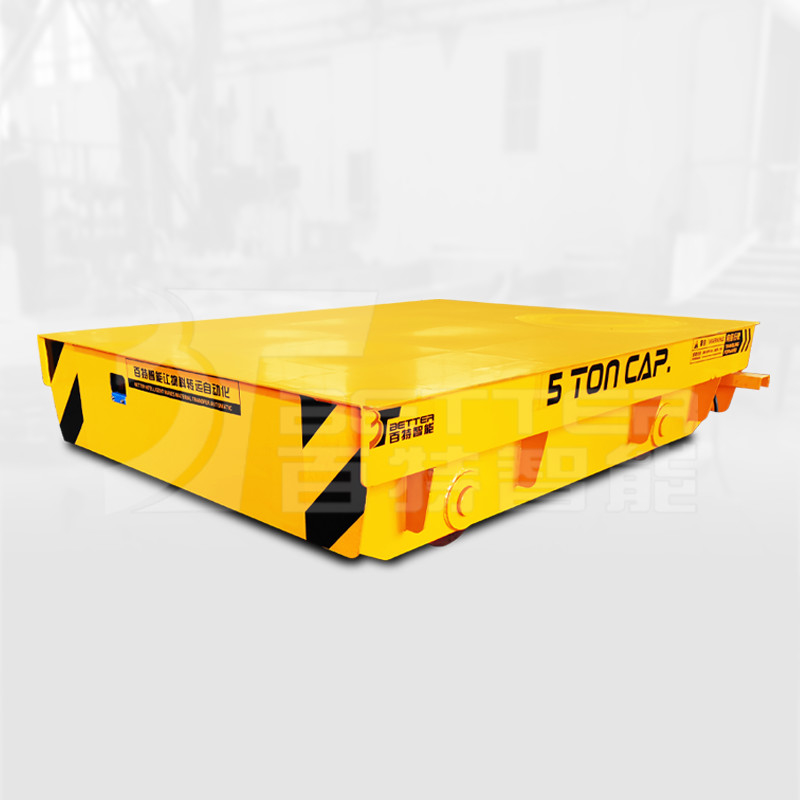

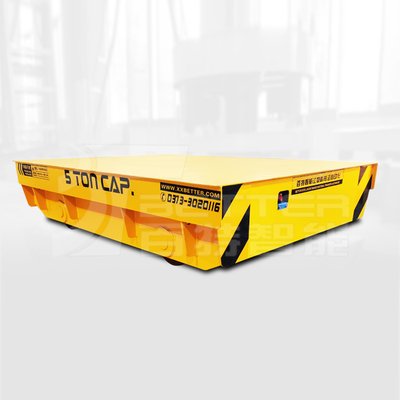

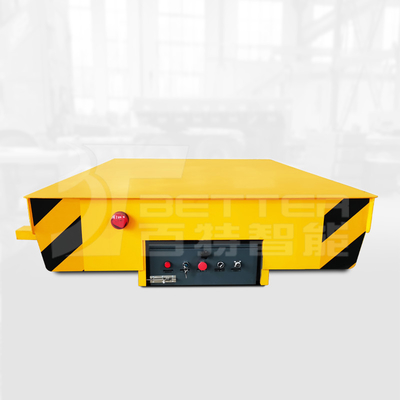

PERFECT Electric Transfer Carriage are used to transport steel coils and pipes for metal industry. This Electric Transfer Platform are designed to be an extremely cost effective, safe and flexible load moving alternative.
The Transfer Carts are manual guide vehicles equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons. The Electric Transfer Carriage is sometimes called a heavy transporter, headless transporter or self-propelled modular transporter.
Applications
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
Parameter Table
| Model | BTL-2t | BTL -20t | BTL -50t | BTL -100t | BTL -150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Advantage
1. It is a kind of detachable cart which can save money for our clients.
2. It causes low noise level and give workers a good working environment.
3. All of our products are easy for operation.
4. It could be operated in the harsh environment.
5. It can realize full automation operation.
6. High temperature and explosion proof;
7. With simple structure and cost effective;
Why Choose Us?
1. We are professional design and manufacture transfer cart company.with 15 years experience in this fields.
2. We guarantee high quality product,we do care worker's safe.
3. Our warranty is 12 months, during this period, we can maintance is for you freely, after that period,we only charge cost price.
4. Various modes including email, telephone, and online for operating guidance.
5. Flexible payment method for customers' choice.
6. Excellent engineers' team are available at the any time for customers' questions.
