| Capacity: | 1-300T | Table Size: | Customized |
|---|---|---|---|
| Running Speed: | 0-50/min(Adjustable) | Control Method: | Remote Control/Pendant |
| After-sales Service Provide: | Engineers Available To Service Machinery | ||
| High Light: | Handling Industrial Transfer Trolley,Yard Handling Material Transfer Cart,Port Industrial Transfer Trolley |
||

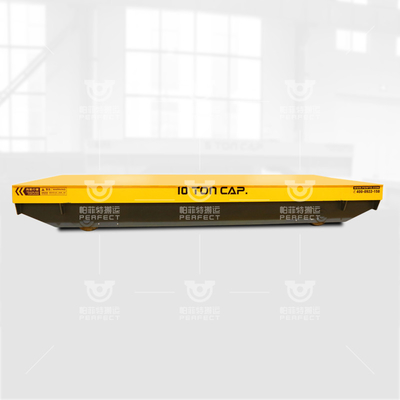

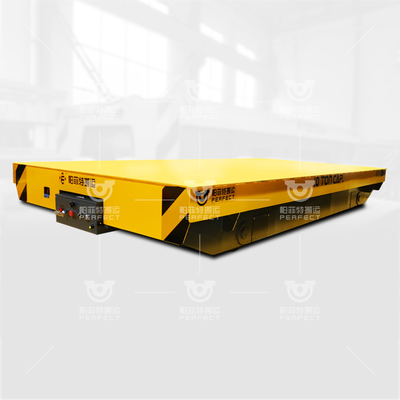

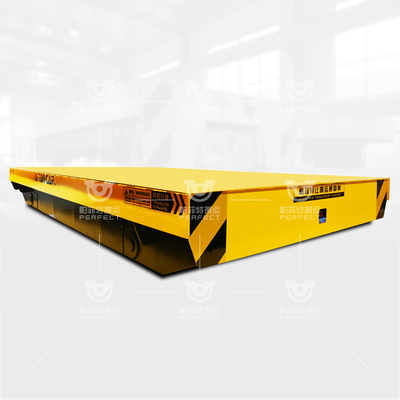

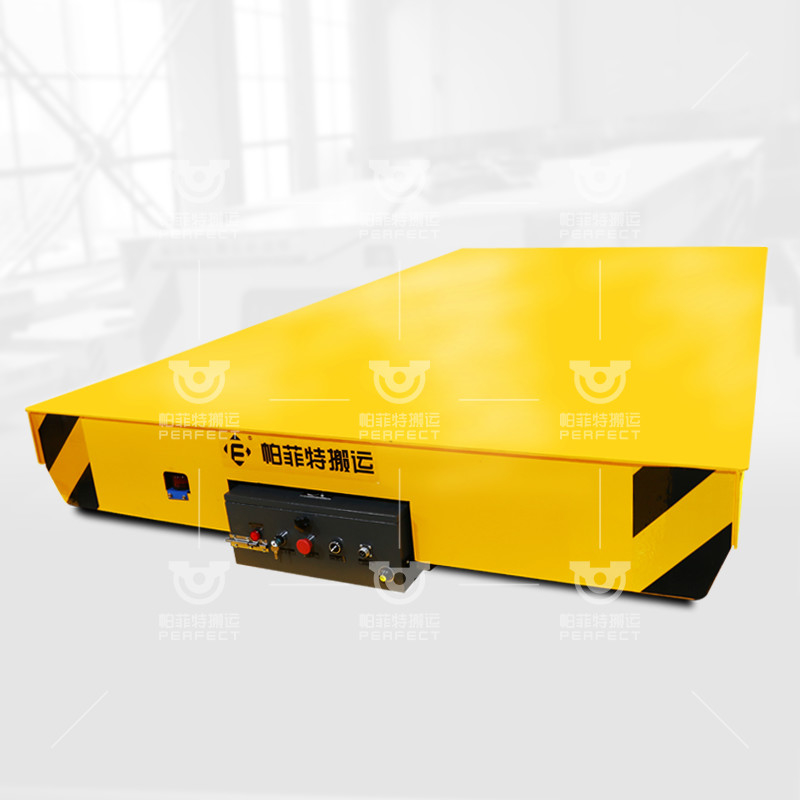

The rail transport wagon automated carrier along a fixed path loads up to 300 tons. Custom deck frames can be designed for specific assemblies to carry an entire shift of production and even serve as a stable movable machine base.
These rail transport wagon automated carriers are mounted on steel rail for shuttling along a fixed path. They get power from railway. The 380V alternating-current is transformed into safe current 36V. The current collectors mounted on trolley get the 36V current from the railway and transmit it into electronic box and thus to make the car start, stop, move forward and move backward. Combined with PLC system, full automatic operation is available. It's widely used, life long, safe and flexible.otoris
Detailsd Tr
olleys Motorised Trolleys
Typically the rail transport wagon automated carriers are used for moving materials such as steel or tanks of liquids from one location to another or carry an entire shift of production and even serve as a stable movable machine base. They can also be part of automated crane systems, serving to shuttle goods, material, or product to and from manufacturing processes or storage locations. According to customer special requirements, we would design the rail transport wagon automated carrier with special device:
Safety Device: Alarm light, bumper block, emergency stop button, radar detector, warning strip.
Table Device: V shape support, Hydraulic lifting system, dumping device, weighting system, guardrails.
Control Mode: Hand held pendant, wireless remote control, PLC control
| Model | BDGZ-2t | BDGZ-16t | BDGZ-30t | BDGZ-50t | |
| Rated Load(t) | 2 | 16 | 30 | 50 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 4500 | 5500 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | |
| Height(H) | 450 | 500 | 600 | 650 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4200 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | |
| Wheel Diameter(mm) | 270 | 350 | 400 | 500 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2 | 3.5 | 5 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 20 | |
| Transformer Quantity | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 50 | |
| Max Wheel Load(KN) | 14.4 | 64.5 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 5.5 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | |
