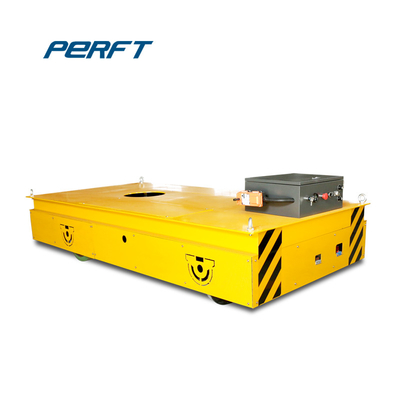

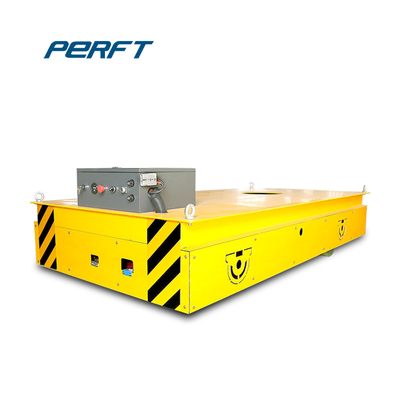

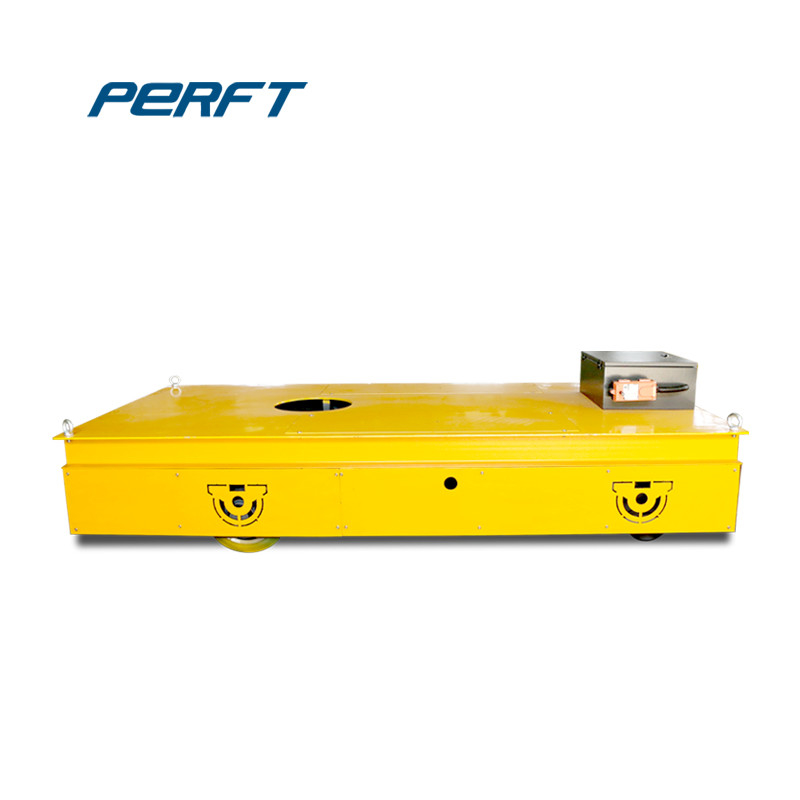

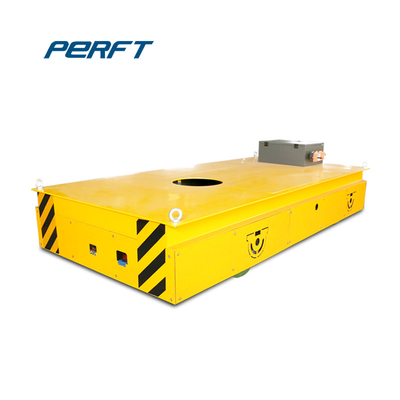

Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling

Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling
Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling

Large Image :  Steel Industry Heavy Loads Supply Transfer Vehicles In Shipyard Handling

Product Details:
Place of Origin: China(mainland)
Brand Name: cable drum power supply transfer vehicles
Certification: CE ISO SGS
Model Number: cable drum power supply transfer vehicles
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3000~6800 set
Packaging Details: trap and wooden case
Delivery Time: 20 work days after received balance payment
Supply Ability: 100sets month
Detailed Product Description
Product Name: Cable Drum Power Supply Transfer Vehicles Table Size: Customized
Color: Customized Running Speed: 0-20m/min
After-sales Service Provided: Engineers Available To Service Machinery Overseas Certificates: CE ISO SGS
High Light:

Transfer Vehicles In Shipyard Handling

,

150t Transfer Vehicles

,

Heavy Loads Transfer Carriage

Steel Industry Heavy Loads Supply Transfer Vehicles Used In Shipyard Handling

product presentation

Transfer carts are movable platforms used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, transfer carts are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.

Characters



--The Heavy Loads Transfer Carriage can be used to transfer any industrial cargo or factory heavy equipment, such as steel coils, steel pipes, ladle or billets, roller, pallet, prefabricated concrete, cement packets, etc.
--The Heavy Loads Transfer Carriage can be used in painting room, melt shop, storage warehouse, foundry plant, shipyard, 5S workshop, agriculture, etc.
--All of our Heavy Loads Transfer Carriage are equipped with such safety device: Alarm lights, buffer, emergency stop buttons and radar sensor.
--The Heavy Loads Transfer Carriage is designed depend on the working condition. You can add special function, such as lifting table, high temperature resistance, anti-explosion, etc.



Technical Parameters

Model 2t 20t 50t 100t 150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 500 600 700 1000 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 0.8 2.5 5.5 11 15
Running Distance(m) 25 30 50 50 50
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.5 5.6 7.8 14.1 26.2
Recommended Rail Model P15 P24 P43 QU100 QU100


Our after-serive
Our commitment: The load bearing safety factor of the trolley is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers
During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
