| Product Name: | AGV Battery Powered Transfer Cart Apparatus | Application: | Industrial Filed |
|---|---|---|---|
| Warranty: | 12 Months | Color: | Customized |
| Running Speed: | 0-20m/min | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Light: | BWP Battery Powered Transfer Cart,50Ton Battery Powered Transfer Cart,SGS Workshop Material Transfer Cart |
||

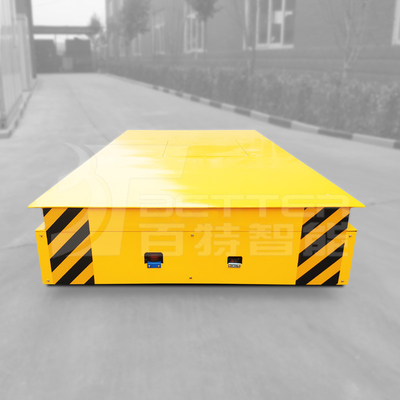

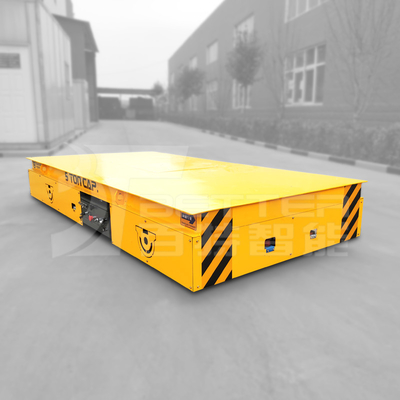

Workshop Use 50 Ton Loading Capacity BWP battery powered transfer cart apparatus
Our die cart handling vehicle is available in a number of varieties and capacities, from 10 to 300 tons. They are modular in construction and allow movement changes at ground level in all types of industries and applications. Die cart handling vehicles are also named material transfer carts that run on the shop floor level.
The die cart handling vehicle on rails or straight shifts can either be powered by batteries or cable reels. Whereas the directional free movement handling vehicles are better available as battery powered. All our products come in many sizes, styles and capacities designed to suit your operations specific needs.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
