Product Details:
Payment & Shipping Terms:
|
| Type: | Rail Transfer Cart | Motor Power: | 1-15 |
|---|---|---|---|
| Material: | Carbon Steel | Product Name: | 4 Wheel Cable Reel Guided Material Transfer Cart Can Applied In Hot Metal Ladle And Molten Steel Ladle Steel Factory |
| Running Speed(m/min): | 0-25 | Ground Clearance(mm): | 50-75 |
| Running Speed(min): | 0-25 | Rail Inner Gauge(mm): | 1200-2000 |
| High Light: | 25m/min Guided Material Transfer Cart,Drum Steel Beam Transport Cart |
||
Guided Material Transfer Cart can applied Drum Steel Beam Transport Cart
Introductions
This cable drum transport cart is powered by cable. The power source 360V alternating current is transported to the traction motor by cable. The center electric control system make the vehicle to start, stop, move forward and move backward. The voltage is safe 36V. Cable is collected and released by coiling device mounted underneath the car. It's cost-saving and long-distance running and doesn't need special rail requests.
Advantages and functions

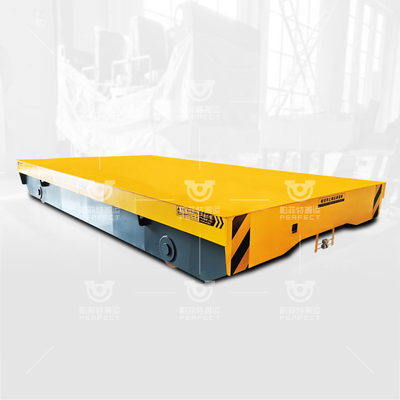

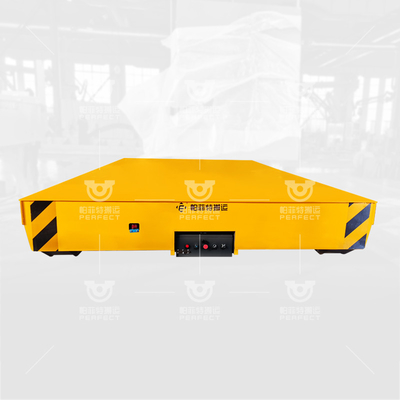

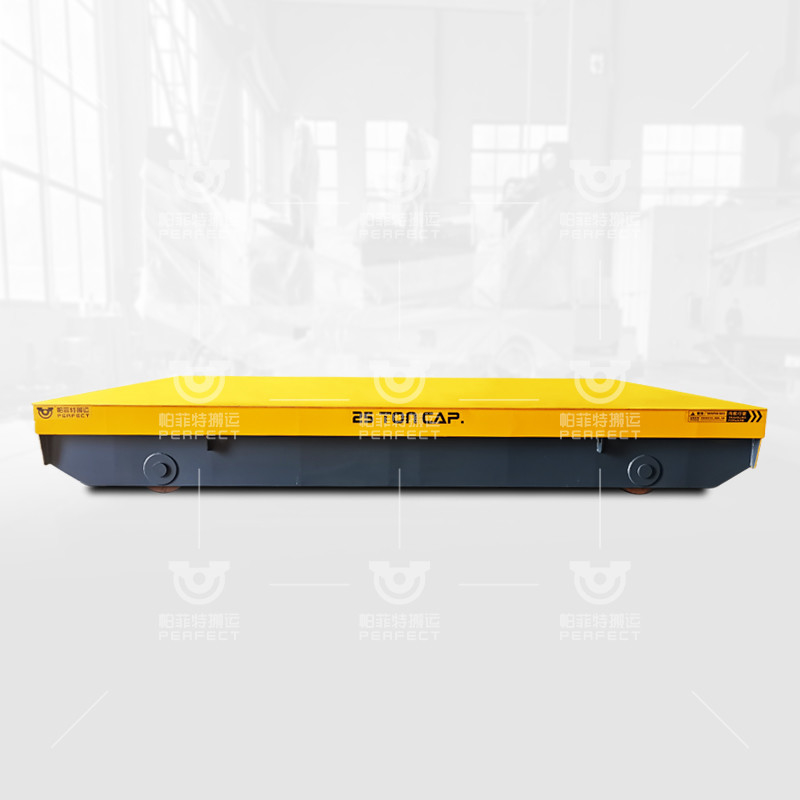

Detailed Image
Technical parameter
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
Our company
We have been specializing in steel frame trailer manufacture for over 15 years. With advanced equipment, excellent engineers and professional workers, we have got the certificates of CE, SGS, ISO.
Currently, our products not only have been sold in China, but also exported to American, Germany, Thailand, Holland, Turkey South Africa, Nepal, etc. We are becoming more and more popular around the world and get high evaluations from our cooperators.
