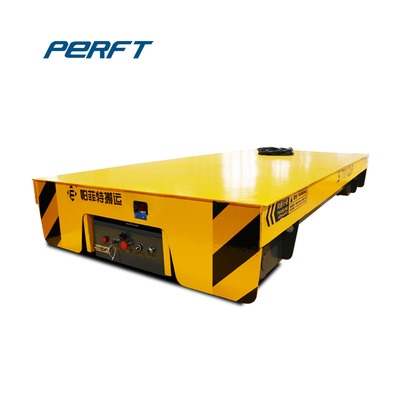

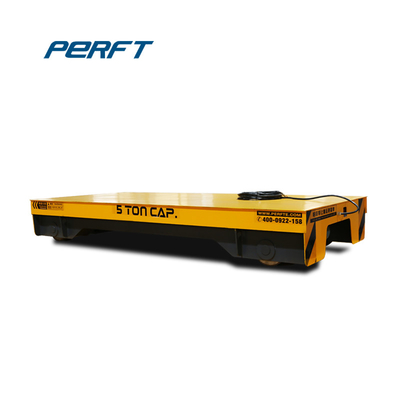

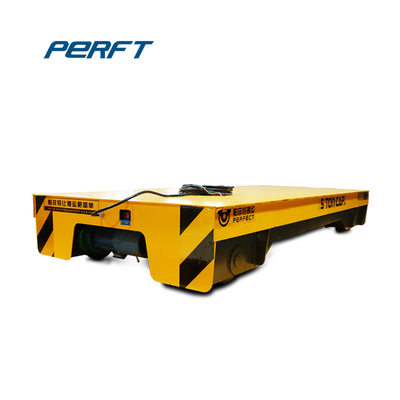

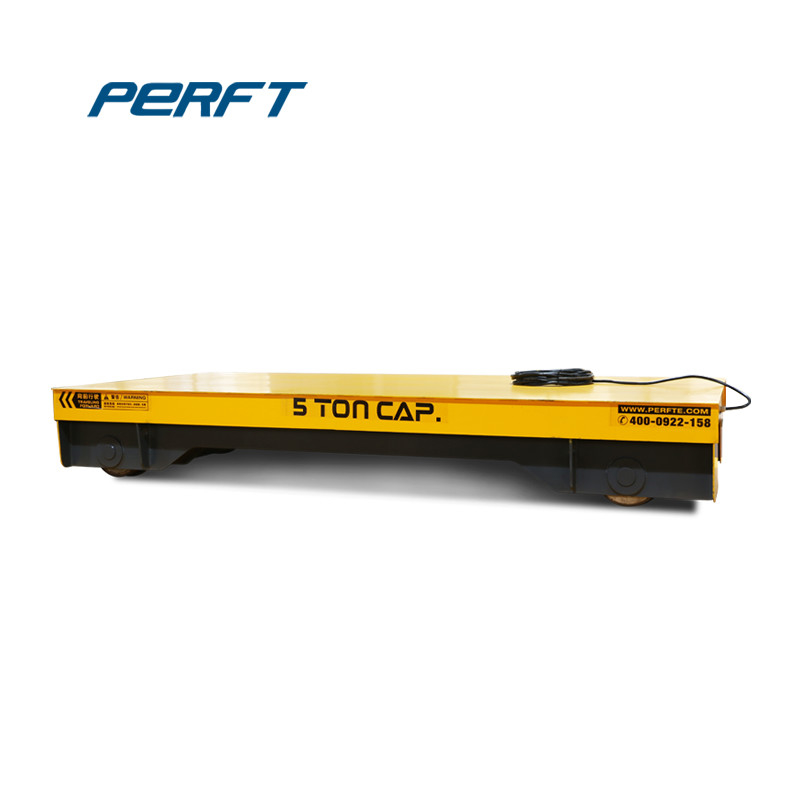

Product Details:
Payment & Shipping Terms:
|
| Product Name: | 20t Electric Transfer Trolley | Capacity: | 1-300T |
|---|---|---|---|
| Dimension: | Customized As Practical Needs | Color: | Customized |
| Application: | Industrial Filed | Feature: | Easy Operation |
| Certificates: | CE ISO SGS | ||
| High Light: | Steerable Trolley Rail Transfer Cart,Rail Transfer Cart 20t,Heavy Duty Electric Steerable Trolley |
||
Applications
e supply transfer cart in the small & large scale industries, steel industry, heavy engineering workshops, paper mill. Also we export a huge range of the extreme quality of transfer cart. With advantages of large load capacity wireless power, the transfer cart is widely applied in bridge construction to transfer bridge. In this stage, the cart is generally worked together with cranes. Transfer cart is also widely in assembly line and can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Customer visit
Henan Perfect Handling Equipment Co., Ltd. Has been committed to solve problems related to the transportation and handling of materials for any type of industries and plants. We design and manufacture transfer carts, transfer trolleys, rail guided transfer carts, industrialflat trailers, tilters and other handling equipment. We provide all customized productions as you need and search functional solutions to our customers.
