Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Lead-acid Battery | Operation Mode: | Pandent And Remote Controller And PLC |
|---|---|---|---|
| Cart Frame: | Q235B | Rail Gauge: | 1435mm (Customized) |
| Running Distance: | Ulimited | Wheel Type: | Cast Steel Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Dimension: | Customized | Guarantee Period: | 12 Months |
| High Light: | die handling equipment,powered trolley cart,Steel Material Die Transfer Cart |
||

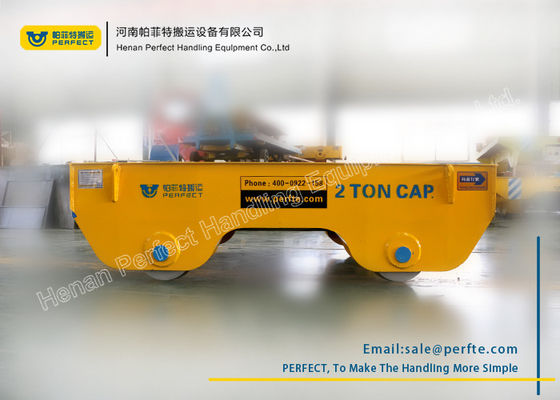

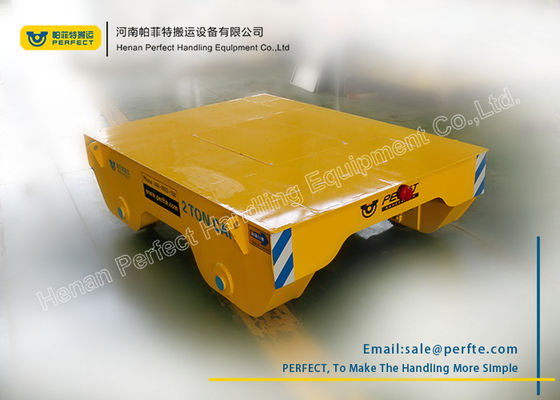

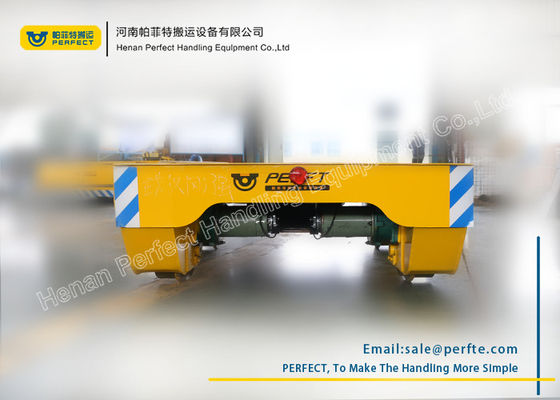

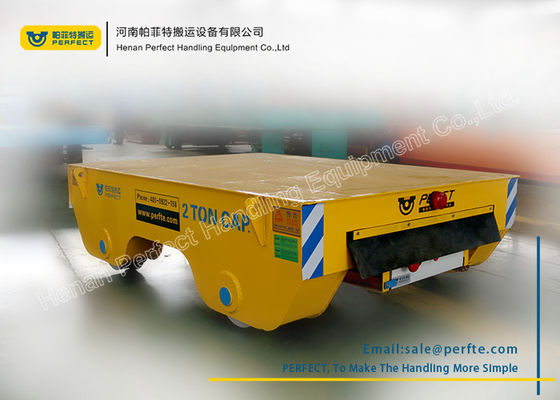

The steel material die transfer cart industrial cross trolleys (BXC-2T) is powered by the battery,the DC motor and gear reducer are controlled by DC control system to drive wheels and make the trolleys start, stop, go forward and backward, speed up and slow down and so on.This industrial cross trolleys can be used both on the 'S' and arc-shaped railways. We are professional manufacturer with more than 10 years experience in designing and producing the industrial cross trolleys.
· All of our battery industrial cross trolleys are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons.
· It can be used to transfer anything you imagine and working situations, such as steel coil, billets, bloom, ladle & scrap, locomotive, trailer, workpieces to painting shops or blasting room, etc;
· We designed and added the special device to it can apply in the high temperature and explosion working environment.
This kind of steel material die transfer cart industrial cross trolleys is powered by battery, which is lead-acid battery pack. The battery is installed in the trolleys, and supply DC electricity to the control system. It is consist of battery, motor, reducer, cart frame, electric appliance, shaft, connect shaft etc.
Our steel material die transfer cart industrial cross trolleys not only can transport all kinds of coils in steel mill, it is also can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
· Safe and environment friendly
· High start torque
· Small impact to the gear reducer
· No restriction of the running distance
· Can running on s-shape rail, arc-shape rails even perpendicular rails
· Has no limit on working distance
· Anti-explosion,Anti-high temperature
· Stable start, big starting power, long lifetime.
BXC SERIES INDUSTRIAL CROSS TROLLEYS TECHNICAL PARAMETER TABLE |
||||||
|
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Height(H) |
450 |
550 |
650 |
900 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
200 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
1 |
2.2 |
5 |
10 |
15 |
|
|
Battery Capacity |
180 |
180 |
330 |
440 |
600 |
|
|
Battery Voltage |
24 |
48 |
48 |
72 |
72 |
|
|
Running Time When Full Load |
4.32 |
4 |
3.3 |
3.2 |
2.9 |
|
|
Running Distance for One Charge(Km) |
6.5 |
4.8 |
4 |
3.8 |
3.2 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
Henan Perfect Handling Equipment Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,battery transfer trolley as one of the professional manufacturing company, which has a modernized management team and excellent staff. And our products gets CE, SGS,ISO certificate and other 8 national patent, and our products have been exported to more than 40 countries and regions.
1>. Our commitment: The load bearing safety factor of the trolley is no less than 120%.
2>.Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
3>. 16 hours engineering service and 24 hours internet service for our customers
4>. During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
5>. Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
|
Product Name |
Model No. |
Power Supply Mode |
Load Capacity |
Other Items |
Usage |
|
Rail Transfer Cart |
BDG |
Conductor Rail |
Load range 1-300ton, can be customized per client demand |
Running distance |
Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc |
|
Battery Powered Transfer Car |
BXC |
Battery |
Using frequency |
||
|
Motorized Transfer Trolley |
BJT |
Cable Drum |
Running distance |
||
|
Busbar Powered Handling Cart |
BHX |
Busbar |
Working shop |
||
|
Towed Rail Trailer |
BP |
Tractor |
1-100t |
Working shop |
|
|
Steerable Towed Car |
BWT |
Tractor |
Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded. |
Working environment |
|
|
Trackless Handling Machine |
BWP |
Battery |
Working path |
All of our battery transfer trolley all customized as client's requirement, for choose the most suitable transfer trolley, please kindly providing the following information:
· Transfer or handling what material/cargo?
· What capacity do you need?
· This transfer trolley is running on rails or ground (floor)?
· Your requirement for table size:length,width and height?
· How about the running distance?
