Product Details:
Payment & Shipping Terms:
|
| Type: | Heavy Duty Plant Trailer | Product Name: | Heavy Duty Flat Die Transfer Cart For Factory Material Handling |
|---|---|---|---|
| Ground Clearance(mm): | 50-75 | Rail Inner Gauge(mm): | 1200-2000 |
| Motor Power: | 1-15 | Material: | Carbon Steel |
| Running Time When Full Load: | 4.32 | ||
| High Light: | SGS material transfer cart,SGS electric transfer cart,ground clearance 50mm electric transfer cart |
||

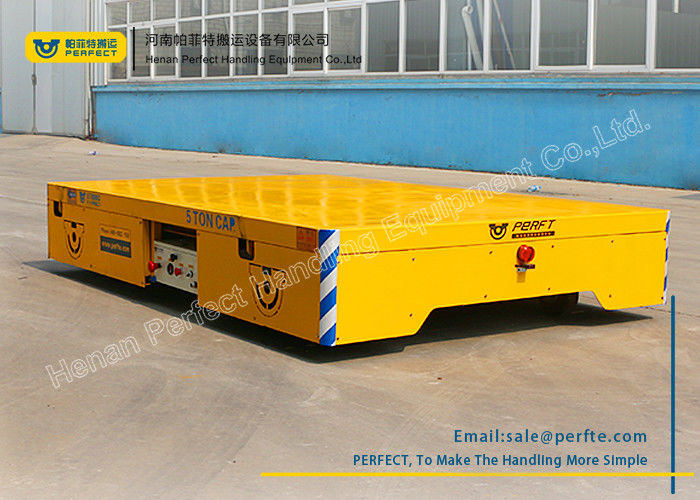

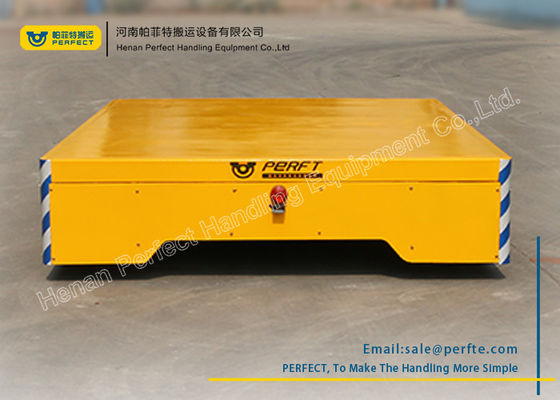

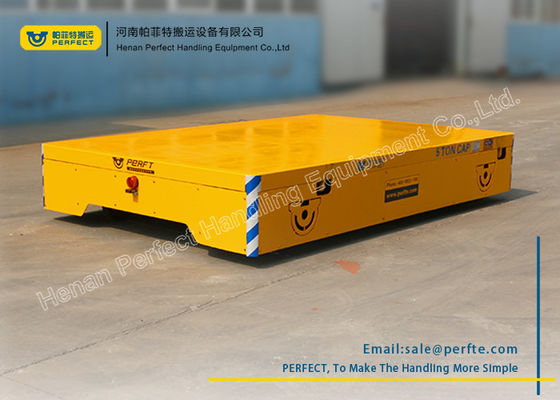

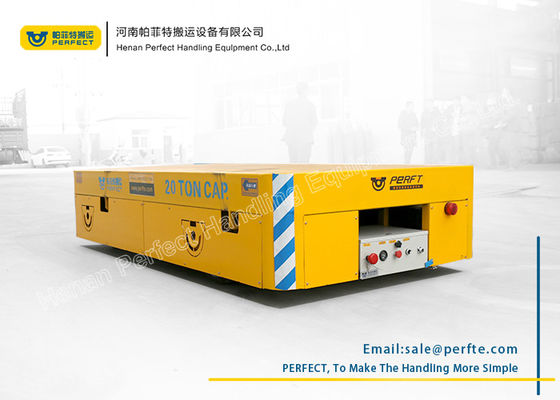

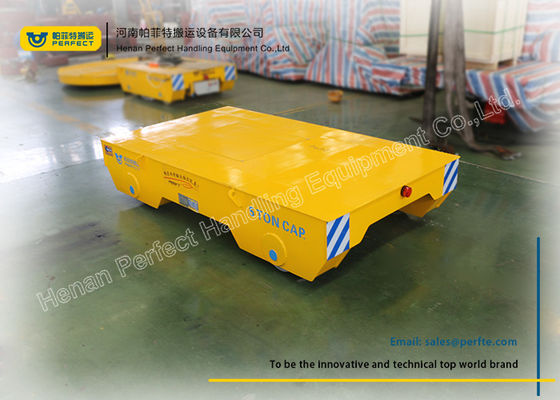

Factory use Heavy Industry Transport Trailer Material Electric Transfer Cart
Descraptions
This kind of Heavy Duty Flat Die and mold Transfer Cart for Factory Material Handling is powered by battery in the cart. DC motor and gear reducer are controlled by DC control system to drive wheels and make the transport carriage start, stop, go forward and backward, speed up and slow down and so on.kpx flat carts can be used both on the “S”and arc-shaped railways.
Advantages
1.It has no strict requirement for the construction of the railway
2.No limit of running distance
3.Safe and convenient operation for there is no wire outside the car
4.Adjustable speed
Technical parameter table
| Model | 2t | 20t | 50t | 100t | 150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | ||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | ||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | ||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | ||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | ||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | ||
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | ||
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | ||
