Product Details:
Payment & Shipping Terms:
|
| Product Name: | Electric Transfer Cart | Powered Source: | Storaged Battery |
|---|---|---|---|
| Operation Mode: | Pandent And Remote Controller | Cart Frame: | Q235B |
| Load Capacity: | 1-200T (Customized) | Color: | Yellow, Customized |
| Working Time: | 4-5 Hours | Wheel Type: | Polyurethane Coated Wheel |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Charge Time: | 6-8 Hours |
| High Light: | Steel Mill Die Trackless Transfer Trolley,Warehouse Trackless Transfer Trolley,Cargo Handling Vehicle 20Ton |
||
Introduction

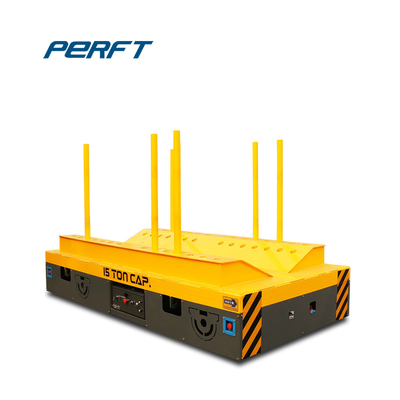

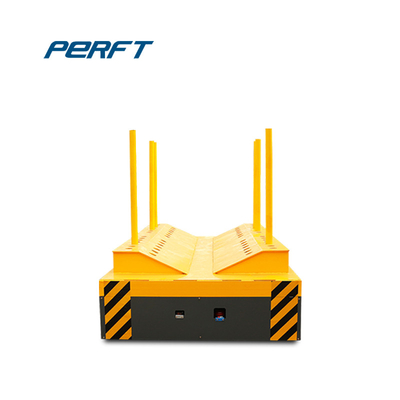

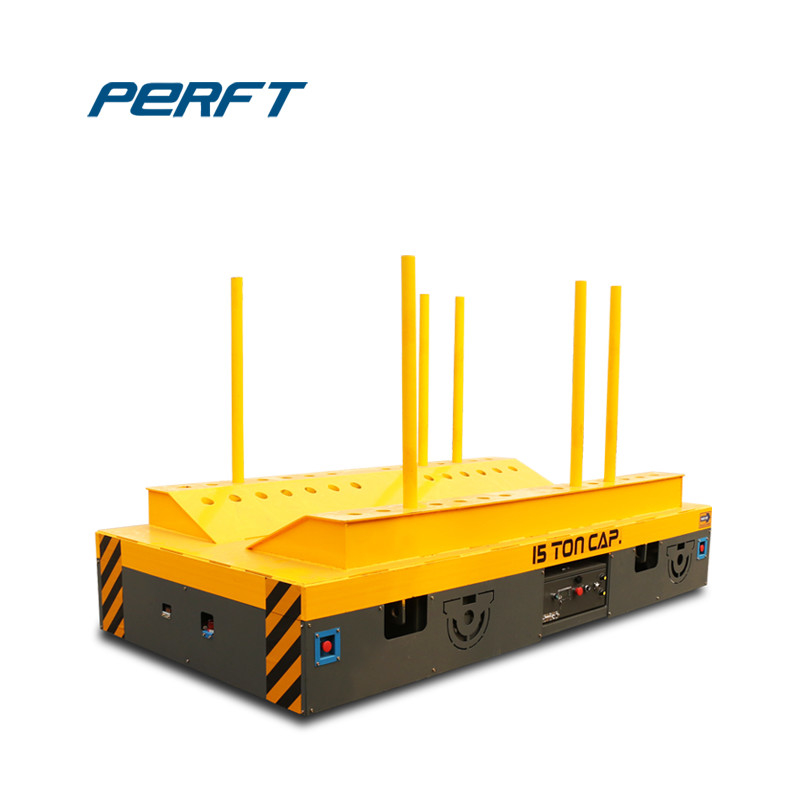

PERFECT Low Height Transfer Trolley Warehouse Cargo Handling Vehicle (16 Ton ) is also called no rail transfer cart, trackless transfer trolley, heavy transporter, headless transporter or self-propelled modular transporter.
It is a new style of material transfer tool running on ground or floor (Cement Floor/ Epoxy Flooring) for material handling, and it is easy to turn 360 degrees at a minimum turning radius.
This Low Height Transfer Trolley Warehouse Cargo Handling Vehicle is designed to be an extremely cost effective, safe and flexible load moving alternative. It is equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 200 tons.
Application of Productions
The Low Height Transfer Trolley Warehouse Cargo Handling Vehicle (16 Ton ) is used to transfer a wide range of material in horizontal way.
The cargo handling vehicle can carry loads along assembly lines;
The cargo handling vehicle can transfer material from one work station to the next;
The cargo handling vehicle store and transport an entire shift worth of production.
The cargo handling vehicle can even be used as a stable yet moveable machine base.
We have the handling solutions you need and each style can be designed for your specific application!
Parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Impacted rated load(t) | 5 | 20 | 30 | 40 | 50 |
| Structure of Frame | Steel plates welded, beam | ||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table size (mm) | 3000*2000 | 4500*2200 | 5000*2200 | 5500*2300 | 6000*2300 |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning type | Turning while driving with no stop | ||||
| Control method for turning | Control button | ||||
| Turning structure | Mechanical | ||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel material | ZG55+hydropurture | ||||
| Running speed (m/min) | 0-15 | 0-12 | |||
| Brake principle | Electric magnetic brake | ||||
| Ground balance | mechanical automatic adjustment | ||||
| Operation method | With wire or no wire | ||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces |
| Battery maintenance | Free of maintenance | ||||
| Charger's installation | Installed on cart | Split-type | |||
| Cart color | Yellow and warning sign | ||||
| Charger's function | Automatic stop for obstacles | ||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning equipment | Sound and light | ||||
| Other functions | Turning light, night light and power display | ||||
Customization
1. Outer Appearance
The Table size, Table material, Table type, Rated load, Color, Wheel base,Detachable structure can be customized.
2. Special Using
You can mount on Hydraulic lift table, Dumpling, Climbing, V shape, PLC control system, Automatic positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system and many other devices according to your specific needs.
3. Safety Device
Safety must be in the first position. We can equipment Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails and some other devices.
4. Special Design
We also have Round corner, Hold pendant box, Lifting hole. We can meet all the contents above according your previous order.
Help you to choose the most suitable cart
Thank you very much for looking through the information above. If you are interested in our products, please send us an E-mail and tell us the following information. Thank you!
