Product Details:
Payment & Shipping Terms:
|
| Powered Source: | Diesel | Operation Mode: | Pandent And Remote Controller |
|---|---|---|---|
| Material: | Q235B | Load Capacity: | 3 Ton/ Customized |
| Runing Speed: | 0-25m/min | Working Time: | 6~7 Hours |
| Safrty Device: | Buffer, Alarm Light, Emergency Stop Buttons | Special Function: | Anti-Explosion, Heat-Resistant, Lifting, Dumpling |
| Table Size: | 6000*2600*800 (Customized) | Warranty: | 12 Months |
| High Light: | heavy duty die carts,powered trolley cart,Heavy Material Transfer Cart Curved |
||
Curved Rails Moving Flat Cart Heavy Industry used Material Transfer Cart
Description of Heavy Industry used Material Transfer Cart

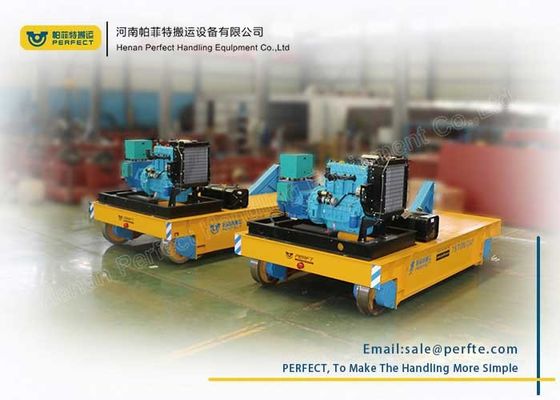

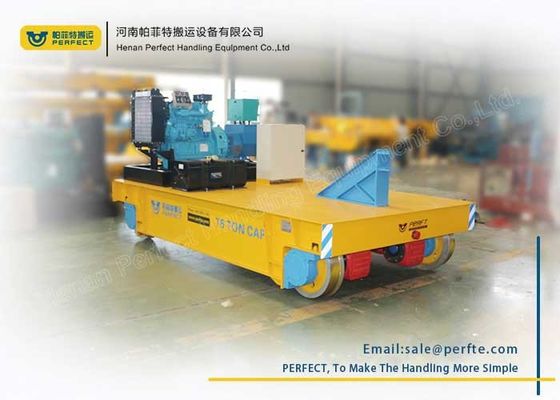

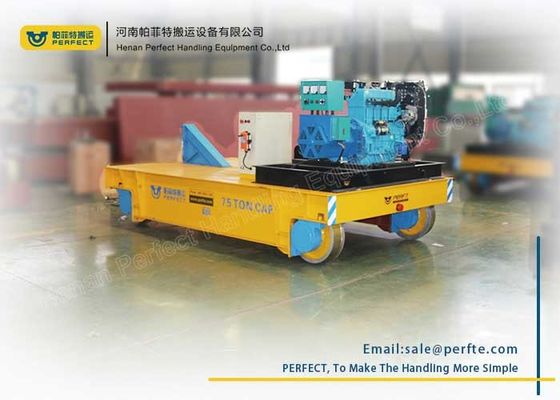

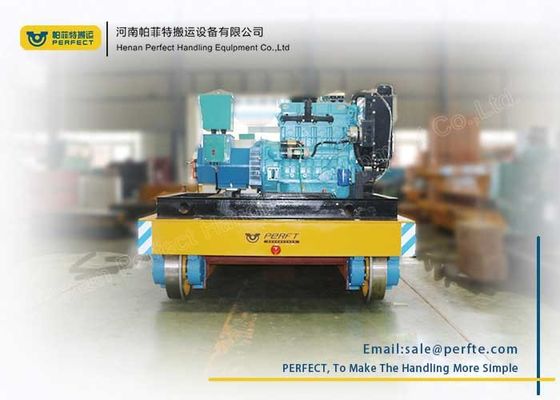

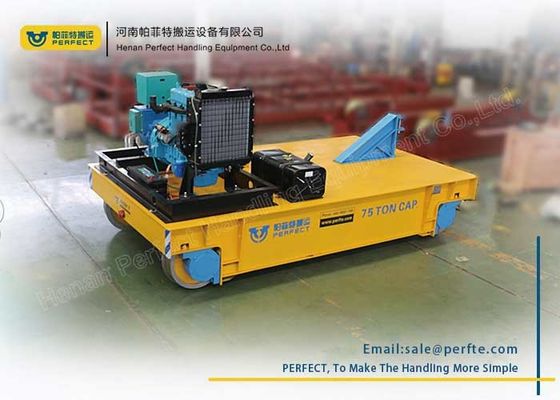

The heavy industry used material transfer cart is powered by diesel, the diesel generating set supplies to the traction motor which is controlled by control system to make the car start, stop, move forward, move backward, etc.
In addition, this kind of heavy industry used material transfer cart can run on the straight railways or on the ‘S’ and arc-shaped steel tracks or steel square bars. It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.
Other power supply mode is available if you need. In fact, all we products can be design and produced according to your special use.
Specification of Heavy Industry used Material Transfer Cart
| Model | BQY-2t | BQY-20t | BQY-50t | BQY-100t | BQY-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Application of Heavy Industry used Material Transfer Cart
The heavy industry used material transfer cart is designed for transporting heavy cargoes or equipment from one bay to another in factory both indoor and outdoor. The application fields include metallurgy, foundry, new factory construction and shipbuilding and so on.
Of course, the material transfer cart is an essential handling tool or handling carriage for many manufacture and logistics. By contrast, the material transfer cart has plenty of advantages: high safety performance, competitive cost, save labor force and crane or forklift and more environmental friendly.
Advantages of Heavy Industry used Material Transfer Cart
It can be used in the ferry condition, flammable, explosive environment and other hostile environment
It is suitable for the long running distance transportation and high using frequency
There is no strict requirements on the steel rail construction
With large loading capacity range from 1-300 tons
Box girder beam structure is deformable
Related Products
As a professional handling equipment manufacture, we provide a wide range of handling products: material transfer cart, no rail transfer trolley, battery powered handling bogie, double layers ferry car, rail conductor transfer car, busbar powered track carriage etc. and all we products can be customized. So if you need such a kind of material transfer cart, just tell us what you want, we will make it true.
Company Strength
Since 2003, we have supplied standard and custom material handling systems and equipments on time, on research and on budget, while beyond the expectations of our domestic and international customers.
All in all we make difficult things seems easy.
Our staff team is professional and available to assist you in choosing the superior solution to your heavy loads handling needs. Contact us today at 86-0373-3020456 and witness how we can provide a optional solution for your handling needs.
