Product Details:
Payment & Shipping Terms:
|
| Product Name: | 5ton Cable Reel Powered Abrasive Blasting Rail Transfer Cart As Print Industry | Type: | BTL |
|---|---|---|---|
| Capacity: | 2-150T | Wheel Base(mm): | 1200-7000 |
| Wheel Quantity: | 4 | Motor Power(Kw): | 0.8-15 |
| Running Speed(m/min): | 0-25 | Running Distance(m): | 25-50 |
| Material: | Q235 | ||
| High Light: | heavy duty die carts,powered trolley cart,Abrasive Blasting Rail Transfer Cart |
||

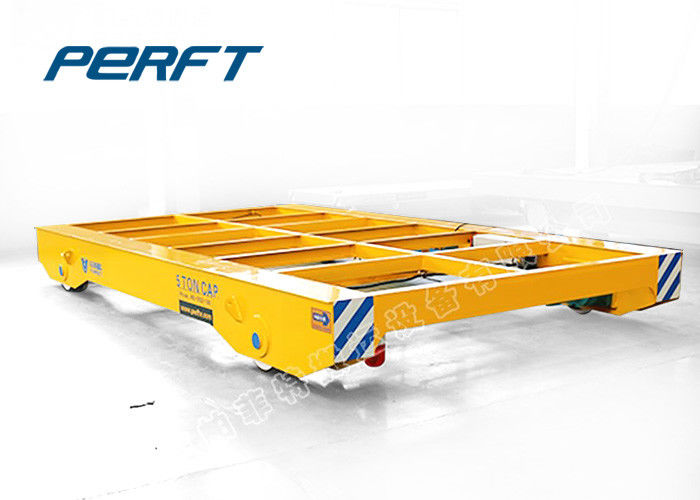

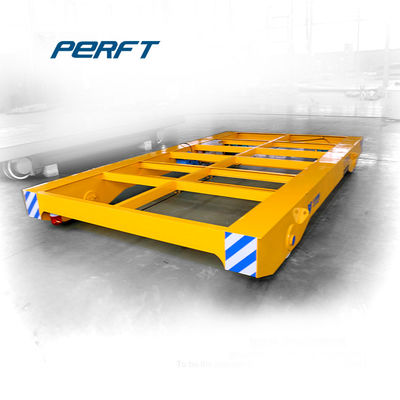

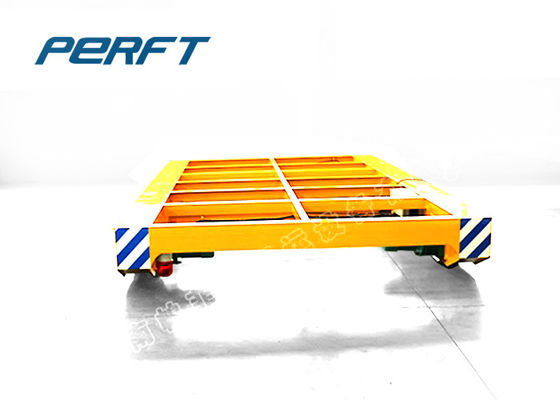

Abrasive Blasting Rail Transfer Cart , 5 Ton Cable Reel Powered Trolley Cart
The BTL Series 5ton Cable Reel Powered Abrasive Blasting Rail Transfer Cart is powered by dragging cable. The Car has been widely applied in these fields, such as construction, steel plant, shipyard, chemical industry,etc.The Series Rail Bogie can be applied in the occasion such as high temperature, anti-explosive environment. Simple structure and low cost make it very popular for crossing bay transportation. The Series Transfer Car is suitable for running distance less than 20m, high using frequency, low car-height demand. And the towline is alternative to prevent the cable from abrasion if necessary.
Advantage and Functions of the 5ton Cable Reel Powered Abrasive Blasting Rail Transfer Cart as Print Industry
1.The Rail Bogie is Anti-high temperature,Anti-high explosion;
2.The Car is powered by dragging cable;
3.With lifting holes, rial bogie is convenient to shipment;
4.The Railway Transportation has a feature of stable start, big starting power, long lifetime;
5.The Industry Transportation has simple structure and low cost;
6.The Factory Railway Car can run on the C-form track or S-form track;
7.Running distance of Cart is unlimited;
8.Safe and convenient operation is available for this Transfer Vehicle;
9.High using frequency and unmlimited using time for rial bogie.
Main Components of the 5ton Cable Reel Powered Abrasive Blasting Rail Transfer Cart as Print Industry
Technical parameters of the 5ton Cable Reel Powered Abrasive Blasting Rail Transfer Cart as Print Industry
| Rated load(t) | BTL-2t | BTL-5t | BTL-10t | BTL-20t | BTL-30t | BTL-40t | BTL-50t | BTL-63t | BTL-80t | BTL-100t | BTL-150t |
| Wheel base(mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Wheel quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor power(Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Running distance(m) | 25 | 25 | 25 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Rail inner gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Reference weight(t) | 2.3 | 3.3 | 3.8 | 5.5 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 |
26
|
Application and Usage
The 5ton Cable Reel Powered Abrasive Blasting Rail Transfer Cart is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
Packaging and shipping
The 5ton Cable Reel Powered Abrasive Blasting Rail Transfer Cart as Print Industry body is packed with tarp, the rial bogie wheel and parts will be packed with wooden case.For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the rial bogie is beyond above dimension, The Abrasive Blasting Rail Transfer Cart needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.
