Yellow Electric Rail Transfer Trolley For Steel Mill Transport , Load Capacity Of 60 T

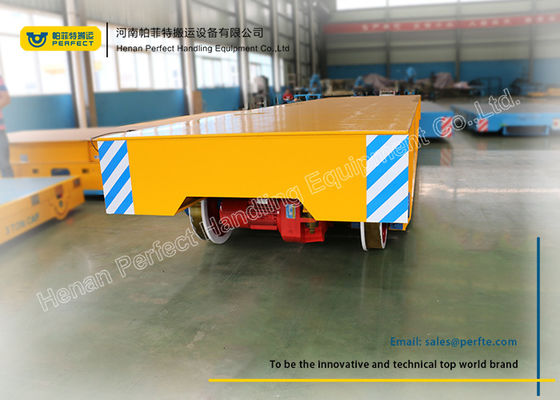

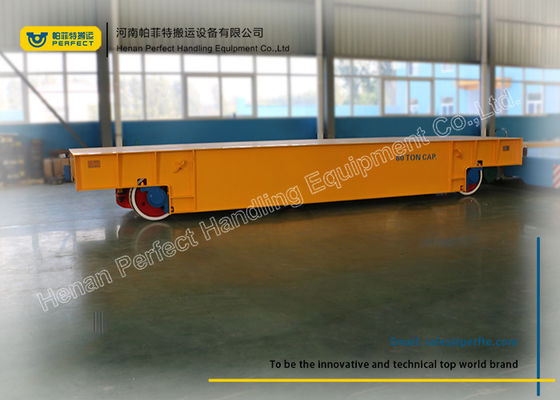

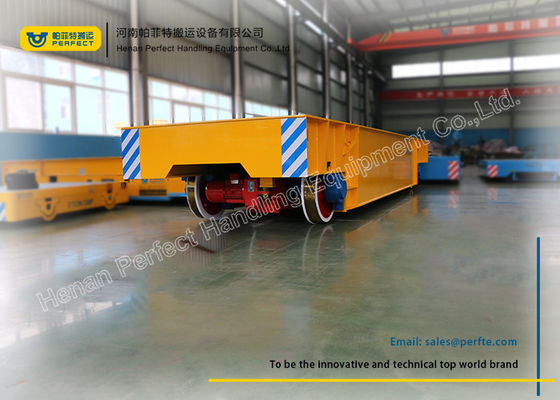

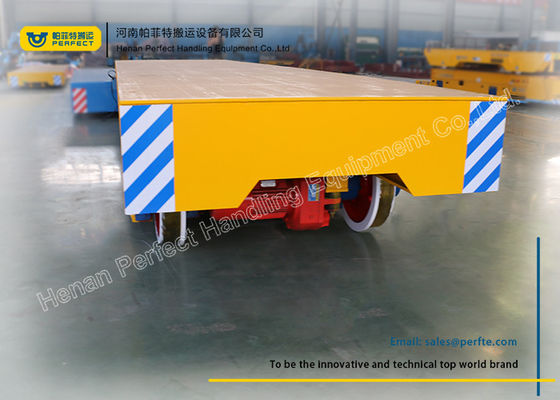

Large Image : Yellow Electric Rail Transfer Trolley For Steel Mill Transport , Load Capacity Of 60 T

Product Details:

Place of Origin:	China(mainland）
Brand Name:	electric transfer cart on rails for steel mill transport
Certification:	CE ISO SGS
Model Number:	electric transfer cart on rails for steel mill transport

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 2000~7500 set
Packaging Details:	trap and wooden case
Delivery Time:	20 work days after received balance payment
Supply Ability:	100 sets month

Contact Now

Detailed Product Description

Product Name:	Electric Transfer Cart On Rails For Steel Mill Transport	Application:	Transfer Materials
Item:	Cart	Color:	Customized
Material:	Q235	Capacity:	1-200T
High Light:	heavy duty die carts , powered trolley cart , Q235 Electric Rail Transfer Trolley

Yellow Electric Rail Transfer Trolley For Steel Mill Transport , Load Capacity Of 60 T

This electric transfer cart on rails for workshops transfer is usually used at ship yard, plant and factory, certain production line. The electric transfer cart on rails for workshops transfer is powered by trailing cable. The electric transfer cart on rails for workshops transfer was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. The electric transfer cart on rails for workshops transfer construction is based on our world renowned die transfer table for workshops transfers and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our electric transfer cart on rails for workshops transfer is available in a number of configurations specifically designed to suit the needs of our customers.

Technical Parameter of electric transfer cart on ra transfer table for workshops transfer

ils

Model		2t	20t	50t	100t	150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		0-20
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100
