Product Name: | Remote Control Operation Rail Transfer Flat Cart | Capacity: | 1-300T |
---|---|---|---|
Dimension: | Customized As Practical Needs | Color: | Customized |
Application: | Industrial Filed | Feature: | Easy Operation |
High Light: | electric transfer cart,load transfer trolley |

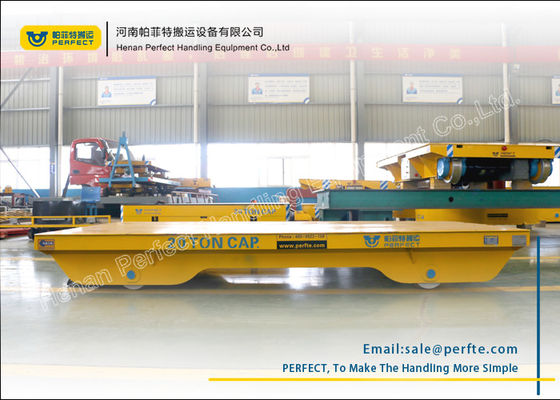

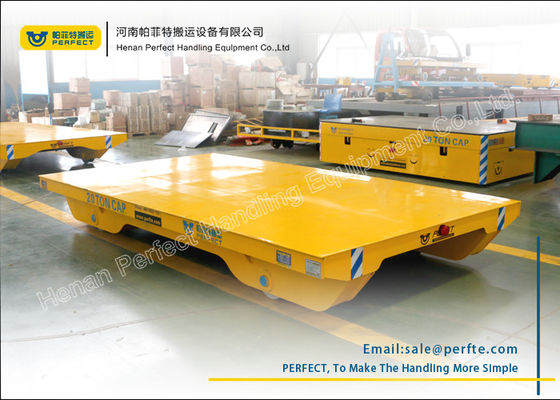

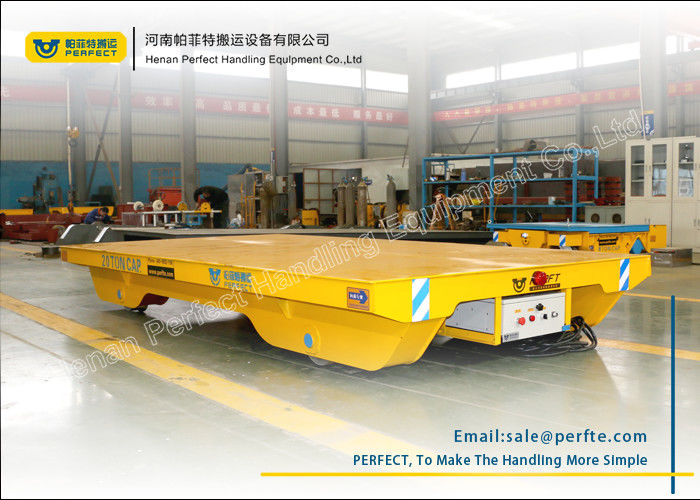

The BHX series transfer car is powered by the busbar. The alterative current is suppiled consistently to the pulling motor by slide knife taken from sliding contact line through electric contrql system , which makes the car start ,stop, move forward and relize other functions.The sale sliding contact line can be installed in the middle of the tracks or by the outside of the tracks or in the trench or under the roof of the plant .Positing fixture ,lifture, lifting platform, clamping device and other auxiliary device are optional to meet different demands on various occasions. The BHX series is suitable in inflammable environment and in high requency.
Model | BHX-2t | BHX-20t | BHX-50t | BHX-100t | BHX-150t | |
Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 |
