| Product Name: | 20T Heavy Duty Trackless Plant Trailer For Steel And Metal Material Handling | Material: | Carbon Steel |
|---|---|---|---|
| Running Speed(m/min): | 20 | Motor Power(Kw): | 3.5-15 |
| Ground Requirement: | Cement Floor | Wheel Base(mm): | 1500-1800 |
| Turnning Radius(mm): | 2501-5201 | Ground Clearance(mm): | 50 |
| High Light: | industrial transfer car,industrial motorized carts |
||
20T Heavy Duty Trackless Plant Trailer for steel and metal material handling
The BWP series 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling's supply power is battery,and no limitation of the running distance and running route.The PLC system makes the 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling start,stop,move background,turn around and realize other functions.Also, the hydraulic lifting device,V-shape,U-shape can be added of the 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling if necessary.
Advantages and functions of the 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling
1.Needn’t run via the rails, which gets rid of relying for the rails.
2.No damage to the cement ground,because of the rubber wheel Heavy Duty Trackless Plant Trailer.
3.Battery powered, and no distance route limitation.
4.Can turn to 360 degree and run freely of the cemment floor
5.PLC controlled,which is easy operation and run freely,go forward,back forward,turning,etc.
6.The battery Battery Capacity(Ah) and Battery Voltage(v) is 330,48 respectively.
7.The Turnning Radius(mm) is 2501-5200.
8.High transportation efficiency, saving manpower and material resources.
9.Material,color,table size and capacity is customizable
10.The die and molds can be added of the Trackless plant trailer

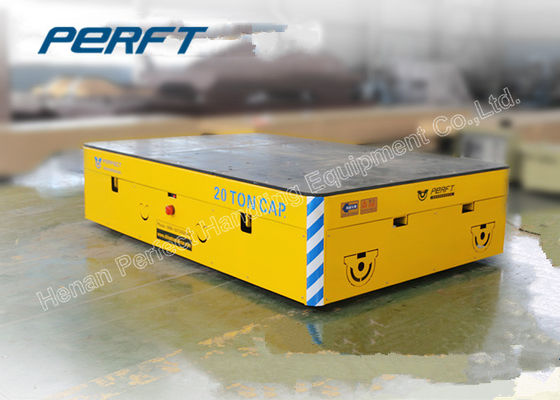

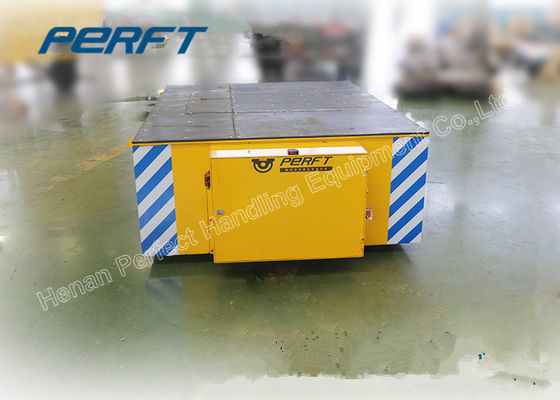

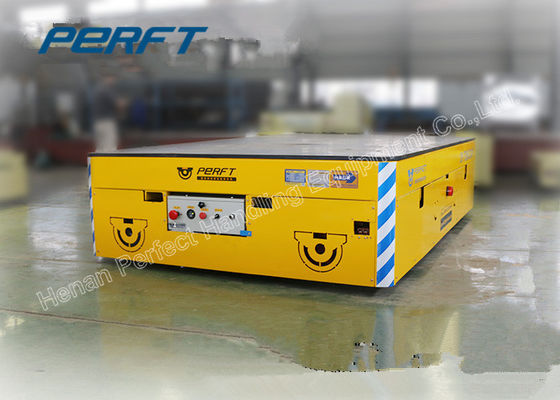

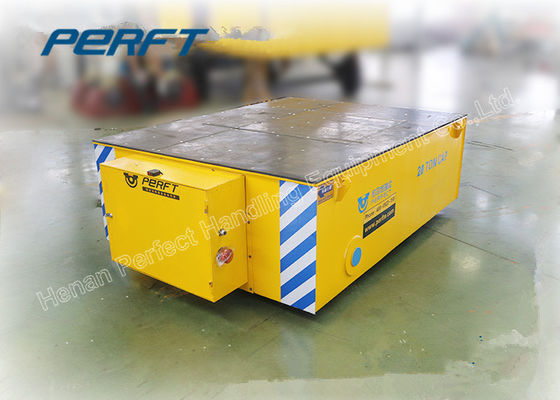

Detailed Image of 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling
The 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling consisted of power source,gear train,steel structure bearing frame,steering gear,running gear,control system and fault diagnosis module to better the Electric Trackless Transfer Flat Car.
Technical parameter table of 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
Application of the 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling
Stable and flexible during the turning in small space, we have optimized the steering mechanism, wheel press and frame rigidity to make it available for linkage of several trolleys. The 20T Heavy Duty Trackless Plant Trailer for steel and metal material handling has been highly approved by our customers.
