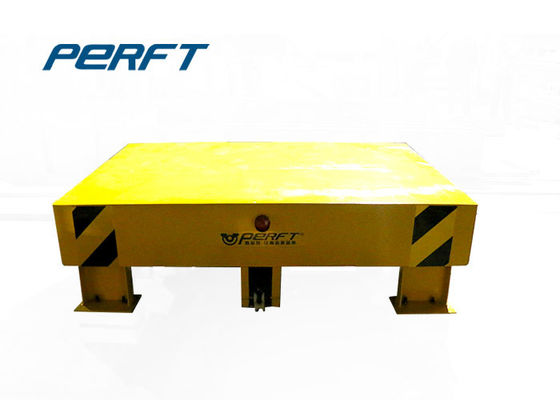

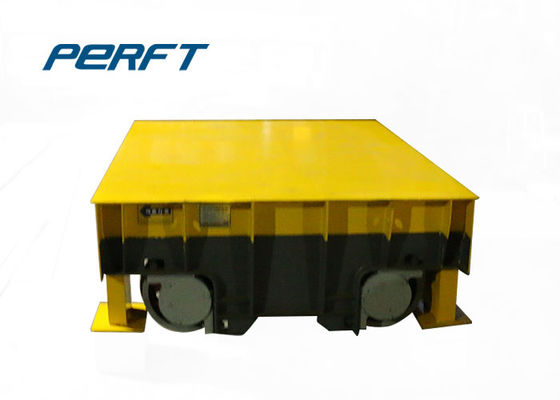

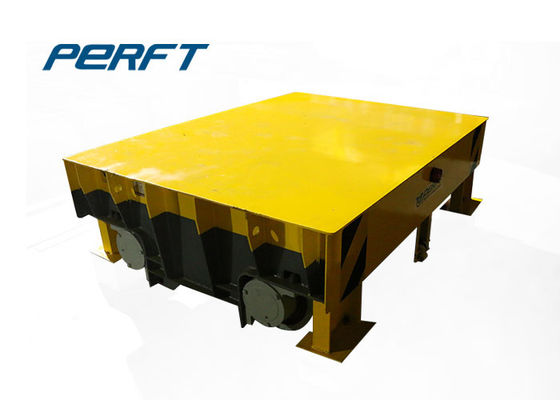

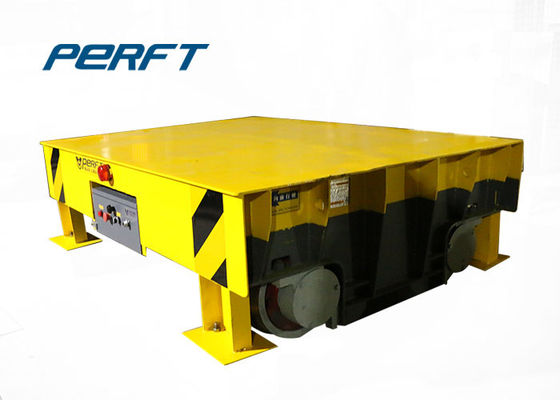

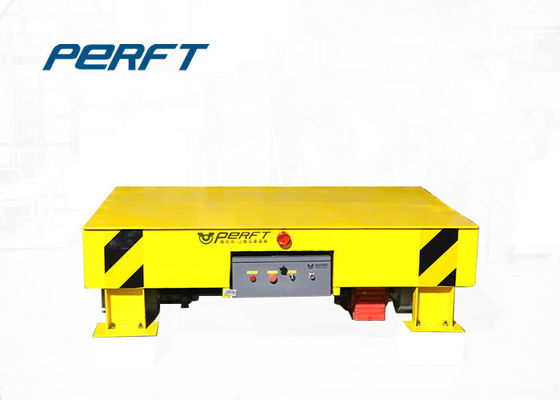

20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley

20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley
20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley 20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley 20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley 20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley 20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley

Large Image :  20 T Rail Power Die Transfer Cart Electric Low Voltage Industrial Transfer Trolley

Product Details:
Place of Origin: Xinxiang-Henan-China
Brand Name: perfte
Certification: ISO 9001,CE,CCPIT
Model Number: Industrial Transfer Trolley
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $7000-$12000
Packaging Details: The cart's body is packed with a tarp, and the wheel and parts of the cart will be packed with wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 60 set per month
Detailed Product Description
Rated Load (T): 1-150t Table Size: Customize
Running Speed: 0-20 Ground Requirement: Cement Floor
Control Mode: Push Button Control, Wireless Remold Motor Power (Kw): 1.5
Battery Capacity(Ah): 180-600 Charger Function: Automatic Charging
Ground Clearance: 50 Power: Low Voltage Rail
High Light:

heavy duty die carts

,

die handling equipment

,

20 T Rail Power Die Transfer Cart



20 t rail power cart electric low voltage rail industrial transfer trolley



Description



BDGS Series rail powered transfer car gets the power from rails. The power source 380V- 690V alternating current is transformed into 36V alternating-current and connecting respectively with 3 rails. The current collector gets the 36V alternating-current from rails and passes it to transfer car. The step-up transformer will transform the voltage from 36V to 380V and feed power to traction motor to make the car start, stop, move forward move backward. The series car can run on S shape or Arc shape rails. It is safe and flexible, but the rails need to be insulated in erection. When the running distance is longer than 70m, the transformer needs to be increased to raise the voltage.

rail power cart

Advantages



1. It is safe and flexible.
2. It has unlimited traveling distance.
3. Its
speed is adjustable .
4. low noise level when it running.
5. save cost,
6. eco-friendly
7. easy operation, it has
push button control and wireless remold.
8. easy maintenance
9. It suitable for high using frequency.



Application

The series transfer car is suitable for heavy-duty load, high using frequency and meets full automation demand.

rail power cart

Technical parameters:






Technical Parameters for KPDS Series Rail Carts Powered by Conducting Rail
Model KPDS-20t
Rated Load(t) 20
Table Size(mm) Length( L) 4000
  Width( W) 2200
  Height( H) 550
Wheel Base(mm) 2800
Rail Inner Gauge(mm) 1435
Wheel Diameter(mm) Ф350
Wheel Quantity 4
Ground Clearance(mm) 50
Running Speed(m/min) 20
Motor Power(Kw) 2.5
Transformer Power(KVA) 6.8
Transformer Quantity 1
Running Distance(m) 80
Max Wheel Load(KN) 77.7
Reference Weight(t) 5.9
Recommended Rail Model P24


Successful case



Our low-voltage track is exported to foreign countries. A steel company in Uzbekistan ordered us a 20-ton low-pressure rail truck. The ordering truck was mainly used to transport steel plates, transported from the workshop to the warehouse, and the total transportation distance was 150 meters. A total of two transformers were added to compensate for the rail buck. There is no cable drag in the workshop and there is a fixed transportation route, which increases safety. Convenient for other activities.
