Product Details:
Payment & Shipping Terms:
|
Warranty: | 24 Month Long Guarantee | Capacity: | 0-100 |
---|---|---|---|
Power Supply: | Maintenance-free Lead-acid Batteries | Running Routine: | Cement Floor |
Function: | Turn To 360 Degree | Slop: | < 6 Degrees |
Product Name: | Rail Powered Transfer Flat Cart Special For Traction And Dragging Of Large Machinery | ||
High Light: | heavy duty motorized transfer cart,transport large machines motorized transfer cart,100t motorized transfer cart |

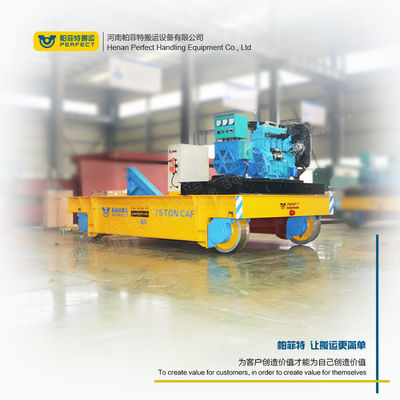

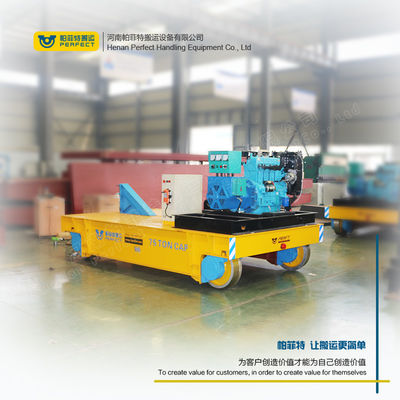

Heavy duty Rail powered Transfer cart use for Transport Large Machines
Product Descraptions
Series rail powered transfer car gets the power from rails.The power source 380v-690v alternating-current is transformed into 36v alternating current and connecting respectively with 3 rails. The current collector gets the 36v alternating -current from rails and passes it to transfer cart.
Modle
|
BXC-10T
|
BXC-30T
|
BXC-50T
|
BXC-80T
|
BXC-100T
|
BXC-150T
|
Table Size (m)
|
3.4*2.1*0.5
|
4.6*2.2*0.6
|
5.7*2.5*0.65
|
6.1*2.6*0.8
|
6.5*3.8*0.9
|
10*3.2*1.2
|
Power
|
Maintenance Free Battery
|
|||||
Rail inner Gauge
|
1435mm
|
1435mm
|
1435mm
|
1800mm
|
2000mm
|
2000mm
|
Wheel Dia.
|
350mm
|
400mm
|
500mm
|
600mm
|
600mm
|
600mm
|
Running Speed
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
0-25m/min
|
Motor Power
|
1.6kw
|
3.5kw
|
5kw
|
8kw
|
10kw
|
15kw
|
Battery Capacity
|
180Ah
|
250Ah
|
330Ah
|
400Ah
|
440Ah
|
600Ah
|
Battery Volatge
|
48v
|
48v
|
48v
|
72v
|
72v
|
72v
|
Max Wheel Load
|
42.6Kn
|
110.4Kn
|
174Kn
|
278.4Kn
|
343.8Kn
|
265.2Kn
|
Reference weight
|
4.2t
|
6.8t
|
8t
|
12.8t
|
14.6t
|
26.8t
|
Recommend Rail
|
P24
|
P38
|
P43
|
P50
|
QU100
|
QU100
|
About us
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons, our main products including BDG conductor rail transfer cart, BJT cable drum transfer cart, BHX safety sliding line transfer cart, BXC battery type transfer cart, BTL towed cable type transfer cart, BP non-power type transfer cart, BQY train towed type transfer cart, BWP trackless type and special type transfer cart, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.
